| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B6X2 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Aluminum Cover Plate , Rubber Bellows | GUOMAT NO.: | 2B6X2 |
|---|---|---|---|
| Bellows NO .: | Springride DF 6 X 2 | Firestone: | W01-R58-4070 - (6 X 2 Alu ) |
| Plate Dia.: | 153.5mm | Max Dia.: | 175mm |
| Pressure Ability: | 0.2-0.8 MPa | Air Inlet: | G1/2 |
| Stroke: | 115mm | ||
| High Light: | 2B6X2 Norgren Air Spring,PM/31062 Norgren Air Spring,175mm Industrial Air Spring |
||
GUOMAT 2B6X2 Air Bags Replace Norgren Air Spring Actuator PM/31062 Aluminum Plate
This 2B6X2 kind of air spring is produced by GUOMAT,which can replace Norgren PM/31062.
GUOMAT 2B6X2 is the same size as Norgren PM/31062.
GUOMAT 2B6X2 is good quality and the best price.

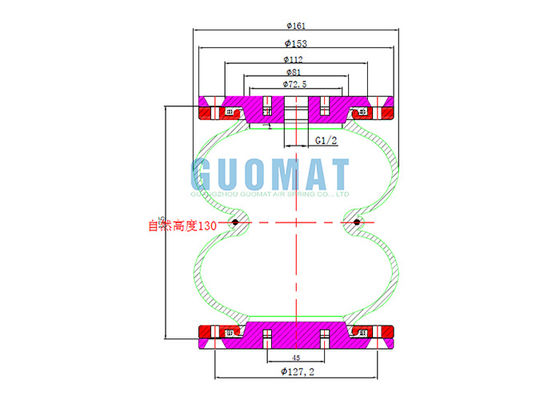

GUOMAT 2B6X2 Specifications and Detail Technical Parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcs X M8
Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M8
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
❸ Cover Plate
Top Cover Plate Diameter (Width): 153.5 mm
Bottom Cover Plate Diameter (Width): 153.5 mm
Material top and bottom plate:Aluminium
❹Rubber Bellows
Diameter max at 7 bar:175MM
Stroke of Rubber Bellows:80mm-195m
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
max load at 80 mm height and 8 bar:1415 daN
| 2B6X2 Material Code | Nitrile Butadiene Rubber (NBR) |
| 2B6X2 Maximum Ambient Temperature (°C) | 70 |
| Maximum Working Pressure (Bar) | 8 |
| Minimum Ambient Temperature (°C) | -40 |
| 2B6X2 Net Weight | 1.3 KG |
| Nominal Diameter | 6 MM |
| 2B6X2 Number of Convolutions | double |
| Port Size | G1/2 |
| Stroke Length | 115 MM |
| Cylinder Type | Standard |
| End Cap Material | Aluminum |
GUOMAT Air Spring Refer to Norgren AIR SPRINGS model air bellows:
| GUOMAT NO. | Model | Nominal Ø (inch) x convolutions | Maximum stroke (mm) | Air Port size |
| 1B 2 3/4x 1 | PM/31021 | 2 3/4x 1 | 20 | G1/4 |
| 2B 2 3/4x 2 | PM/31022 | 2 3/4x 2 | 45 | G1/4 |
| 3B 2 3/4x 3 | PM/31023 | 2 3/4x 3 | 65 | G1/4 |
| 1B 4 1/2x 1 | PM/31041 | 4 1/2x 1 | 140 | G3/8 |
| 2B 4 1/2x 2 | PM/31042 | 4 1/2x 2 | 280 | G3/8 |
| 1B 6x 1 | PM/31061 | 6x 1 | 155 | G1/2 |
| 2B 6x 2 | PM/31062 | 6x 2 | 155 | G1/2 |
| 1B 8x 1 | PM/31081 | 8x 1 | 95 | G3/4 |
| 2B 8x 2 | PM/31082 | 8x 2 | 185 | G3/4 |
| 1B 9 1/4x 1 | PM/31091 | 9 1/4x 1 | 105 | G3/4 |
| 2B 9 1/4x 1 | PM/31092 | 9 1/4x 2 | 230 | G3/4 |
| 1B 12x 1 | PM/31121 | 12x 1 | 105 | G3/4 |
| 2B 12x 2 | PM/31122 | 12x 2 | 215 | G3/4 |
| 3B 12x 3 | PM/31123 | 12x 3 | 315 | G3/4 |

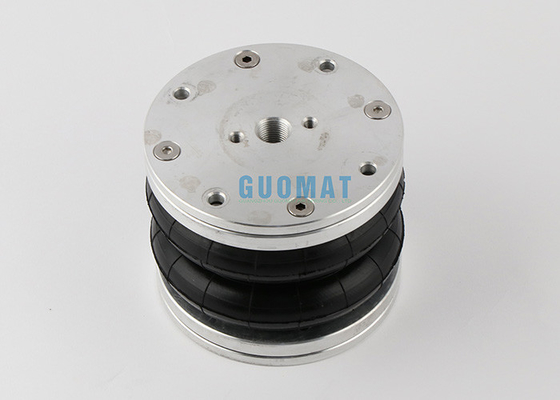

The real photos of GUOMAT 2B6X2:
