| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B4060 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Contitech: | FD40-10 |
|---|---|---|---|
| Gas Hole: | G1/4 | Screw Tooth: | M8X1.25 |
| Screw Center Distance: | 20 Mm | Cover Plate Diameter: | 90 Mm |
| Pressure Ability: | 0.2-0.8 M Pa | Rubber Bellows Natural Height: | 145 Mm |
| High Light: | 145mm Contitech Air Suspension Spring,145mm Industrial Air Spring,FD40-10 Industrial Air Spring |
||

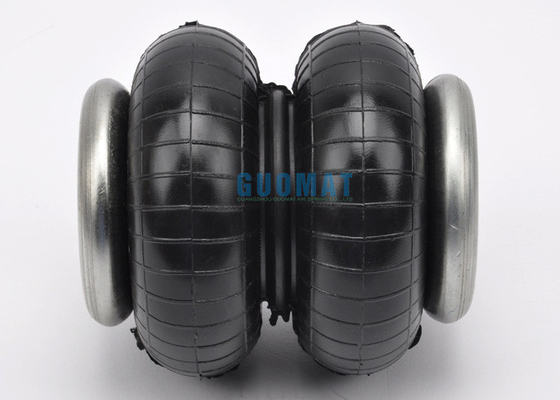

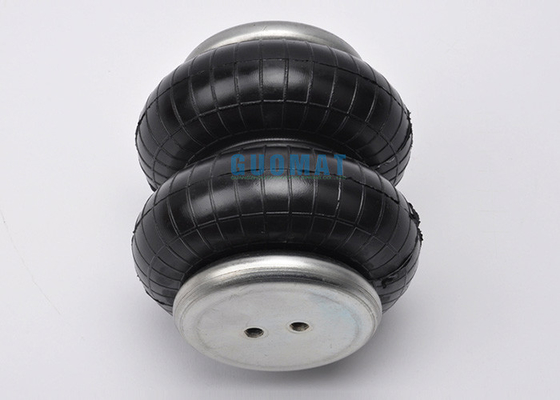

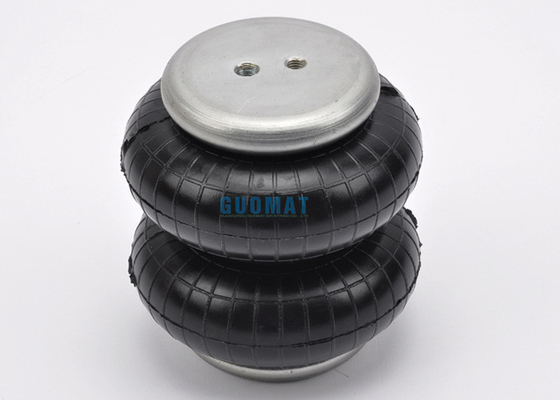

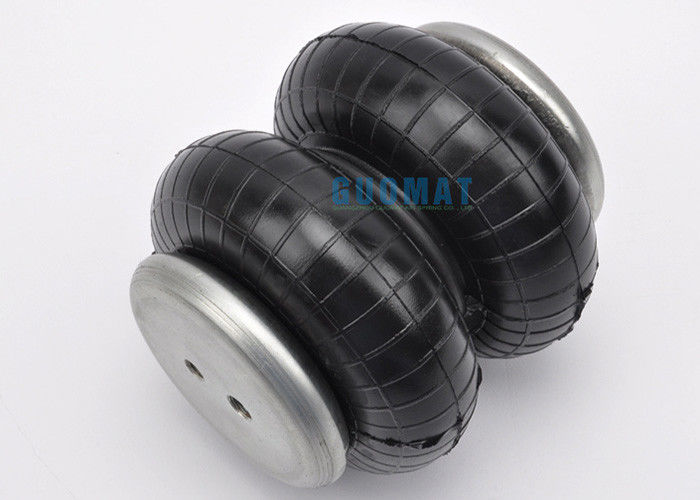

Contitech Air Suspension FD40-10 Refer to GUOMAT 2B4060 Single Industrial Air Spring
This2B4060 kind of air spring is produced by GUOMAT,which can replace Contitech FD40-10.
GUOMAT 2B4060 is the same size as Contitech FD40-10.
GUOMAT 2B4060 is good quality and the best price.
GUOMAT 2B4060 Cross OEM:
GUOMAT NO.:2B4060
Contitech Air Spring: FD 40-10
Contitech Parts NO.:FD 40-10 CI
Contitech Parts NO.:FD40-10
Double Convolution Air Actuator
M8: max. 25 Nm
G1/8: max. 25 Nm
Type Order No. Rubber bellows only 72586 with crimped plates,
G1/8 air inlet 10 mm excentrical 2682001000 with stainless steel crimped plates,
G1/8 air inlet 0 mm excentrical 61755
Specification of GUOMAT 2B4060:
❶Nut/blind nut
Top plate screw (nut) teeth: 2 X M8X1.25
The screw center distance of the top cover plate: 20 mm
Screw (nut) teeth of the bottom cover plate: 2 x M8X1.25
The screw center distance of the bottom cover: 20 mm
❷Air hole/air inlet/air fitting
Air hole/air inlet: G1/8 air inlet and nut combination
❸cover
Top plate diameter (width): 90 mm
Diameter of bottom cover (width): 90 mm
Bell rubber bellows
Natural diameter of rubber bellows: 125mm
Natural height of rubber bellows: 145 mm
❺Bumper block/bumper block
No bumper
❻Belt loop/Belt loop
With belt hoop: a belt hoop
Pictures show the information includes:
Technical data
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values
| Double Convolution Air Spring | |||||||
| 2B 40 10 | FD 40-10 | 1,95 | 3,2 | 2,7 | 2,7 | 160 | 160 |
| 2B 70 13 | FD 70-13 | 3,1 | 5 | 2,5 | 2,5 | 175 | 180 |
| 2B 110 15 | FD 110-15 | 5,6 | 9,2 | 2,2 | 2,1 | 175 | 215 |
| 2B 120 17 | FD 120-17 | 6,5 | 10,6 | 2 | 2 | 190 | 230 |
| 2B 120 20 | FD 120-20 | 7,8 | 12,7 | 1,8 | 1,7 | 205 | 235 |
| 2B 138 18 | FD 138-18 | 6,9 | 11,2 | 2 | 2 | 200 | 245 |
| 2B 200 19 | FD 200-19 | 9 | 14,5 | 1,9 | 1,9 | 210 | 265 |
| 2B 200 22 | FD 200-22 | 10,3 | 16,5 | 1,7 | 1,6 | 220 | 265 |
| 2B 200 25 | FD 200-25 | 10,2 | 16,5 | 1,7 | 1,7 | 254 | 275 |
| 2B 210 22 | FD 210-22 | 11,6 | 19,4 | 1,8 | 1,7 | 220 | 300 |
| 2B 330 22 | FD 330-22 | 16,7 | 27,6 | 1,8 | 1,7 | 240 | 340 |
| 2B 412 18 | FD 412-18 | 18,3 | 30 | 1,8 | 1,8 | 220 | 350 |
| 2B 530 22 | FD 530-22 | 25,8 | 42 | 1,8 | 1,7 | 250 | 400 |
| 2B 530 30 | FD 530-30 | 29,3 | 48,2 | 1,6 | 1,5 | 260 | 415 |
| 2B 530 35 | FD 530-35 | 31,6 | 51,2 | 1,5 | 1,4 | 285 | 420 |
