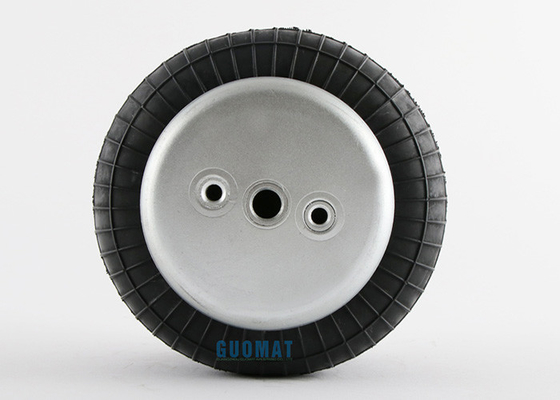

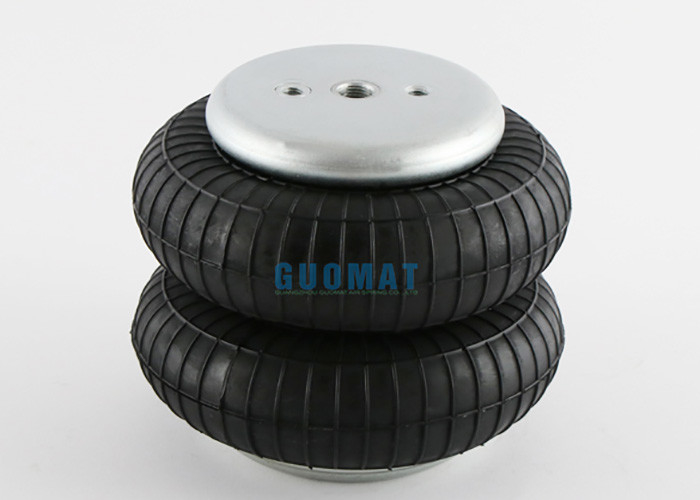

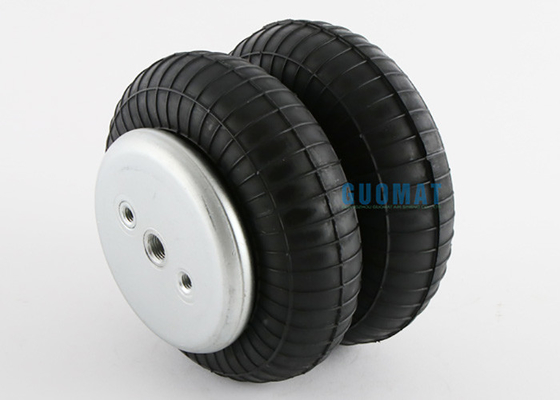

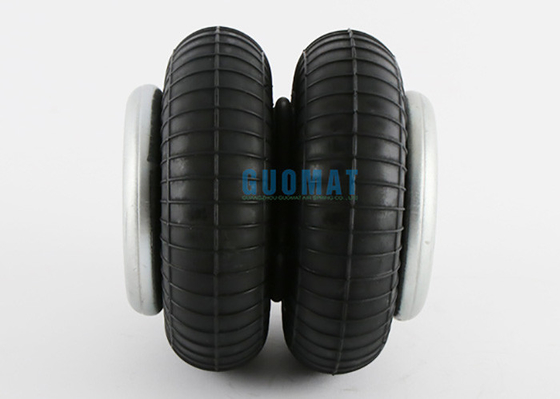

FD70-13 Continental Contitech Air Spring GUOMAT NO. 2B7070

FD70-13 Continental Contitech Air Spring GUOMAT NO. 2B7070

    • FD70-13 Continental Contitech Air Spring GUOMAT NO. 2B7070
    • FD70-13 Continental Contitech Air Spring GUOMAT NO. 2B7070
    • FD70-13 Continental Contitech Air Spring GUOMAT NO. 2B7070
    • FD70-13 Continental Contitech Air Spring GUOMAT NO. 2B7070
  • FD70-13 Continental Contitech Air Spring GUOMAT NO. 2B7070

    Product Details:

    Place of Origin: Guangdong,China
    Brand Name: GUOMAT
    Certification: ISO/TS16949:2009
    Model Number: 2B7070

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Packaging Details: strong carton box or as customers need
    Delivery Time: 2-8 work days
    Payment Terms: T/T, Western Union,Paypal or Others
    Supply Ability: 1000pcs/week
    Contact Now
    Detailed Product Description
    Material: Steel Cover Plate , Rubber Bellows Contitech: Fd 70-13
    Continental: Fd70-13 Firestone Style:: 25(255-1.5)
    Firestone: W01M586105 Gigant: 196027
    Pressure Ability: 0.2-0.8 MPa GUOMAT NO.: 2B7070
    MAX OD: 165 MM Srew: M8
    High Light:

    FD70-13 Continental Contitech Air Spring

    ,

    165MM Continental Contitech Air Spring

    ,

    196027 Industrial Air Spring

    FD70-13 Continental Contitech Air Spring GUOMAT NO. 2B7070 For Correction Instrument





    GUOMAT 2B7070 is produced by the GUOMAT factory.
    GUOMAT air spring 2B7070 dual scroll airbag can completely replace contitech FD 70-13 1/4 M8; the technical parameters of GUOMAT 2B7070 are the same as contitech FD 70-13, describing that GUOMAT 2B7070 gas scroll industrial air spring will use no internal Flexible member of molded beads. The number of rubber bellows is 25, and the flexible piece is connected to the end of the bracket by clamping the material between the top plate and the bottom plate, and then adjusting it to a suitable diameter.





    GUOMAT 2B7070 OEM COMPLETE Number
    GUOMAT NO. 2B7070
    contitech fd 70-13 contitech
    contitech FD 70-13 1/4 M8
    fd 70 13
    fd 7013
    fd7013 ci
    contitech fd 70-13 ci
    continental fd 70-13 ci
    Firestone Style :25(255-1.5)
    Firestone No.:W01-M58-6105
    Manufacturer Original-part no.
    Model Gigant 196027





    GUOMAT 2B7070 Specifications and Detail Technical Parameters



    ❶Nut/blind nut

    Top plate screw (nut) teeth: 2 X M8X1.25

    The screw center distance of the top cover plate: 44.5 mm

    Screw (nut) teeth of the bottom cover plate: 2 x M8X1.25

    The screw center distance of the bottom cover plate: 44.5 mm

    ❷Air hole/air inlet/air fitting

    Air hole/air inlet: G1 / 4

    ❸cover

    Top plate diameter (width): 105 mm

    Diameter (width) of the bottom cover: 105 mm

    Bell rubber bellows

    Natural diameter of rubber bellows: 146 mm

    Maximum diameter of rubber bellows: 165 mm

    Installation space diameter: 180 mm

    Natural height of rubber bellows: 162 mm

    ❺Bumper block/bumper block

    No bumper

    ❻Belt loop/Belt loop

    With belt hoop: a belt hoop





    One pc of GUOMAT 2B7070 Package size and weight:



    Net Weight Gross Weight Length
    (cm)
    Width
    (cm)
    Height
    (cm)
    Measurememt
    (cbm)
    1.6 2.0 16 16 16 0.01





    Note:



    We always have goods in stock.



    This air spring is generally in stock. The products produced by GUOMAT conform to national standards. The warranty is one year. Any quality problem can be exchanged within one year.



    There is no limit to the number of purchases. Small quantities are generally sent by international express, such as DHL, FEDEX, UPS, TNT, etc. The time is also very fast, usually within 3-7 working days to receive the goods.





    Pictures Show The Information Includes:



    Technical data

    Vibration isolation - dynamic characteristic values

    Pneumatic application - static characteristic values



    FD70-13 Continental Contitech Air Spring GUOMAT NO. 2B7070 0







    Double Convolution Air Spring Calculation inquiry:





    GUOMAT NO. Product designation Load capacity at Natural frequency at Recommended operating height Required installation diameter
    5 bar 8 bar 5 bar 8 bar
    Double Convolution Air Spring
    2B 40 10 FD 40-10 1,95 3,2 2,7 2,7 160 160
    2B 70 13 FD 70-13 3,1 5 2,5 2,5 175 180
    2B 110 15 FD 110-15 5,6 9,2 2,2 2,1 175 215
    2B 120 17 FD 120-17 6,5 10,6 2 2 190 230
    2B 120 20 FD 120-20 7,8 12,7 1,8 1,7 205 235
    2B 138 18 FD 138-18 6,9 11,2 2 2 200 245
    2B 200 19 FD 200-19 9 14,5 1,9 1,9 210 265
    2B 200 22 FD 200-22 10,3 16,5 1,7 1,6 220 265
    2B 200 25 FD 200-25 10,2 16,5 1,7 1,7 254 275
    2B 210 22 FD 210-22 11,6 19,4 1,8 1,7 220 300
