| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | GF40/60-1 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Bellows | GUOMAT: | GF40/60-1 |
|---|---|---|---|
| Warranty: | 12 Months | Net Weight: | 0.5 KG |
| Other Name: | Air Spring | Pressure Ability: | 0.2-0.8 M Pa |
| Gross Weight: | 1.0 KG | Flange Ring: | Without |
| Connection Method: | Flange Connection | ||
| High Light: | 80MM Single Industrial Air Spring,0.8 MPa Industrial Air Spring,GF40/60-1 Rubber bellows |
||

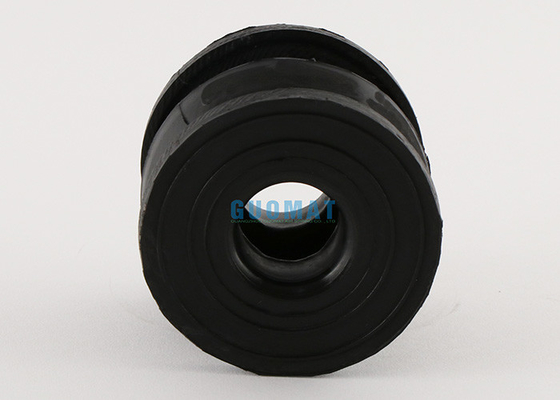

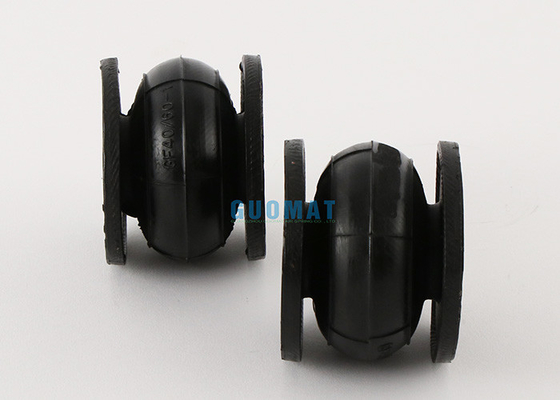

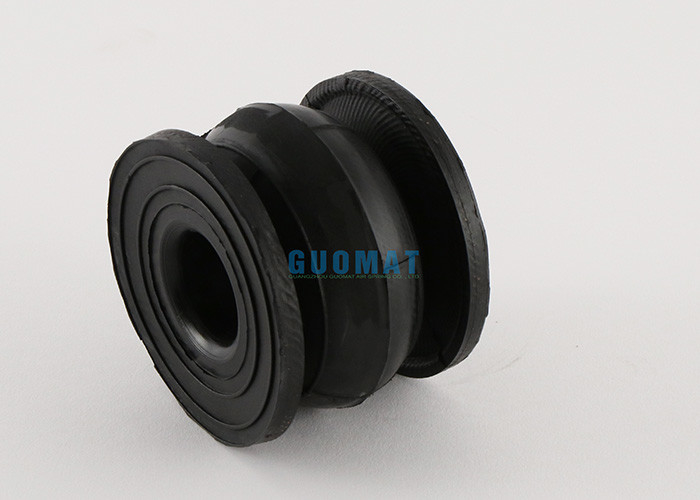

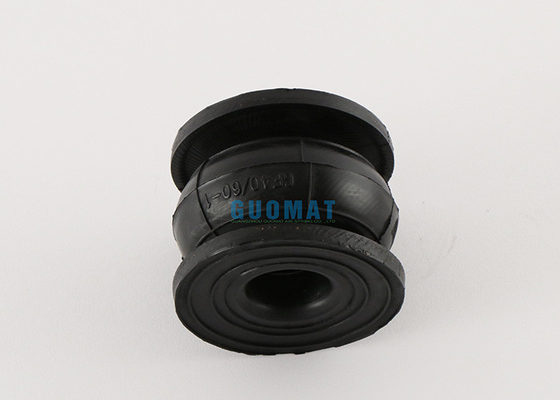

Single Industrial Air Spring GF40/60-1 Replace Contitech FS 22-3 DI CR Rubber Bellows MAX DIA 80MM
GUOMAT GF40/60-1 is produced by GUOMAT factory.GUOMAT air spring GF40/60-1 double scroll airbag can completely replace contitech FS 22-3 DI CR; the technical parameters of GUOMAT GF40/60-1 are the same as contitech FS 22-3 DI CR, indicating GUOMAT GF40/60-1 gasScroll industrial air springs will not use internal flexible parts of molded beads.The number of rubber bellows is 25, and the flexible piece is connected to the end of the bracket by clamping the material between the top plate and the bottom plate, and then adjusting it to a suitable diameter.

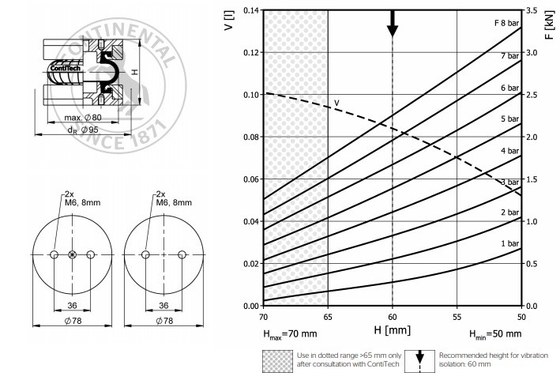

Guomat GF40/60-1 Single Convoluted Air Spring Specifications
❶Nut / Blind Nut
The Long Of The Nut:8 mm
Top Cover Plate Screw number: 2pcsXM6-8MM
Bottom Cover Plate Screw number : 2pcsXM6-8MM
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPTF
❸ Cover Plate
Top Cover Plate Diameter: 78 mm
Bottom Cover Plate Diameter: 78 mm
❹Rubber Bellows
In 0.7 M pa,Rubber Bellows Diameter : 80 mm
Rubber Bellows Natural Height :70 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
Without Girdle Hoop
The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects
❶Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate
❷ Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.
❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.
❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.
❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.
❻ Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.
| Flange connection type of air spring model comparison table | |||
| GUOMAT NO. | Contitech NO. | GUOMAT NO. | Contitech NO. |
| FS 22-3DICR | FS 22-3 DI CR | FS960-12RS | FS 960-12 RS |
| FS 44-5DICR | FS 44-5 DI CR | FS1330-11RS | FS 1330-11 RS |
| FS 76-7DICR | FS 76-7 DI CR | FS1710-12RS | FS 1710-12 RS |
| FS 76-7DSCR | FS 76-7 DS CR | FS2870-16RS | FS 2870-16 RS |
| FS 138-8DS | FS 138-8 DS | FS5450-16RS | FS 5450-16 RS |
| FS 210-10DS | FS 210-10 DS | FD960-22RS | FD 960-22 RS |
| FS 412-10DS | FS 412-10 DS | FD1120-30RI | FD 1120-30 RI |
| FS 614-13DS | FS 614-13 DS | FD1330-25RS | FD 1330-25 RS |
| FS 816-15DS | FS 816-15 DS | FD1710-25RS | FD 1710-25 RS |
| FD 22-4DICR | FD 22-4 DI CR | FD1730-40RI | FD 1730-40 RI |
| FD 44-10DICR | FD 44-10 DI CR | FD2380-24RS | FD 2380-24 RS |
| FD 76-14DICR | FD 76-14 DI CR | FD2470-40RI | FD 2470-40 RI |
| FD 76-14DSCR | FD 76-14 DS CR | FD2870-30RS | FD 2870-30 RS |
| FD 138-18DS | FD 138-18 DS | FD5450-28RS | FD 5450-28 RS |
| FD 209-21DS | FD 209-21 DS | FT960-34RS | FT 960-34 RS |
| FD 210-22DS | FD 210-22 DS | FT1330-35RS | FT 1330-35 RS |
| FD 412-18DS | FD 412-18 DS | FT1710-38RS | FT 1710-38 RS |
| FD 614-26DS | FD 614-26 DS | FT2870-45RS | FT 2870-45 RS |
| FD 816-30DS | FD 816-30 DS | FT5450-44RS | FT 5450-44 RS |
| FT 22-6DICR | FT 22-6 DI CR | ||
| FT 44-15DICR | FT 44-15 DI CR | ||
| FT 76-20DICR | FT 76-20 DI CR | ||
| FT 76-20DSCR | FT 76-20 DS CR | ||
| FT 138-26DS | FT 138-26 DS | ||
| FT 210-32DS | FT 210-32 DS | ||
| FT 412-32DS | FT 412-32 DS | ||
| FT 614-36DS | FT 614-36 DS | ||
| FT 816-40DS | FT 816-40 DS | ||
