| Place of Origin: | Guangdong,China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B8-850 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Stainless Steel &Natural Rubber | Goodyear: | 2B8-850 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 5.0 Kg |
| Other Name: | Air Suspension | Pressure Ability: | 0.2-0.8 M Pa |
| Max OD: | 223.5 Mm | Design Height Range: | 178mm-203mm |
| Air Fitting Size: | 1/4 C | ||
| High Light: | 2B8-850 Goodyear Rubber Bellows,223.5mm Goodyear Rubber Bellows |
||

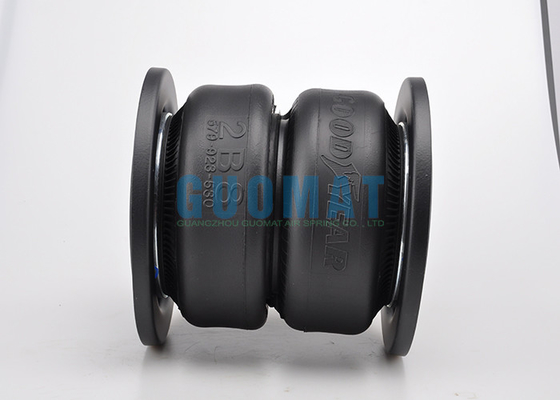

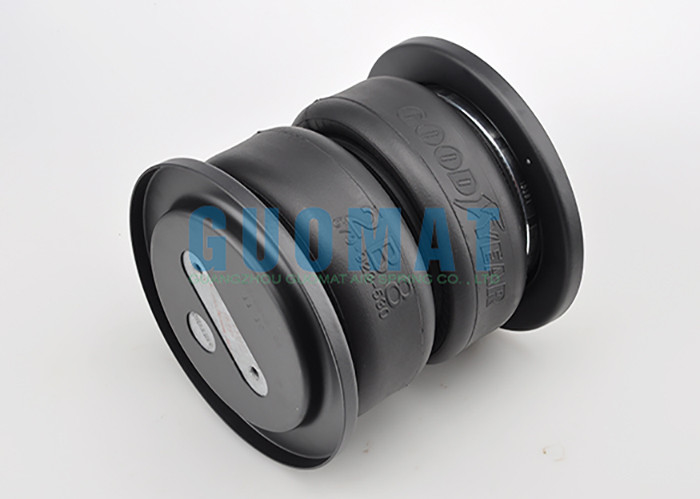

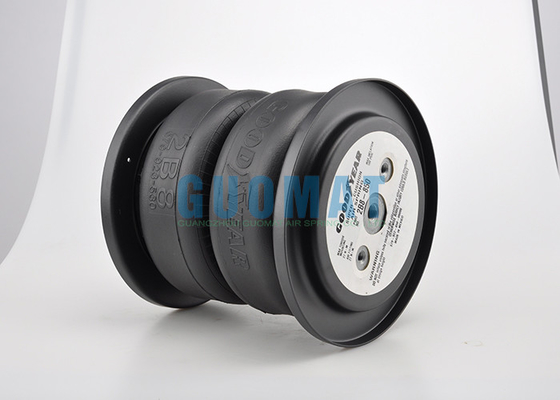

2B8-850 Goodyear Rubber Bellows Double Tables Industrial Air Spring Platforms Replace Firestone W01-M58-6353
The Goodyear brand is one of the three major brands in the world, which is well known.
The quality of this air spring is very good. Many customers use it. After using it, it can take several years to replace it.
2B8-850 This air spring is imported and imported by the American brand Hidee.The bladder number is 579-923-530.
It is a real original imported thing produced by a factory in Mexico.
There are also many customers using this on various shock absorption equipment or lifting equipment.
OEM Original Manufacturer:
Goodyear Original: 2B8-850
2B8-850 Goodyear Cross OEM
Firestone Part Number:W01-M58-6353
Firestone Part Number:W01 M58 6353
Firestone Part Number:W01M586353
Conti Tech Part Number::FD 120-20 CI G 1/4
Conti Tech Part Number::FD120-20 CI G 1/4
Goodyear Part Number: 2B8-850;
Goodyear Part Number: 2B8 850;
Goodyear Part Number: 2B8850
2B8-850 specifications in Inches:
Max OD @100 PSIG (Inches):8.8
Design Load Range (pounds):440 - 2,700
Design Height Range (Inches):7.0 - 8.0
Usable Stroke (Inches):7.2
Min Comp Height (Inches):2.9
Max Ext Height (Inches):10.1
Bumper Included:NO
Air Fitting Size (Inches):1/4 C
2B8-850 Specifications in Metric:
| Maximum Diameter @ 7 Bar (mm) | Goodyear 2B8-850 ISOLATOR |
| 218 | Design Height (mm) |
| Maximum Height (mm) | 203 |
| 76 | Load (at Design Height) at: 3 Bar (kN) |
| Maximum Stroke (mm) | 3.8 |
| 145 | Load (at Design Height) at: 5 Bar (kN) |
| Minimum Usable Height (mm) | 6.6 |
| 221 | Load (at Design Height) at: 7 Bar (kN) |
| Force in kN @ 5 Bar at Stroke of 25 mm | 9.4 |
| 10.9 | Natural Frequency (@5 Bar)(fn(Hz) |
| Force in kN @ 5 Bar at Stroke of 50% of Max Stroke | 1.9 |
| 9.1 | % of Isolation at Forced Frequency 7 Hz |
| Force in kN @ 5 Bar at Stroke of Maximum Stroke | 92.1 |
| 5.7 | % of Isolation at Forced Frequency 13 Hz |
| Material | 98.2 |
| 2-Ply Standard Cord | % of Isolation at Forced Frequency 25 Hz |
| END CLOSURE DETAILS | 99.5 |
| Bead plate Type | Dim. A (Blind Nut Centers) (mm) |
| 1 | 70 |
