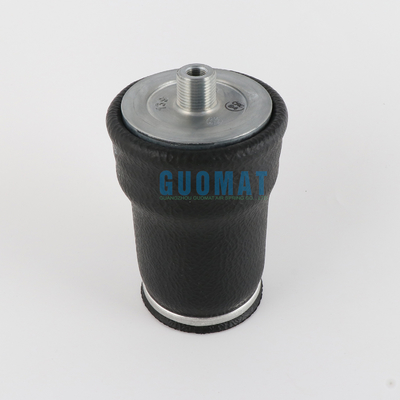

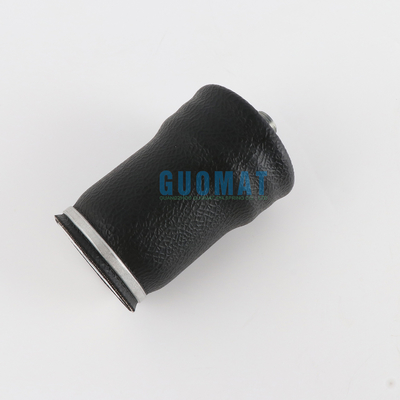

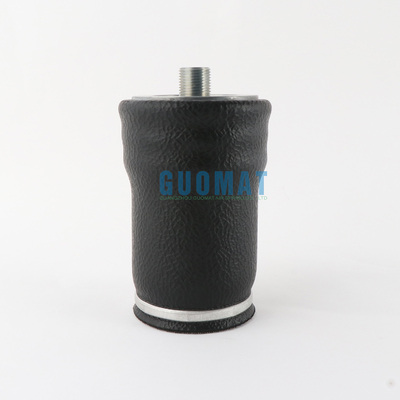

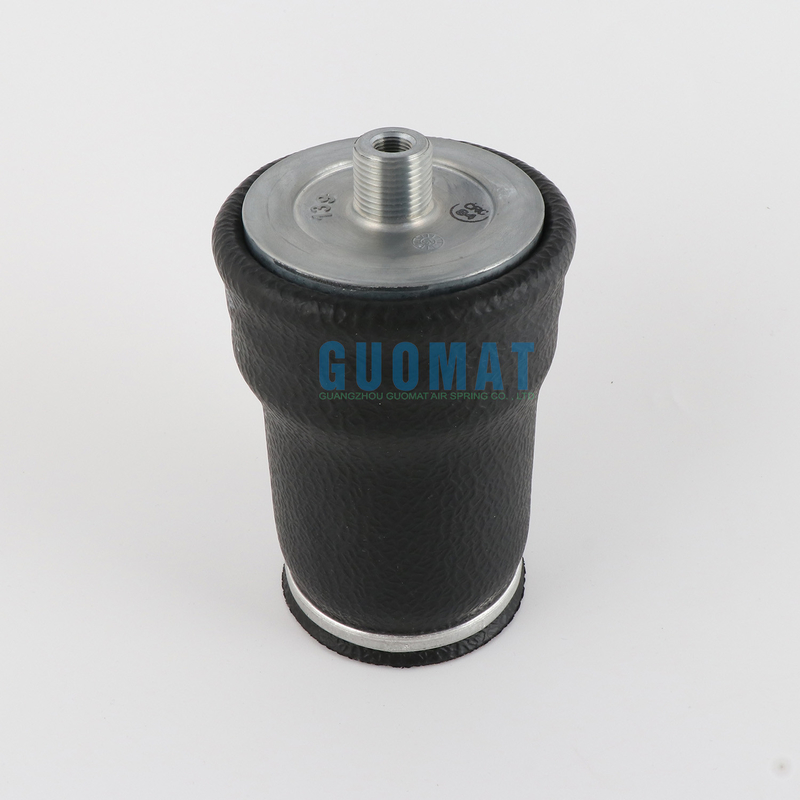

1S4-007 Goodyear Air Spring Sleeve Firestone W02-358-7031 For Mac-k truck 227QS33 Seat

1S4-007 Goodyear Air Spring Sleeve Style Firestone W02-358-7031 For Mac-k truck 227QS33 Seat


Product description of 1S4-007 Goodyear Air Spring:

Goodyear sleeve airbag springs have many applications. The most common uses are passenger car springs and trucks, isolators and springs for truck cab and seat springs, and many common industrial applications. 1S4-007 sleeve air spring is durable and the length of service life.
Goodyear sleeve air springs will use flexible parts instead of internally molded weld beads. The flexible part is connected to the end of the holder by clamping the material between the end and the outer crimping ring, and then adjusting the outer crimping ring to an appropriate diameter.


1S4-007 Goodyear Air Spring Cross OEM:

Goodyear 1S4​​-007, AS7031, Firestone 7031, Firestone W02-358-7031, Link 1101-0020, Mac-k truck 227QS33, Goodyear 1S4​​-007, Duraform S9383, Triangle 5001, Euclid E-FS7031, Euclid FS7031, PAI FAS-4906.ASC-08-7-139, ASB-08-5-007, 7014, NBD-10082, 7049, NBD-10549, 7.00", green. Same as Dayton 453-7031, Dayton 453-7031L, Automann ABSZ70-7031,





Goodyear #: 1S4-007
Top Plate Hole/Stud Qty: 1
Top Plate Dia: 2.65 inch
Top Plate C to C Diameter: N/A
Bottom Plate Hole Stud Qyt: 1
Bottom Plate Dia: 2.87 inch

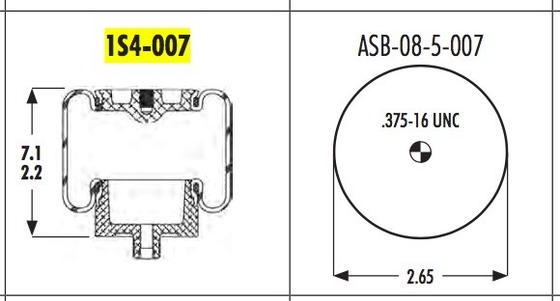

Min Height: 2.2 inch
Max Height: 7.1 inch

Specifications
Goodyear # 1S4-007 Sleeve Style Air Spring
Single Convolute
4" Nominal Outside Working Diameter
7.1" Extended Height
Top Measurements: 2.65" Diameter, 1 Tapped Hole on Top Retainers 3/8-16, on Pistons - 1/2-13
Bottom Measurements: 2.875" Diameter, 1 Single Centered Stud, 0.750-16 UNF-2A Outside, 0125-27 NPTF Inside
Piston ASC-08-7-139
ASB-08-5-007
