Place of Origin: | Guangdong,China |
Brand Name: | GUOMAT |
Certification: | ISO/TS16949:2009 |
Model Number: | 2B8x2 |
Minimum Order Quantity: | 1pc |
---|---|
Packaging Details: | strong carton box or as customers need |
Delivery Time: | 2-8 work days |
Payment Terms: | T/T, Western Union,Paypal or Others |
Supply Ability: | 1000pcs/week |
Material: | Steel Cover Plate , Rubber Bellows | GUOMAT: | 2B8x2 |
---|---|---|---|
Bellows NO .: | Springride DF 8 X 2 | Firestone: | (8 X 2 Alu ) |
Plate Dia.: | 153.5mm | Max Dia.: | 175mm |
Pressure Ability: | 0.2-0.8 MPa | Air Inlet: | G1/2 |
Stroke: | 115mm | Norgren: | M31082 |
High Light: | M31082 Norgren Industrial Air Spring,175mm Industrial Air Spring |

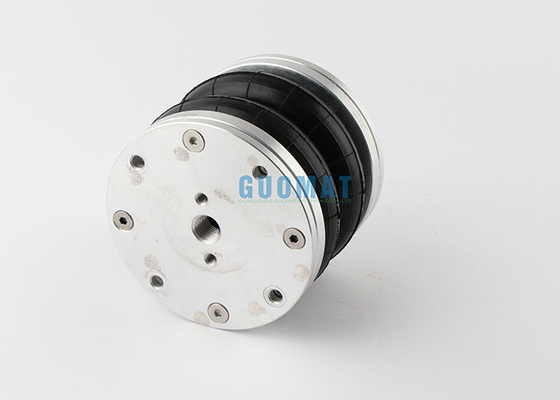

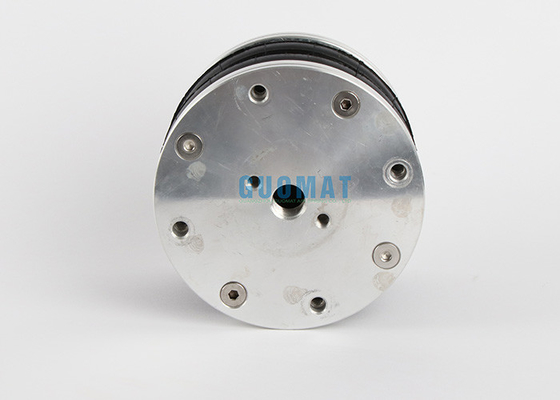

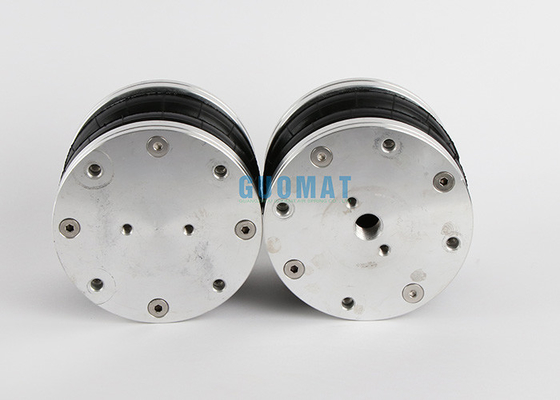

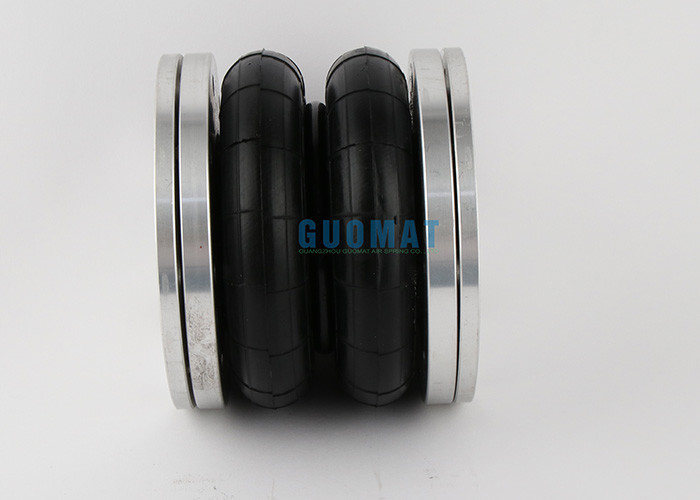

M31082 Norgren Industrial Air Spring 8" Diameter, 175mm Stroke Refer to GUOMAT 2B8x2
Description:
GUOMAT NO. 2B8x2 this kind of double Convoluted Air Spring which is produced by GUOMAT. It can replace Norgren Complete Number M/31082 ;Norgren bellows Number 8x2 and Firestone Complete Number WO1-R58- -4055. GUOMAT NO. 2B8x2 air spring not only use in truck and trailer,but also as Vibratory conveyors,such as Large drying machines,Centrifugal separators,Coordinate measuring tables and machinery and Commercial laundry machines.
Item: GUOMAT 2B8x2
Stroke: 175 mm
Port size: G1 / 2
Nominal diameter: 8"=203.2mm
Convolution number: 2
Frictionless operation
No maintenance or lubrication required
Ideal for short stroke, high pressure applications
High vibration isolation level
Easy to install
Operation mode: Single action
GUOMAT 2B8x2 Specifications and Detail Technical Parameters
❶Nut/blind nut
Top plate screw (nut) teeth: 4 X M8
Screw (nut) teeth of the bottom cover plate: 4 x M8
❷Air hole/air inlet/air fitting
Air hole/air inlet: G1 / 2
❸cover
Top plate diameter (width): 153.5 mm
Diameter (width) of the bottom cover plate: 153.5 mm
Material top and bottom plate: aluminum
Bell rubber bellows
Maximum diameter at 7 bar: 175MM
Rubber bellows stroke: 80mm-195m
❺Bumper block/bumper block
No bumper
❻Belt loop/Belt loop
Attached belt: a belt
Maximum load at 80 mm height and 8 bar: 1415 daN
OEM References:
GUOMAT 2B8x2
Norgren: M/31082
Norgren:M 31082
Norgren:M31082
Firestone: WO1-R58- -4055
Firestone:W01 R58 4055
Firestone:W01R584055
Firestone Style: 8" x2/8"x2/8x2
ContiTech: FD 138-181/2 M10
ContiTech: FD 138-18 DS 1/2 M10
ContiTech: FD 138-18 DS G1/2
ContiTech: FD 138-18 DS G1/2 M10
ContiTech: FD 138-18 DS G1/2 CR
ContiTech: FD 138-18 DS CR G1/2
ContiTech: FD 138-18 DS/ FD138-18DS 1 FD13818DS
ContiTech Bellow: FD 138-18 1 FD138-18/ FD13818
YS-AIR: YS-210-2V
YS-AIR:YS 2102V
YS-AIR:YS2102V
Goodyear: 2B8-2150
Goodyear:2B8 2150
Goodyear:2B82150
Goodyear Flex No.: 578-92-3-2150
Goodyear Flex No.:57892 3 2150
Goodyear Flex No.:5789232150
Springride: 2B8 -2150 1 2B82150 /2B82150
Springride Flex No.: 578-92-3-2150;
Springride Flex No.:578923 2150;
Springride Flex No.:5789232150
Dunlop FR: SP1490
Dunlop FR: SP918
Dunlop UK (Pneuride): PNP 30550 01 12 1 PNP305500112
WEFORMA: WBZ-G 350 1 WBZ-G350 1 WBZG350
Airtech: 113060
Airtech Ref.: 2B-200 12B 200 12B200
Prime- Ride New: 2B8-2150 1 2B82150 12B82150
Prime- Ride New Flex No.: 578- 92-3-2150/ 578 92 32150/
5789232150
Application range of GUOMAT NO. 2B8x2 air spring:
•Material handling industry
•Wood industry
•Aluminum can recycling
• Container manufacturer
•Paper Industry
• Stamping manufacturing
• Vibration equipment and
Conveyor
•Vibrating screen
•Steel manufacturing
equipment
•Automotive
(plate glass)
GUOMAT Air Spring Refer to Norgren AIR SPRINGS model air bellows:
GUOMAT NO. | Model | Nominal Ø (inch) x convolutions | Maximum stroke (mm) | Air Port size |
1B 2 3/4x 1 | PM/31021 | 2 3/4“ x 1 | 20 | G1/4 |
2B 2 3/4x 2 | PM/31022 | 2 3/4“ x 2 | 45 | G1/4 |
3B 2 3/4x 3 | PM/31023 | 2 3/4“ x 3 | 65 | G1/4 |
1B 4 1/2x 1 | PM/31041 | 4 1/2“ x 1 | 140 | G3/8 |
2B 4 1/2x 2 | PM/31042 | 4 1/2“ x 2 | 280 | G3/8 |
1B 6x 1 | PM/31061 | 6" x 1 | 155 | G1/2 |
2B 6x 2 | PM/31062 | 6" x 2 | 155 | G1/2 |
1B 8x 1 | PM/31081 | 8" x 1 | 95 | G3/4 |
2B 8x 2 | PM/31082 | 8" x 2 | 185 | G3/4 |
1B 9 1/4x 1 | PM/31091 | 9 1/4” x 1 | 105 | G3/4 |
2B 9 1/4x 1 | PM/31092 | 9 1/4“ x 1 | 230 | G3/4 |
1B 12x 1 | PM/31121 | 12" x 1 | 105 | G3/4 |
2B 12x 2 | PM/31122 | 12" x 2 | 215 | G3/4 |
3B 12x 3 | PM/31123 | 12" x 3 | 315 | G3/4 |
• The restoring force is required to compress the air spring cushion to the minimum height. Usually achieved by applying external force
• The entire air spring cushion surface of the upper and lower plates must be used to absorb the force
• The air spring cushion can only move on the workpiece, or it must be equipped with a limit stop at the end of the stroke, otherwise the rubber material of the air spring cushion will be overloaded or cause internal damage
•Before removing the air spring cushion, the air pressure in it must be discharged.
• During the operation, the wall of the air spring cushion must not be in contact with other parts, otherwise the air spring cushion will be worn and damaged, and air leakage will occur.
