| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B7070 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Iron Cover Plate , Rubber Bellows | Firestone NO.: | W01-M58-6105 |
|---|---|---|---|
| Continental NO.: | Fd70-13 | Firestone Style:: | 25(255-1.5) |
| Contitech NO.: | Fd 70-13 | Pressure Ability: | 0.2-0.8 MPa |
| GUOMAT NO.: | 2B7070 | MAX OD: | 165 MM |
| Srew Or Bolts: | Both 2pcs Of M8 On One Plate | ||
| High Light: | W01-M58-6105 Firestone Air Spring,W01-M58-6105 air suspension spring bag |
||

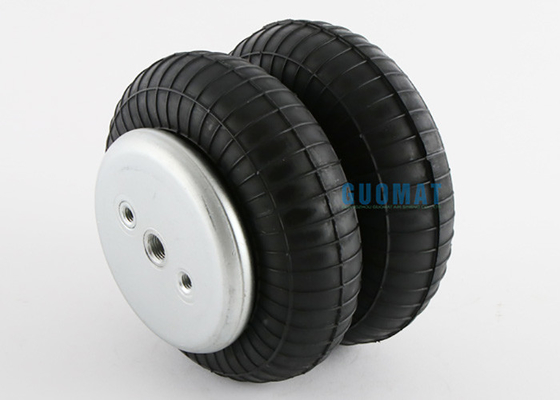

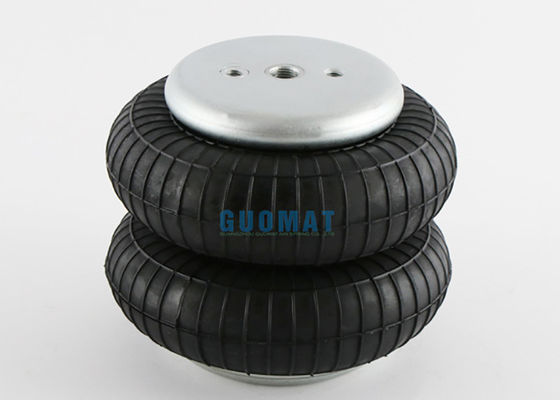

W01-M58-6105 Firestone Air Spring For Textile Looms Or Electronic Equipment
Description of W01-M58-6105:
GUOMAT 2B7070 is produced by the GUOMAT factory.GUOMAT 2B7070 air springs are used not only for trucks and trailers, but also as vibration conveyors, such as large dryers, centrifugal separators, coordinate measuring tables and machinery, and commercial washing machines.GUOMAT air spring 2B7070 dual scroll airbag can completely replace contitech W01-M58-6105 Firestone air spring; the technical parameters of GUOMAT 2B7070 are the same as W01-M58-6105 Firestone air spring, indicating that GUOMAT 2B7070 gas scroll industrial air spring willNo internal flexible parts of molded beads are used.The number of rubber bellows is 25, and the flexible piece is connected to the end of the bracket by clamping the material between the top plate and the bottom plate, and then adjusting it to a suitable diameter.
| GUOMAT 2B7070 OEM COMPLETE Number |
| GUOMAT NO. 2B7070 |
| Firestone No.:W01-M58-6105;W01 M58 6105;W01M586105 |
| Firestone Style :25(255-1.5) |
| fd 70 13 |
| fd 7013 |
| fd7013 ci |
| contitech fd 70-13 ci |
| continental fd 70-13 ci |
| contitech FD 70-13 1/4 M8 |
| contitech fd 70-13 contitech |
| Manufacturer Original-part no. |
| Model Gigant 196027 |
GUOMAT 2B7070 Specifications and Detail Technical Parameters
❶Nut/blind nut
Top plate screw (nut) teeth: 2 X M8X1.25
The screw center distance of the top cover plate: 44.5 mm
Screw (nut) teeth of the bottom cover plate: 2 x M8X1.25
The screw center distance of the bottom cover plate: 44.5 mm
❷Air hole/air inlet/air fitting
Air hole/air inlet: G1 / 4
❸cover
Top plate diameter (width): 105 mm
Diameter (width) of the bottom cover: 105 mm
Bell rubber bellows
Natural diameter of rubber bellows: 146 mm
Maximum diameter of rubber bellows: 165 mm
Installation space diameter: 180 mm
Natural height of rubber bellows: 162 mm
❺Bumper block/bumper block
No bumper
❻Belt loop/Belt loop
With belt hoop: a belt hoop
One pc of GUOMAT 2B7070 Package size and weight:
| Net Weight | Gross Weight | Length (cm) |
Width (cm) |
Height (cm) |
Measurememt (cbm) |
| 1.6 | 2.0 | 16 | 16 | 16 | 0.01 |
Note:
We always have goods in stock.
This air spring is generally in stock. The products produced by GUOMAT conform to national standards. The warranty is one year. Any quality problem can be exchanged within one year.
There is no limit to the number of purchases. Small quantities are generally sent by international express, such as DHL, FEDEX, UPS, TNT, etc. The time is also very fast, usually within 3-7 working days to receive the goods.
The application of this GUOMAT 2B7070 air spring is very wide:
Presses
• Bin-tilting devices
• Palletizers, label applicators in packaging equipment
• Amusement park rides
• Clutch and brake systems
Scissor lifts
• Injection or ejection of parts in manufacturing equipment
• Vertical lift force for platforms and rotating tables
• Conveyor or transfer systems
• Rotary shaft actuators
Pictures Show The Information Includes:
Technical data
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values
