W01-358-6955 Firestone Air Shock Suspension For Centrifugal Separators

W01-358-6955 Firestone Air Shock Suspension For Centrifugal Separators

  • W01-358-6955 Firestone Air Shock Suspension For Centrifugal Separators
  • W01-358-6955 Firestone Air Shock Suspension For Centrifugal Separators
  • W01-358-6955 Firestone Air Shock Suspension For Centrifugal Separators
  • W01-358-6955 Firestone Air Shock Suspension For Centrifugal Separators
W01-358-6955 Firestone Air Shock Suspension For Centrifugal Separators
Product Details:
Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B6955
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows GUOMAT NO.: 2B6955
Firestone Style:: 25(255-1.5) Firestone: W01-358-6955
Air Inlet: 1/4 NPT Pressure Ability: 0.2-0.8 MPa
Nut: 3/8-16 Blind Nuts Net Weight: 1.7 Kg
High Light:

Firestone Air Shock Suspension

,

W01-358-6955 Air Shock Suspension

,

W01-358-6955 industrial Air Aprings

W01-358-6955 Firestone Air Shock Suspension industrial Air Aprings For Centrifugal Separators​





Description Assembly Order No.

GUOMAT NO.:2B6955



Blind nuts, 1/4 NPT:

Firestone Part number:WO1-358-6955 /

Firestone Part number:W01-358-6955 /

Firestone Part number:W013586955



Blind nuts, 3/4 NPT:

Firestone Part number:WO1-358-6956 /

Firestone Part number:W01-358-6956 /

Firestone Part number: W013586956



Rubber bellows only:

Firestone Part number:WO1-358-0048 /

Firestone Part number:W01-358-0048 /

Firestone Part number:W013580048



Ply Socket head aluminum bead:

Firestone Part number:WO1-358-6833
Assembly weight  3.9 lbs.

Force to collapse to minimum height (@ 0 PSIG) 50 lbs.





Specifications and Detail Technical Parameters



Maximum diameter @ 100 PSIG (inch)
6.5
Maximum height (inch)
7
Maximum stroke (inch)
4
Minimum usable height (inches)
3
80PSI force at 1 inch stroke (lbs)
1612
80 PSI force (lbs) at a stroke of 3 inches
1194
Maximum thrust for maximum stroke @ 80PSI (pounds)
921





Specifications

Weight 17 kg

1/4NPT : max. 25 Nm

3/8-16 blind nuts



Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16

Screw Center Distance of Top Cover Plate : 44 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16

Screw Center Distance of Bottom Cover Plate : 44 mm

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4NPT

Cover Plate

Top Cover Plate Diameter (Width): 111 mm

Bottom Cover Plate Diameter (Width): 111 mm

Rubber Bellows

Rubber Bellows Natural Diameter : 146 mm

Rubber Bellows MAX Diameter : 165 mm

Installation Space Diameter : 180 mm

Rubber Bellows Natural Height : 175 mm

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop





W01-358-6955 Technical index table :



Bellows type Double convolution Expanded height [maximum] 7 inches
Temperature range [minimum] -35°C to 70°C Force in the stroke @ 9 not applicable
Compressed height 3 inches convolution double
Force in the stroke @ 8 not applicable Stroke length [MAX] 4 in
Style number 255-1. 5 Blind hole spacing 1 3/4 inches
Force @Max stroke (80 PSI) 1198 lbf Force in the stroke @ 12 not applicable
Air spring description Blind nut weight 3.9 pounds
Force@Stroke (80 PSI) "1786/3 lbf
End cap Type 1 bead plate Bellows outer diameter [maximum] 6. 4 in
Pressure [max] 100 pounds per square inch (Print) air inlet 1/4 inch
Air inlet 1/4 inch Inlet type Non-proliferation treaty
Force in the stroke @ 3 1786 lb Recommended isolator design height 6 inches
Force in the stroke @ 1 2039 lb Force in the stroke @ 4 not applicable
bumper Without bumper Extension height [maximum] Non-proliferation treaty
Force in the stroke @ 2 not applicable Temperature range [maximum] 135°F
Force in the stroke @ 6 not applicable Stroke force @ 5 not applicable





Design height
6 inch
Load (at design height): 40 psig (lbs)
566
Load (at design height): 60 psig (lbs)
871
Load (at design height): 80 psig (lbs)
1194
Natural frequency (@ 80 psig) (cpm)
129
Isolation percentage at mandatory frequency of 400 CPM
87.6
Percentage of isolation when the mandatory frequency is 800 CPM
97.2
Isolation percentage at forced frequency 1500 CPM
99.2



Dynamic Characteristics at 6.0 in. Design Height 2B6955 refer to W01-358-6955

(Required for Airmount isolator design only)

Volume @ 100 PSIG = 100 in3 Natural Frequency
Gage Pressure (PSIG) Load (lbs.) Spring Rate (lbs./ in.) CPM HZ
40 566 309 139 2.32
60 871 432 132 2.21
80 1,194 565 129 2.16
100 1,524 681 126 2.10

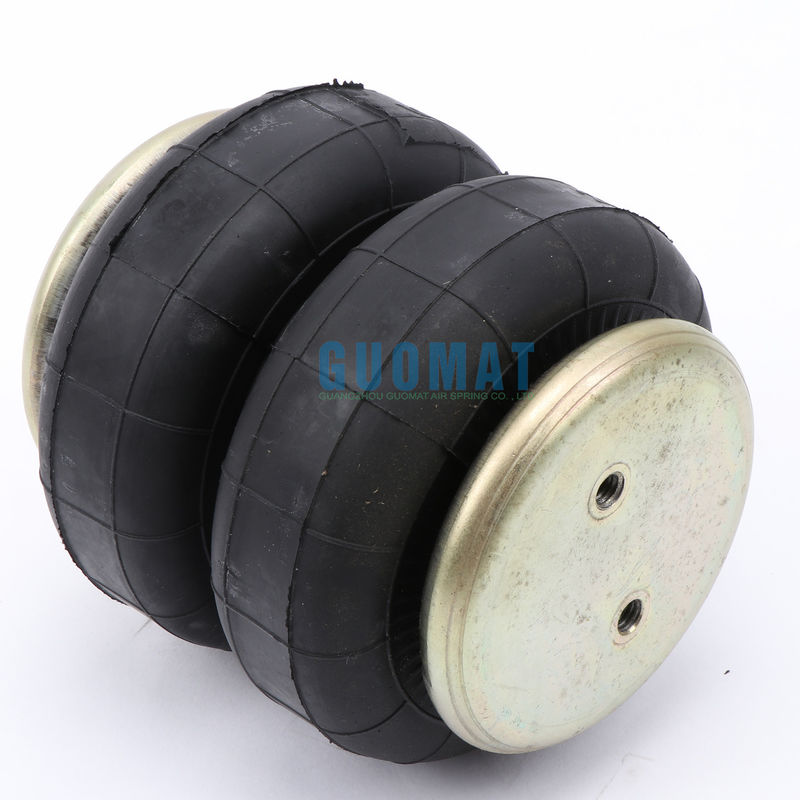

Real detail photos of GUOMAT NO.:2B6955 refer to W01-358-6955:
