| Place of Origin: | Guangdong,China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B5-500 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber And Stainless Steel | Goodyear: | 1B5-500 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 1.0 Kg |
| Other Name: | Air Rubber | Pressure Ability: | 0.2-0.8 M Pa |
| Air Inlet: | 1 /4"-18 NPTF | Bolts: | 3/8 UNC |
| High Light: | 1B5-500 Goodyear Air Spring,1B5 579-913-500 air spring contitech |
||

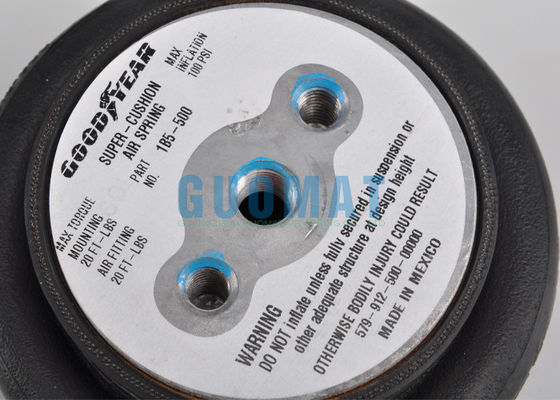

1B5-500 Goodyear Air Spring Rubber Bellows NO. 1B5 579-913-500 With 1.75" DIA. B.C.
OEM Original Manufacturer:
Goodyear Original:1B5-500
Goodyear Original:1B5 500
Goodyear Original:1B5500
Goodyear Rubber Bellows NO. 1B5 579-913-500
Goodyear Rubber Bellows NO. 1B5 579 913 500
Goodyear Rubber Bellows NO. 1B5 579-913-500
1B5-500 Goodyear Standard sizes:
| Material Code | Nitrile Butadiene Rubber (NBR) |
| Maximum Ambient Temperature (°C) | 70 |
| Maximum Working Pressure (Bar) | 8 |
| Minimum Ambient Temperature (°C) | -40 |
| Net Weight | 0.85 KG |
| MAX Diameter | 145 MM |
| Number of Convolutions | Single |
| Port Size | G1/4 |
| Stroke Length | 50.8 MM |
| Cylinder Type | Standard |
| End Cap Material | Aluminum |
Goodyear 1B5-500 can replace the following number:
| ASSEMBLY NUMBER | AIR F ITTING | Bumper included |
| 1B5- 500 | 1 /4"-18 NPTF | NO |
| 1B5-502 | 3/4"-14 NPTF | NO |
| 1B5-503 | 1 /4"-18 NPTF W'/TANK VALVE INSTALL ED | NO |
The detail data of Goodyear 1B5-500.pdf
The usual below kinds of Goodyear air spring we have:
| Goodyear Number 1 | Goodyear Number 2 | Goodyear Number 3 | FLEXIBLE MEMBER | Item code |
| 3B12-304 | 3B12304 | 3B12 304 | 578-93-3-100 | 578 932 304 00004 |
| 2B9-200 | 2B9200 | 2B9 200 | 578-92-3-202 | 578 922 200 00000 |
| FM8015 | FM8015 | FM8015 | 566-03-8015 | 566 038 015 00004 |
| 2B6-535 | 2B6535 | 2B6 535 |
579-92-3-515
|
579 922 535 00004 |
| 1R13-118 | 1R13118 | 1R13 118 |
566-26-3-068
|
566 262 118 00000 |
| 1R14-240 | 1R14240 | 1R14 240 |
566-28-3-059
|
566 282 240 00004 |
| 1R12-541 | 1R12541 | 1R12 541 |
566-24-3-038
|
566 242 541 00000 |
| 1R14-234 | 1R14234 | 1R14 234 | 566 282 234 00000 | |
| 1R12-1028 | 1R121028 | 1R12 1028 | 566 242 102 85000 | |
| 2B9-223 | 2B9223 | 2B9 223 | 578-92-3-211 | 578 922 223 00000 |
| 1B8-850 | 1B8850 | 1B8 850 | 579-913-530 | 579 912 850 00000 |
| 2B6-833 | 2B6833 | 2B6 833 | 579-92-3-510 | 579 922 833 00000 |
| 1R14-028 | 1R14028 | 1R14 028 |
566-28-3-021
|
566 282 028 00004 |
| 3B12-325 | 3B12325 | 3B12 325 |
578-93-3-103
|
578 932 325 00004 |
| 1B8-560 | 1B8560 | 1B8 560 | 1B8-1 579-91-3-532 | 579 912 560 00000 |
| 2B9-273 | 2B9273 | 2B9 273 |
578-92-3-206
|
578 922 273 00000 |
| 1R14-201 | 1R14201 | 1R14 201 | 566-28-3-020 | 566 282 201 00000 |
| 1B14-372 | 1B14372 | 1B14 372 | 578-91-3-351 | 578 912 372 00000 |
| 1R12-658 | 1R12658 | 1R12 658 | 566-24-3-067 | 567 242 658 00004 |
| 1B6-833 | 1B6833 | 1B6 833 | 579-91-3-510 | 579 912 833 00000 |
| 1B12-313 | 1B12313 | 1B12 313 |
578-91-3-301
|
578 912 313 00000 |
| 2B14-354 | 2B14354 | 2B14 354 |
578-92-3-353
|
578 922 354 00004 |
| 2B8-850 | 2B8850 | 2B8 850 | 579-92-3-530 | 579 922 850 00000 |
| 3B15-375 | 3B15375 | 3B15 375 | 578-93-3-377 | 578 932 375 00000 |
| 1S4-007 | 1S4007 | 1S4 007 |
1S4-007 PISTON ASC-08-7-139
|
579 080 007 00000 |
| 3B12-300 | 3B12300 | 3B12 300 |
578-93-3-100
|
578 932 300 00004 |
| 1B9-215 | 1B9215 | 1B9 215 | 578-91-3-201 | 578 912 215 00000 |
| 3B12-320 | 3B12320 | 3B12 320 | 578-93-3-100 | 578 932 320 00004 |
| 2B14-468 | 2B14468 | 2B14 468 | 578-92-3-356 | 578 922 468 00004 |
| 1B14-371 | 1B14371 | 1B14 371 |
578-91-3-352 /ASD-91-3-352
|
578 912 371 00000 |
| 1R13-239 | 1R13239 | 1R13 239 |
566-26-3-098
|
566 262 239 00004 |
| 2B12-346 | 2B12346 | 2B12 346 |
578-92-3-315
|
578 922 346 00000 |
The shipper needs an air suspension device.
* Driver comfort is higher.
* Increase resale value.
* Protect hinges, lamps, rivets and all trailer hardware.
The reason for the increase in air suspension usage:
* Suspension manufacturers have built a greater degree of durability,
Longer warranty period.
* Requires greater axis offset.
Air springTrucks, trailers and buses
Super-Cushion® air spring for truck, trailer bus, and cab and seat spring protection
Goods, providing constant trailers and providing long-term, trouble-free service.
Super-Cushion® air springs provide new high capacity for your trucks, trailers and buses
And long life They offer a quiet, buffering ride. Trucks, trailers and buses
The body is longer than the steel spring, because the vibration is smaller. driver
Ride more comfortable, become exhausted, remain vigilant. plus
The goods have better shock and vibration protection. Whenever you want to add
A shaft, Super-Cushion® air spring is suitable.
The drawing of Goodyear 1B5-500 and Parameter curve
The drawing of Goodyear agent products For GUOMAT.pdf
