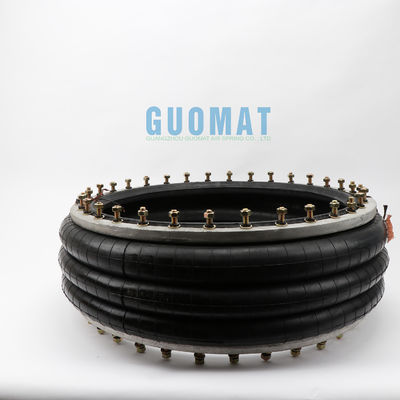

W01-358-7324 Firestone Air Spring FT 1710-38 RS For Heavy Lift Machine

W01-358-7324 Firestone Air Spring FT 1710-38 RS For Heavy Lift Machine

  • W01-358-7324 Firestone Air Spring FT 1710-38 RS For Heavy Lift Machine
  • W01-358-7324 Firestone Air Spring FT 1710-38 RS For Heavy Lift Machine
W01-358-7324 Firestone Air Spring FT 1710-38 RS For Heavy Lift Machine
Product Details:
Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 3B7324
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Aluminum Alloy And Rubber Firestone: W01-358-7324
Warranty: 12 Months Net Weight: 16.5 KG
Other Name: Air Spring Industrial Pressure Ability: 0.2-0.8 M Pa
Gross Weight: 18.5 KG Flange Ring: With
Connection Method: Flange Connection Contitech FT 1710-38 RS: FT 1710-38 RS
High Light:

W01-358-7324

,

FT 1710-38 RS Firestone Air Spring

W01-358-7324 Firestone Air Spring Bellows NO. Style 320 Contitech FT 1710-38 RS For Heavy Lift Machine





Guomat 3B7324 Industrial Single Convoluted Air Spring Specifications



Product Specifications
Type: 320
Aluminum clamping ring: 24 (3/8-24) BOL TS EACH RING
Bolt diameter Ø:

482 mm /

19.0 inch

Board diameter: 517 mm /

20.37 inch

Max diameter (OD) at 7 bar: 569 mm /

22.42 inch

Min height: 115 mm /

4.53 inch

Max height:

495 mm /

19.5 inch

Stroke: 380 mm /

14.97

inch




Nut / Blind Nut

The Long Of The Nut:38 mm

Top Cover Plate Screw number: 24 pcs

Bottom Cover Plate Screw number : 24 pcs

Top Cover Plate Screw (Nut) Tooth : M10

Screw Center Distance of Top Cover Plate : 482 mm

Bottom Cover Plate Screw (Nut) Tooth : M10

Screw Center Distance of Bottom Cover Plate : 482 mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2



Cover Plate

Top Cover Plate Diameter: 517 mm

Bottom Cover Plate Diameter:517 mm



Rubber Bellows

Rubber Bellows MAXl Diameter : 569mm

Rubber Bellows Natural Height :440 mm



Bumper block / Buffer block

Without Bumper Block



Girdle Hoop / Girdle Ring

With 2pcs Girdle Hoop





Style 320 Two Ply Bellows



Ribbed neck aluminum,bead rings (equal spacing),45 mm bolts, nuts, washers:

W01-358-7324

;W01 358 7324

;W013587324



Rolled plate assembly*, 1/2 blind nuts, 3/4 NPT:

W01-358-7276

W01 358 7276

W013587276


Rubber bellows only:

W01-358-0987;

W01 358 0987;

W013580987
Force to collapse to minimum height (@ 0 BAR):400 N.





Style 328 High Strength Con-struction:

Ribbed neck aluminum

Ribbed neck aluminum bead rings (equal spacing),17/8 bolts, nuts, washers:
W01-358-9528

W01 358 9528

W013589528


Rolled plate assembly*, 1/2 blind nuts, 3/4 NPT

W01-358-9526

W01 358 9526

W013589526



Rubber bellows only
W01-358-1002;

W01 358 1002;

W013581002





The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects





Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate



Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.



Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.



Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.



Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.



Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.





GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!





  • They almost do not need to maintain.
  • Increase the service life of tires and brake pads.
  • Let you pull anything; Eliminate expensive admission cost.
  • Greatly reduce the breakage of the other vehicle components and maintenance.
  • Back to you in the scrappage, truck and trailer with air suspension is more valuable.
  • Allow the perfect load balancing between axles; Allow you to run in one of the largest legal restrictions.
  • Reduce the discomfort and driver fatigue risk; Improve the efficiency of the driver's safety, and loyalty
  • To provide smooth to load, reduce the cost of expensive insurance claims and packaging.
