W01-358-9602 Firestone Industrial Air Springs Contitech FD 5450-28 RS Weight 33 kg

Product Details:

Place of Origin:	China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	900280H-2

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union,Paypal or Others
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Aluminum Alloy And Rubber	Firestone:	W01-358-9602
Warranty:	12 Months	Net Weight:	33 KG
Pressure Ability:	0.2-0.8 M Pa	Gross Weight:	35 KG
Flange Ring:	With Or Without	Connection Method:	Flange Ring
Flange Ring Size:	890 Mm	BOLT CIRCLE DIA:	830 Mm
Contitech:	FD 5450-28 RS
Highlight:	W01-358-9602 , 33kg Industrial Air Springs

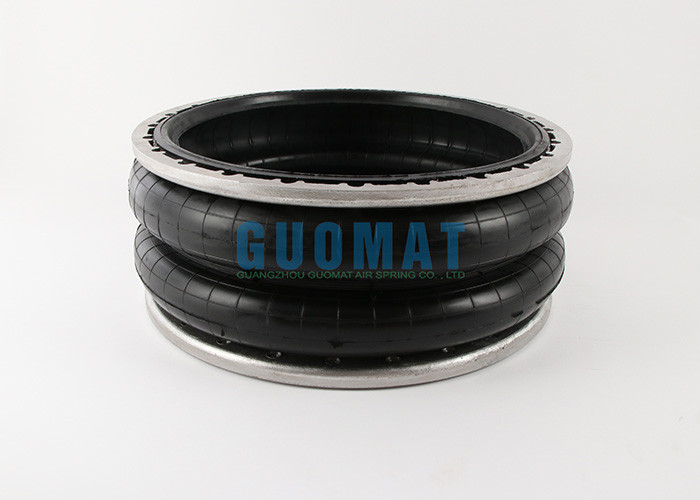

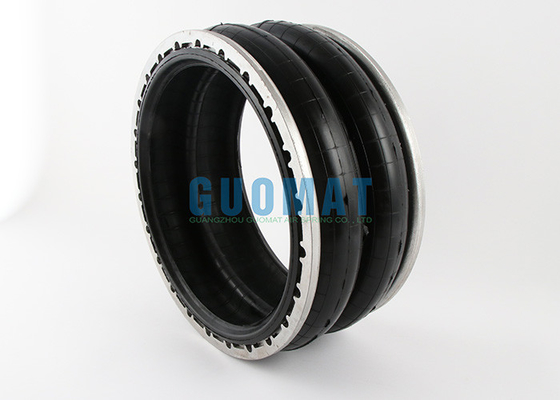

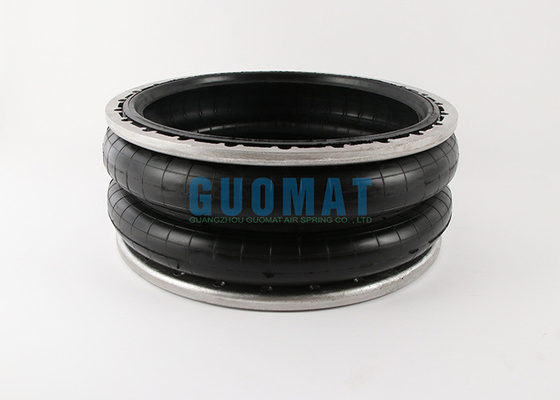

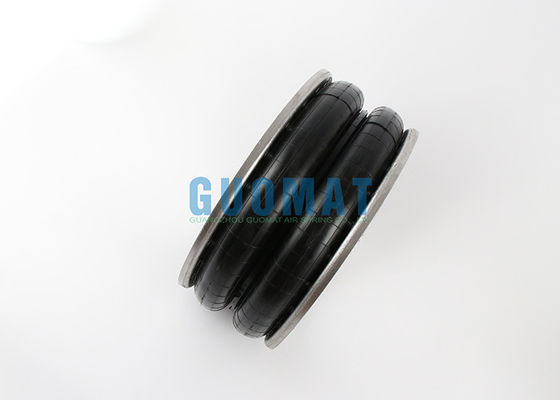

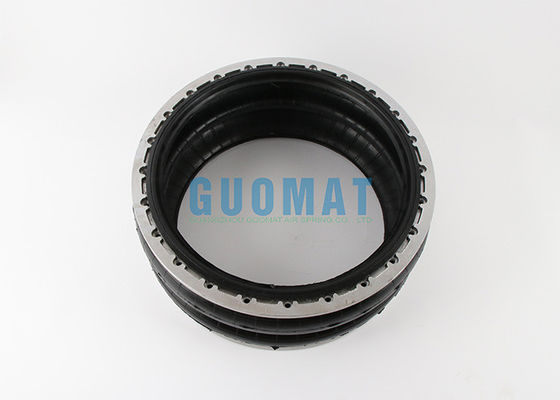

W01-358-9602 Firestone Industrial Air Springs Contitech FD 5450-28 RS Four Ply Bellows Assembly Weight 33 kg

W01-358-9602 Firestone Cross other OEM:

GUOMAT: 900280H-2

Contitech:FD 5450-28 RS UNF HP,

Contitech:FD5450-28 RS UNF HP,

Contitech:FD 5450 28 RS UNF HP,

Firestone: W01-358-9602

Firestone: W01 358 9602

Firestone: W013589602

Firestone Bellows:248-2

bellows type industrial air spring,

double helix,

effective area 5450cm square,

maximum stroke 28cm, ring,

stud bolt installation,

inch ring,

high strength 175 PSI Max

Industrial Triple Convoluted Air Spring Specifications

Manufacturer Part Number	Short Description W01-358-9602, W013589602, WO1-358-9602, WO13589602	Bead ring Type	4
Maximum Diameter @ 7 Bar (mm)	950	Dim# C (Bolt Circle Diameter mm)	830
Maximum Height (mm)	393	# of Bolts (each ring)	40
Maximum Stroke (mm)	286	Design Height (mm)	381
Minimum Usable Height (mm)	107	3 Bar (kN)	78.5
25 mm (kN)	174.6	5 Bar (kN)	132.9
50% of Max Stroke (kN)	150	7 Bar (kN)	187.9
Maximum Stroke (kN)	286	Natural Frequency (@5 Bar)(fn(Hz)	1.2
Applicable Technigram	113	7 Hz	97
Material	2-Ply, High Strength Cord	13 Hz	99.3
		25 Hz	99.8

Maximum diameter @ 100 PSIG (inches)
37.4
Maximum height (inch)
13.3
Maximum stroke (inch)
9.1
Minimum usable height (inches)
4.2
1 inch (lb)
78200
3 inches (lbs)
74100
Maximum stroke (lbs)
53990
Applicable technology?
113
material
4-layer standard line
Bead type
4

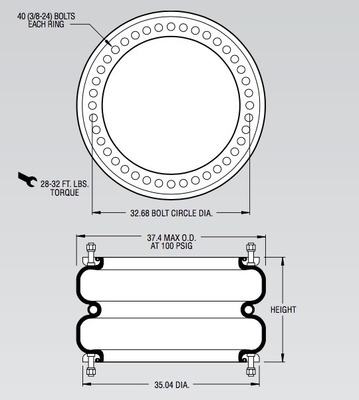

Bolt circle diameter (inch)
32.68
Number of bolts (per ring)
40
Design height
11
40 pounds per square inch (lbs)
30830
60 pounds per square inch (lbs)
47720
80 pounds per square inch (lbs)
63890
Natural frequency (@ 80 psig) (cpm)
83
400 CPM%
95.5
800 CPM%
98.9
1500 CPM%
99.7
Manufacturer Part Number: W013589602

GUOMAT 900280H-2 Cross OEM

GUOMAT: 900280H-2

Style 248-2
Four Ply Bellows
Ribbed neck aluminum bead rings (equal spacing),
17/8 bolts, nuts, washers
W01-358-9602
Assembly weight...................................................... 78.6 lbs.
Force to collapse to minimum height (@ 0 PSIG) ... 350 lbs.

Two Ply Bellows
Rubber bellows only
Firestone W01-358-1022;

Firestone W01 358 1022;

Firestone W013581022

W01-358-9602 Firestone Industrial Air Springs Contitech FD 5450-28 RS Weight 33 kg 0
