| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B7184 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel And Rubber | Firestone: | W01-358-7184 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 5.0kg |
| Other Name: | Air Suspension Parts | Pressure Ability: | 0.2-0.8 M Pa |
| Rubber Bellows: | W01-358-0226 | Air Inlet: | 3/4 NPT |
| High Light: | W01-358-7184,3/4 NPT convoluted air spring,2B7184 firestone air bag kit |
||
W01-358-7184 Firestone Air Spring 3/4 NPT Style 22 Rubber Bellows W01-358-0226
Technical Parameters of W01-358-7184
Top Cover Plate Diameter 231mm
Bottom Cover Plate Diameter 231 mm
Screw Center Distance 157 mm
Distance Gas Hole Between Nut 73 mm
Gas Hole 1/4NPTF
Screw (Nut) Tooth 2pcsX3/8-16UNC
Rubber Bellows MAX diameter 325 mm
The Stroke 81-305 mm
FD 330-22 CI 3/4 NPT OS,
bellows type industrial air spring,
double helix, 330cm sq effective area,
22cm maximum stroke,
crimping pressure plate,
female mounting thread,
3/4 NPT, offset
Manufacturer: Mainland
Compressed height
2.95 inches
Maximum expansion height
12"
The maximum diameter
12.8"
Maximum inflation pressure
120 psi
Maximum stroke
9.05"
Inlet type
Imperial
Air inlet
3/4"
series
C
lowest temperature
-76°F
Maximum temperature
158°F
Bellows type
Double convolution
weight
10.6 lb
W01-358-7184 Cross other OEM Original Equipment Manufacturer:
|
Description Assembly Order No. |
||
|
Firestone Style 22 Two Ply Bellows |
Blind nuts, 1/4 NPT |
Firestone W01-358-7180 Firestone W01 358 7180 Firestone W013587180 |
|
Blind nuts, 1/4 NPT, bumper |
Firestone W01-358-7400 Firestone W01 358 7400 Firestone W013587400 |
|
|
Blind nuts, 3/4 NPT |
Firestone W01-358-7184 Firestone W01 358 7184 Firestone W013587184 |
|
|
Blind nuts, 3/4 NPT, bumper |
Firestone W01-358-7185 Firestone W01 358 7185 Firestone W013587185 |
|
|
Countersunk steel bead rings, 15/8 bolts, nuts, washers |
Firestone W01-358-7431 Firestone W01 358 7431 Firestone W013587431 |
|
|
Rubber bellows only |
Firestone W01-358-0226 Firestone W01 358 0226 Firestone W013580226 |
|
|
Assembly weight....................................................... 13.0 lbs |
||
Maximum diameter @ 100 PSIG (inches)
12.9
Maximum height (inch)
10.1
Maximum stroke (inch)
6.9
Minimum usable height (inches)
3.2
80PSI force at 1 inch stroke (lbs)
7180
Force applied at 80 PSI in a 3-inch stroke (pounds)
6470
Maximum thrust for maximum stroke @ 80PSI (pounds)
3700
Style cross-reference equivalent high-strength style number
210
Style cross reference extended height (similar end caps) style number
22-1.5
material
2-layer standard line
End details
Bead plate type
3

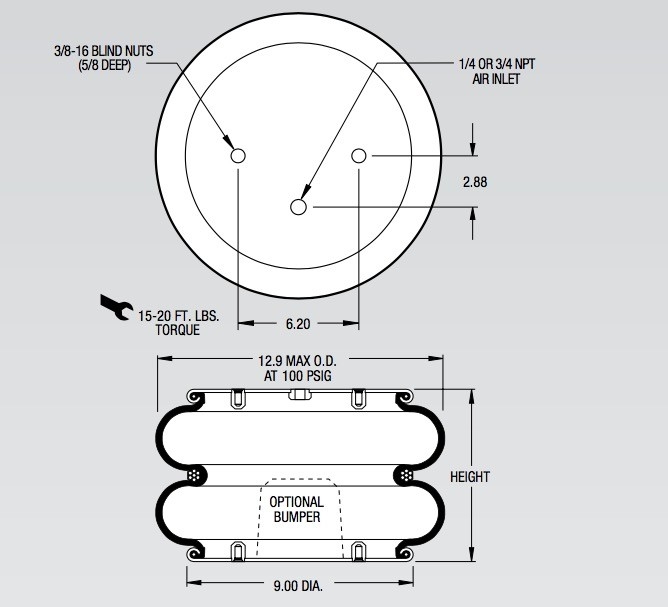

Blind nut center (inch)
6.2
Port offset of blind nut centerline (inch)
2.88
Air isolator
Design height
9.5
Load (at design height): 40 psig (lbs)
2060
Load (at design height): 60 psig (pounds)
3170
Load (at design height): 80 psig (lbs)
4280
Natural frequency (@ 80 psig) (cpm)
106
Percentage of isolation when the mandatory frequency is 400 CPM
92.4
Percentage of isolation when the mandatory frequency is 800 CPM
98.2
Isolation percentage at forced frequency 1500 CPM
99.5
| BELLOW NO. | COMPLETE NO. | COMPLETE NO. |
| AIRKRAFT 114301 | AIRKRAFT 113333 | AIRKRAFT 113491 |
| FIRESTONE FLEX 22 | CONTITECH FD 330-22 313 | FIRESTONE W01-358-7184 |
| FIRESTONE W01 358 0226 | FIRESTONE W01 358 7400 | GOODYEAR 2B12-429 |
| 95.0037 | GOODYEAR 2B12-309 | GOODYEAR FLEX 578-92-3-309 |
| 95.0082 | GOODYEAR FLEX 578-92-3-309 | AIRKRAFT 113492 |
| GOODYEAR 556 2 3 8210 | TAURUS KF 222-7400 | FIRESTONE W01-358-7185 |
| PHOENIX 2B 22R | AIRKRAFT 113490 |
GOODYEAR 2B12- 318 Goodyear Part # 2B12-311 Goodyear-Firestone Cross Reference‚ 2B12-425 Goodyear-Firestone Cross Reference‚ 2B12-437 Goodyear-Firestone Cross Reference |
| PIRELLI T22 88544 | CONTITECH FD 330-22 363 | GOODYEAR FLEX 578-92-3-309 |
| FIRESTONE W01-358-7180 | ||
| GOODYEAR 2B12 425 | ||
| GOODYEAR FLEX 578-92-3-309 |
Other kinds of that GUOMAT have:
|
Style 210 High Strength Bellows |
Blind nuts, 1/4 NPT |
W01-358-7251 |
|
Blind nuts, 1/4 NPT, bumper |
W01-358-7291 |
|
|
Blind nuts, 3/4 NPT |
W01-358-7250 |
|
|
Countersunk steel bead rings, 13/4 bolts, nuts, washers |
W01-358-7258 |
|
|
Rubber bellows only |
W01-358-7928 |
|
