W01-358-7478 Firestone Industrial Air Spring W01-358-0119 Rubber Bellows W01-358-7477

W01-358-7478 Firestone Industrial Air Spring W01-358-0119 Rubber Bellows W01-358-7477

Guomat 1F74784 Industrial Single Convoluted Air Spring Specifications

Stroke (MM) 127
Type series / MODEL W01-358-7478
Style 119
Number of bellows
Min Height (MM) 51 mm
Maximum height (MM) 178 mm
Maximum working height (MM) 160 mm
Maximum capacity (kN) 81 kN
Installation space (mm): 457 mm
Maximum diameter (mm) 442 mm
Weight (KG) 5.98 kg

Maximum diameter @ 100 PSIG (inches)
17.4
Maximum height (inch)
6.2
Maximum stroke (inch)
4.2
Minimum usable height (inches)
2 pcs
80PSI force at 1 inch stroke (lbs)
14030
Force applied at 80 PSI in a 3-inch stroke (pounds)
11450
Maximum thrust for maximum stroke @ 80PSI (pounds)
7850
material
2-layer standard line
End details
Bead type
4

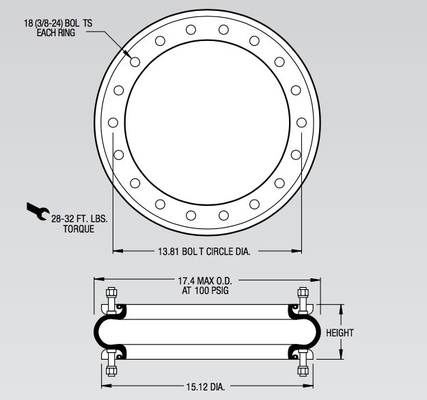

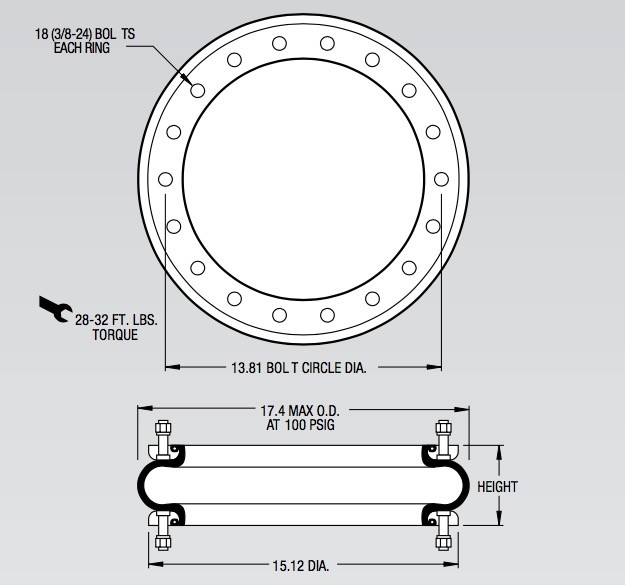

Bolt circle diameter (inch)
13.81
Number of bolts (per ring)
18 years old
Air isolator
Design height
5
Load (at design height): 40 psig (lbs)
5490
Load (at design height): 60 psig (pounds)
8450
Load (at design height): 80 psig (lbs)
11450
Natural frequency (@ 80 psig) (cpm)
138
Percentage of isolation when the mandatory frequency is 400 CPM
86.5
Percentage of isolation when the mandatory frequency is 800 CPM
96.9
Isolation percentage at forced frequency 1500 CPM
99.1

❶Nut / Blind Nut

The Long Of The Nut:38 mm

Top Cover Plate Screw number: 18 pcs

Bottom Cover Plate Screw number : 18 pcs

Top Cover Plate Screw (Nut) Tooth : M10

Screw Center Distance of Top Cover Plate : 350 mm

Bottom Cover Plate Screw (Nut) Tooth : M10

Screw Center Distance of Bottom Cover Plate : 350 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2

❸ Cover Plate

Top Cover Plate Diameter: 384 mm

Bottom Cover Plate Diameter: 384 mm

❹Rubber Bellows

Rubber Bellows MAXl Diameter : 442 mm

Rubber Bellows Natural Height :410 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

Without Girdle Hoop

Style 119 Two Ply Bellows

Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers
W01-358-7478
Rubber bellows only
W01-358-0119
Rolled Plate Assembly*, 1/2 blind nuts, 3/4 NPT
W01-358-7477

The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects

❶Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate

❷ Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.

❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.

❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.

❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.

❻ Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.

GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!

• They almost do not need to maintain.
• Increase the service life of tires and brake pads.
• Let you pull anything; Eliminate expensive admission cost.
• Greatly reduce the breakage of the other vehicle components and maintenance.
• Back to you in the scrappage, truck and trailer with air suspension is more valuable.
• Allow the perfect load balancing between axles; Allow you to run in one of the largest legal restrictions.
• Reduce the discomfort and driver fatigue risk; Improve the efficiency of the driver's safety, and loyalty
• To provide smooth to load, reduce the cost of expensive insurance claims and packaging.
