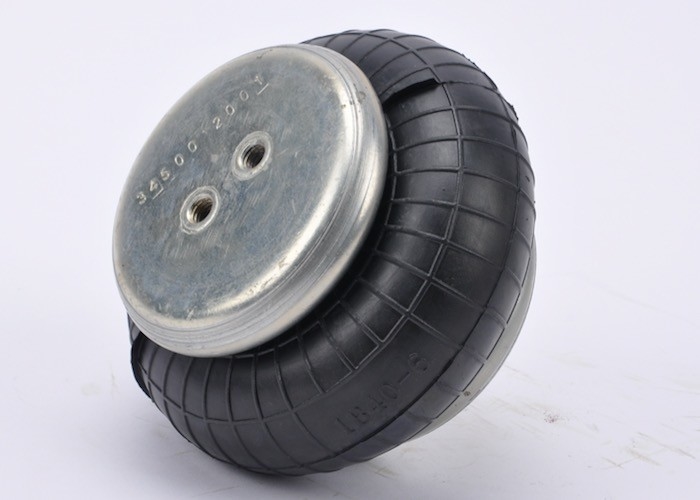

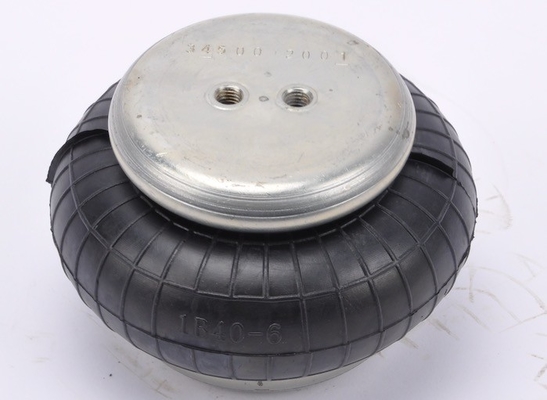

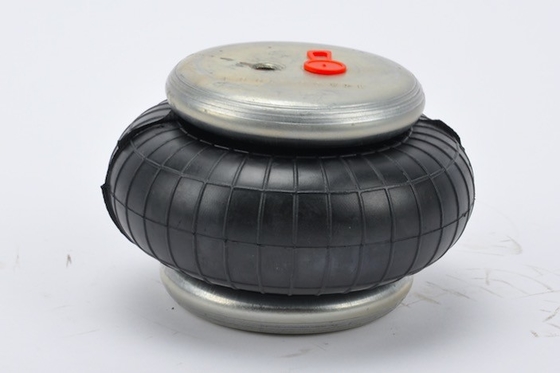

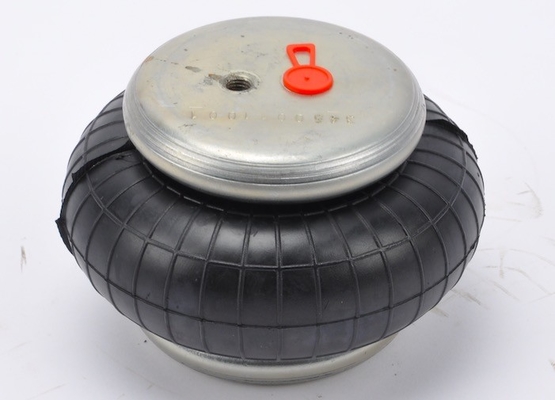

FS 40-6 Contitech Air Spring Smallest Size Max Dia. 145mm with Two Nuts
GUOMAT1B40-6 Technical Parameters Replace FS 40-6
❶ Nut / Blind Nut
Top Cover Plate Screw number: 2 pcs
Bottom Cover Plate Screw number : 2 pcs
The Distance of Nut:44.5 mm
The Screw Of Nut: M8
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/8
❸ Cover Plate
Top Cover Plate Diameter: 90 mm
Bottom Cover Plate Diameter: 90mm
❹ Rubber Bellows
Rubber Bellows Through Diameter: 130 mm
In 0.7 pa,Rubber Bellows Diameter :145 mm
The Working Stroke : MIN 50 mm to MAX 110 mm
Rubber Bellows Design Height :70 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
Without Piece Of Girdle Hoop
FS40-6 OEM Original Equipment Manufacturer:
| Phoenix |
SP1B04 ;
SP 1B04
SP 1B 04
|
| Weforma |
WBE100-E1
WBE 100-E1
|
| contitech |
FS 40-6 |
| contitenal |
FS40-6
FS406
|
| Technical data of FS40-6 |
| Min. pressure |
0 bar |
| Return force to min. height |
≤ 120 N |
| Overall weight with clamped plates |
0.9 kg |
| Number of Convolutions |
Single |
| Port Size |
G1/8 |
| Stroke Length |
60 MM |
| Cylinder Type |
Standard |
| End Cap Material |
Steel |
| Vibration isolation - dynamic characteristic values of FS40-6 |
| Design height H: recommended 90mm, minimum 70mm |
| Pressure p [bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol. V[l] |
| Force (Load) [KN] |
1.7 |
2.3 |
2.8 |
3.4 |
3.8 |
4.4 |
0.5 |
| Spring rate [N/cm] |
760 |
990 |
1220 |
1480 |
1610 |
1820 |
| Natural frequency [Hz] |
3.5 |
3.3 |
3.3 |
3.3 |
3.2 |
3.2 |
| Pneumatic application - static characteristic values of FS40-6 |
| Force F [kN] |
| Pressure p [bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol. V[l] |
| Height H [mm] 60 |
2.6 |
3.5 |
4.3 |
5.2 |
6.1 |
6.9 |
0.3 |
| 70 |
2.3 |
3.2 |
3.9 |
4.7 |
5.4 |
6.2 |
0.4 |
| 80 |
2.1 |
2.8 |
3.5 |
4.2 |
4.9 |
5.3 |
0.5 |
| 90 |
1.7 |
2.2 |
2.8 |
3.4 |
3.9 |
4.4 |
0.5 |
| 100 |
1.2 |
1.6 |
2 |
2.5 |
3 |
3.4 |
0.6 |
1B 40-6 CI G 1/8 CA Bellows Style Industrial Air Spring Refer to FS 40-6 Contitech:
Single Convoluted,
40cm sq Effective Area,
60 cm Max Stroke,
Crimped Bead Plate,
Female Mounting Threads, G1/8 BSPP, Centered,
Steel
Manufacturer: GUOMAT
Max Inflation Pressure
120 psi
Air Inlet Type:Metric
Series:C
Bellows Type:Single Convoluted
Weight:2.65 lbs.
Manufacturer Part Number: 1B40-6
| Single Convolution Air Actuator |
| All Measurements Are In Mm |
| GUOMAT NO. |
Contitech NO. |
Min. Design height |
Installation Space Required |
Max. Stroke |
| 1B4060 |
FS 40-6 |
50 |
160 |
60 |
| 1B5050 |
FS 50-5 |
51 |
165 |
44 |
| 1B7070 |
FS 70-7 |
51 |
180 |
64 |
| 1B10010 |
FS 100-10 |
51 |
225 |
94 |
| 1B1209 |
FS 120-9 |
50 |
230 |
85 |
| 1B1210 |
FS 120-10 |
51 |
245 |
99 |
| 1B12012 |
FS 120-12 |
51 |
250 |
119 |
| 1B20010 |
FS 200-10 |
51 |
265 |
89 |
| 1B33011 |
FS 330-11 |
51 |
340 |
99 |
| 1B33014 |
FS 330-14 |
51 |
360 |
129 |
| 1B53011 |
FS 530-11 |
51 |
400 |
124 |
| 1B53014 |
FS 530-14 |
51 |
420 |
134 |
| 1B96012 |
FS 960-12 |
63 |
480 |
117 |
| 1B133011 |
FS 1330-11 |
63 |
570 |
107 |
| |
|
|
|
|
| |
|
|
|
|
| Double Convolution Air Actuator |
| All Measurements Are In Mm |
| GUOMAT NO. |
Contitech NO. |
Min. Design height |
Installation Space Required |
Max. Stroke |
| 2B33022 |
FD 330-22 |
75 |
340 |
230 |
| 2B33030 |
FD 330-30 |
77 |
355 |
283 |
| 2B53022 |
FD 530-22 |
77 |
400 |
233 |
| 2B53030 |
FD 530-30 |
77 |
415 |
273 |
| 2B53035 |
FD 530-35 |
77 |
420 |
313 |
| 2B96022 |
FD 960-22 |
95 |
490 |
225 |
| 2B133025 |
FD 1330-25 |
92 |
570 |
243 |
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
| Triple Convolution Air Actuator |
| All Measurements Are In Mm |
| GUOMAT NO. |
Contitech NO. |
Min. Design height |
Installation Space Required |
Max. Stroke |
| 3B33029 |
FT 330-29 |
110 |
345 |
320 |
| 3B43032 |
FT 430-32 |
115 |
355 |
315 |
| 3B53032 |
FT 530-32 |
110 |
410 |
325 |
| 3B53035 |
FT 530-35 |
115 |
430 |
395 |
| 3B96034 |
FT 960-34 |
120 |
510 |
335 |
| 3B133035 |
FT 1330-35 |
120 |
570 |
350 |
