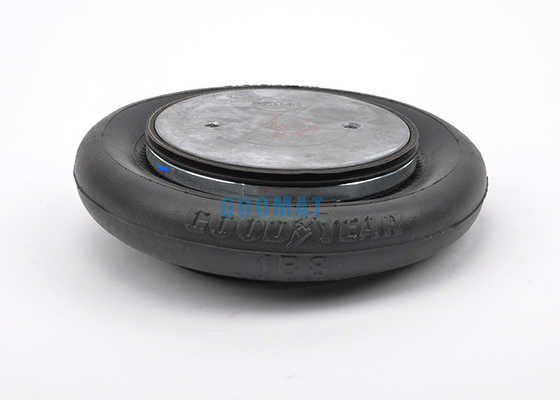

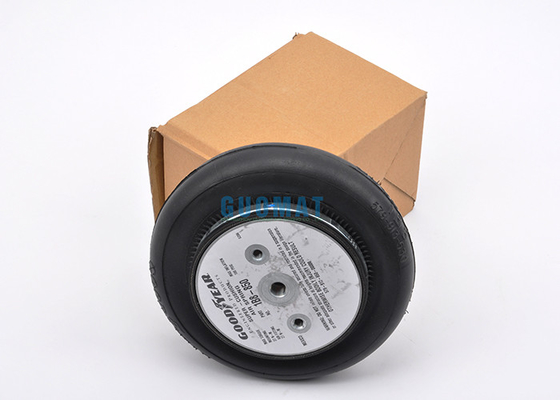

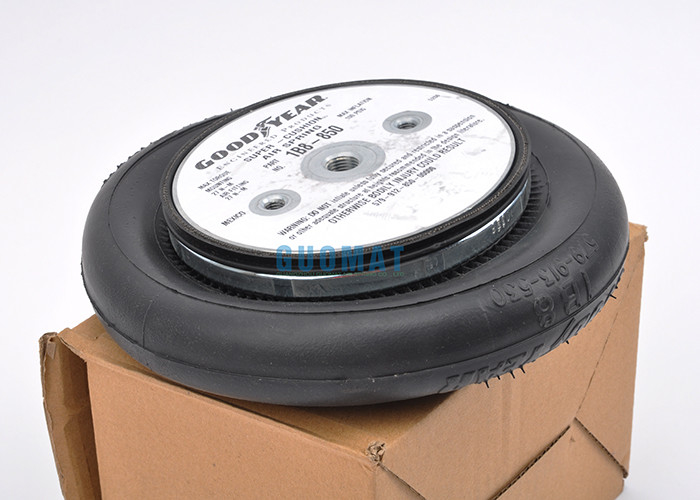

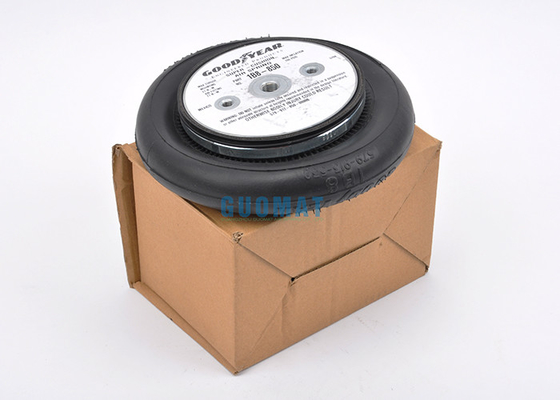

W01-M58-6166 Firestone Replaces By Goodyear Air Spring 1B8-850 Bellows 579-91-3-530

Name: W01-M58-6166 Firestone Replaces By Goodyear Air Spring 1B8-850 Bellows 579-91-3-530
Brand: Goodyear
SKU: 1B8-850
Rating: 4.9 (196 reviews)

Product Details:

Place of Origin:	China
Brand Name:	Goodyear
Certification:	ISO/TS16949:2009
Model Number:	1B8-850

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union,Paypal or Others
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Rubber Steel	Firestone:	W01-M58-6166
Warranty:	12 Months	Weight:	1.6 Kg
Other Name:	Goodyear Air Spring Actuator	Pressure Ability:	0.2-0.8 M Pa
Screw:	2XM8x1.25	Air Inlet:	1/4
High Light:	Firestone goodyear air spring , goodyear air spring Firestone , goodyear air spring 1B8-850

W01-M58-6166 Firestone Replaces by Goodyear Air Spring 1B8-850 Bellows 579-91-3-530

Technical Parameters of Goodyear Air Spring 1B8-850

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 PiecesXM8x1.25
Screw Center Distance of Top Cover Plate :70mm
Bottom Cover Plate Screw (Nut) Tooth : 2 PiecesXM8x1.25
Screw Center Distance of Bottom Cover Plate :70 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/4
❸ Cover Plate
Top Cover Plate Diameter (Width): 135mm
Bottom Cover Plate Diameter (Width): 135mm
❹Rubber Bellows
Rubber Bellows MAX Diameter : 215 mm
Working Stroke:MIN 50 To MAX 115 MM
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :NO Piece of Girdle Hoop

Min. pressure – 0 psi
Return force to min. height – <45LBF/200N
Overall Weight – 4.4LB
Min. Design Height – 1.97inch/50MM
Inst.Space Required – 9.06inch/230MM
Max. Stroke – 3.34inch/85MM

Goodyear Air Spring 1B8-850

OEM Original Equipment Manufacturer:Goodyear Air Spring 1B8-850

Firestone W01-M58-6166

Firestone W01 M58 6166

Firestone W01M586166

Contitech FS 120-10 CI G 1/4

Contitech FS120-10 CI G 1/4

Contitech FS12010 CI G 1/4

AIR INLET 1/4 NPT:

Firestone : W01-M58-6166

Contitech : FS 120-9

Dunlop(FR) : 8’’x1 S08100

Bosch : 822419008

Weforma : WBE 300-E2

PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES

Goodyear Air Spring 1B8-850 Force F [lbf]
Pressure p [psi]	40	60	80	100	Vol. V [in.³]
H 4.50 in./114.3MM	728	1130	1570	1970	110
H 4.00 in./101.6MM	905	1400	1940	2390	100
H 3.50 in./88.9MM	1050	1610	2240	2740	90
H 3.00 in./76.2MM	1170	1770	2450	3020	75
H 2.50 in./63.5MM	1270	1900	2630	3260	57

Goodyear Air Spring 1B8-850 VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS

Pressure p [psi]	40	60	80	100	120	Vol. V [in.³]
Force (load) F [lbf]	801	1,240	1,700	2,130	2,530	110
Spring rate c [lbf/in]	709	949	1,190	1,430	1,670	110
Natural Frequency f0 [Hz]	2.9	2.8	2.7	2.6	2.6	110
Design height H: recommended 4.33 inch, minimum 3.54 inch

PURCHASE ORDER DATA

Type

Air Inlet

Order No.

with crimped plates

3/4 NPT

0 in. excentrical

Goodyear Air Spring 1B8-850

with crimped plates

1/4 NPT

0 in. excentrical

Goodyear Air Spring 1B8-850

SERVICE INSTRUCTIONS

Thread	max. Torque
	3/8-16 UNC	20 lbf ft
	1/4 NPT	20 lbf ft
	3/4 NPT	40 lbf ft

Pay special attention to the fact that rubber is not an "additional rule" for rubber wear. The closer the polarity is, the lower the wear will be than the "addition" and the wear will be highest as the crosslink density increases. Value for money.

Rubber wear with low glass transition temperature and good molecular chain flexibility is relatively small.
Add high styrene, short fiber, PVC, PP, polyoxymethylene, PE, nylon and anti-aging agent to the rubber to reduce rubber wear.
Add high styrene, short fiber, PVC, PP, polyoxymethylene, PE, nylon and anti-aging agent to the rubber to reduce rubber wear.
