| Place of Origin: | Guangdong,China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B14-372 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber And Stainless Steel | Goodyear: | 578-91-3-351 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 7.0 Kg |
| Other Name: | Air Suspension | Pressure Ability: | 0.2-0.8 M Pa |
| Firestone: | W01-M58-6369 | Conti: | FS 530-14 CI G 3/4 |
| Air Fitting: | G 3/4 | ||
| High Light: | Goodyear firestone air bellows,3/4 Air Fitting firestone air bellows,Goodyear firestone bellows |
||

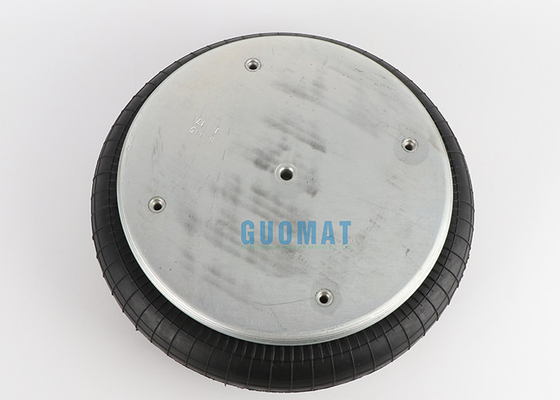

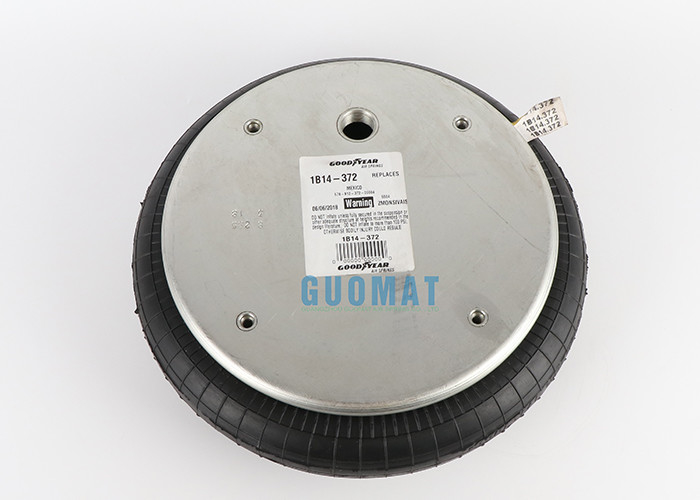

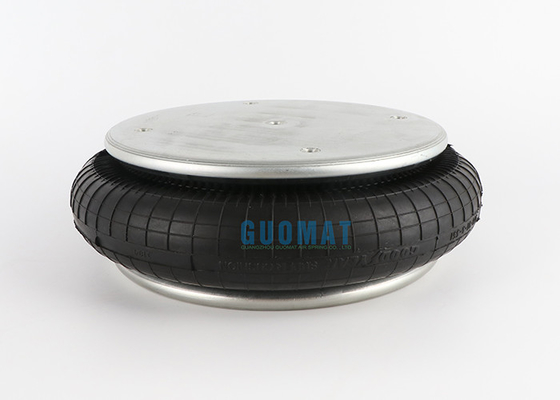

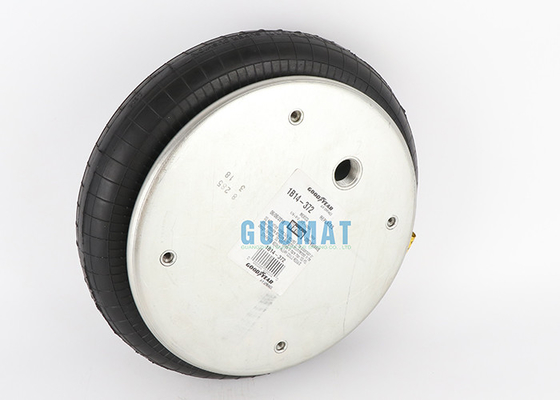

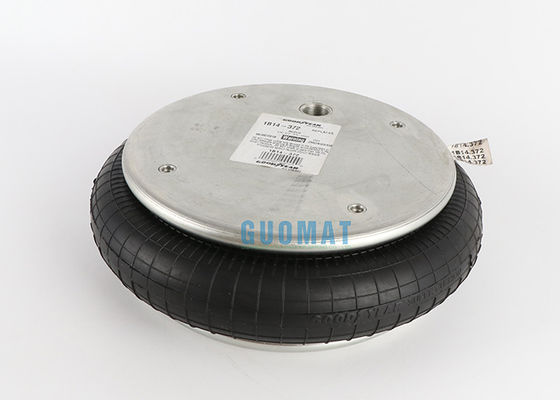

Industrial Air Spring W01-M58-6369 Firestone Air Bellows 578913351 Goodyear 1B14-372 With 3/4 Air Fitting
OEM Original Manufacturer:Goodyear
OEM Original Brand :Goodyear
Goodyear Parts Number: 1B14-372
Goodyear Parts Number: 1B14 372
Goodyear Parts Number: 1B14372
Goodyear Bellows Number:578-91-3-372
Goodyear Bellows Number:578 91 3 372
Goodyear Bellows Number:578913372
Goodyear Bellows Number:578-91-3-351
Goodyear Bellows Number:578 91 3 351
Goodyear Bellows Number:578913351
Goodyear UPPER BEAD PLATE Number:ASA-92-8-285
Goodyear UPPER BEAD PLATE Number:ASA 92 8 285
Goodyear UPPER BEAD PLATE Number:ASA928285
Goodyear LOWER BEAD PLATE Number:ASA-92-6-085
Goodyear LOWER BEAD PLATE Number:ASA 92 6 085
Goodyear LOWER BEAD PLATE Number:ASA926085
Goodyear FLEXIBL E MEMBER Number:578-91-3-351
Cross OEM
Firestone:W01-M58-6369
Firestone:W01 M58 6369
Firestone:W01 M58 6369
Contitech:FS 530-14 CI G 3/4
Contitech:FS530-14 CI G 3/4
Contitech:FS530 14 CI G 3/4
| Maximum Diameter @ 7 Bar (mm) | Dim. A (Blind Nut Centers) (mm) |
| 404 | 159 |
| Maximum Height (mm) | AIRMOUNT ISOLATOR |
| 51 | Design Height (mm) |
| Maximum Stroke (mm) | 140 |
| 117 | Load (at Design Height) at: 3 Bar (kN) |
| Minimum Usable Height (mm) | 18.5 |
| 168 | Load (at Design Height) at: 5 Bar (kN) |
| Force in kN @ 5 Bar at Stroke of 25 mm | 31.8 |
| 43.8 | Load (at Design Height) at: 7 Bar (kN) |
| Force in kN @ 5 Bar at Stroke of 50% of Max Stroke | 45.1 |
| 37.1 | Natural Frequency (@5 Bar)(fn(Hz) |
| Force in kN @ 5 Bar at Stroke of Maximum Stroke | 2.3 |
| 22.2 | % of Isolation at Forced Frequency 7 Hz |
| Style Cross-Ref High Strength Style Number | 86.9 |
| 128-1 | % of Isolation at Forced Frequency 13 Hz |
| Material | 97 |
| 2-Ply Standard Cord | % of Isolation at Forced Frequency 25 Hz |
| END CLOSURE DETAILS | 99.2 |
| Bead plate Type | |
| 2 |
Goodyear Original:1B14-372
Fortunately, we have the opportunity to become one of the world's three major brands of Goodyear China regional agents, for the world's three major brand product quality we are affirmed. They are also our example has been learning in China, we are also trying to do their own brand of air spring product quality. Because we are Goodyear agents, and therefore also give customers more choices.
The usual below kinds of Goodyear air spring we have:
| Goodyear Air Spring OE NO. | Goodyear Air Spring OE Bellows NO. | Goodyear order NO. | Bumper or not | Goodyear Air Spring OE NO. |
| 1B14-350 | 57891235000004 | 20094305 | N | 1B14-350 Bellows Air Spring |
| 57891235000019 | 57891235000019 | 20094306 | Y | ENIDINE YI-1B14-350 |
| 57891235100000 | 57891235100000 | 20094308 | Y | 1B14-351 |
| 1B14-351 | 57891235100004 | 20094309 | N | 1B14-351 Bellows Air Spring |
| 57891235100019 | 57891235100019 | 20094310 | Y | ENIDINE YI-1B14-351 |
| 57891235200000 | 57891235200000 | 20094312 | Y | 1B14-352 |
| 1B14-352 | 57891235200004 | 20116210 | N | 1B14-352 |
| 57891235200019 | 57891235200019 | 20094313 | Y | ENIDINE YI-1B14-352 |
| 57891235300000 | 57891235300000 | 20094314 | Y | 1B14-353 |
| 1B14-353 | 57891235300004 | 20116211 | N | 1B14-353 |
| 57891235300019 | 57891235300019 | 20094315 | Y | ENIDINE YI-1B14-353 |
| 57891235800000 | 57891235800000 | 20094316 | Y | 1B14-358 |
| 1B14-358 | 57891235800004 | 20035777 | N | 1B14-358 Bellows Air Spring |
| 57891236200000 | 57891236200000 | 20094323 | Y | 1B14-362 |
| 57891236200004 | 57891236200004 | 20116212 | Y | 1B14-362 |
| 57891236200019 | 57891236200019 | 20094324 | Y | ENIDINE YI-1B14-362 |
| 57891236400000 | 57891236400000 | 20094325 | Y | 1B14-364 EXT |
| 1B14-364 | 57891236400004 | 20094326 | N | 1B14-364 |
| 57891236400019 | 57891236400019 | 20094327 | Y | ENIDINE YI-1B14-364 |
| 57891236800094 | 57891236800094 | 20811431 | Y | C 1B14-352 |
| 57891237100000 | 57891237100000 | 20094334 | Y | 1B14-371 |
| 57891237100019 | 57891237100019 | 20094335 | Y | ENIDINE YI-1B14-371 |
| 1B14-372 | 57891237200019 | 20106777 | Y | 1B14-372 |
| 57891237300000 | 57891237300000 | 20140234 | Y | 1B14-373 |
| 1B14-373 | 57891237300004 | 20140235 | N | 1B14-373 Bellows Air Spring |
| 57891237500000 | 57891237500000 | 20094336 | Y | 1B15-375 |
| 1B15-375 | 57891237500004 | 20116213 | N | 1B15-375 |
| 57891237500019 | 57891237500019 | 20094337 | Y | ENIDINE YI-1B15-375 |
| 1B15-376 | 57891237600000 | 20094338 | N | 1B15-376 |
| 57891237600004 | 57891237600004 | 20116214 | Y | 1B15-376 |
| 57891237600019 | 57891237600019 | 20094339 | Y | ENIDINE YI-1B15-376 |
| 57891237700000 | 57891237700000 | 20054258 | Y | 1B15-377 |
| 57891237700004 | 57891237700004 | 20116215 | Y | 1B15-377 |
| 57891237700019 | 57891237700019 | 20094340 | Y | ENIDINE YI-1B15-377 |
| 57891237800000 | 57891237800000 | 20094341 | Y | 1B15-378 |
| 57891237800004 | 57891237800004 | 20116216 | Y | 1B15-378 |
| 57891237800019 | 57891237800019 | 20094342 | Y | ENIDINE YI-1B15-378 |
| 57891256600000 | 57891256600000 | 20289281 | Y | 1B14-566 |
| 1B14-566 | 57891256600004 | 20289283 | N | 1B14-566 |
