Detailed Product Description
Material: Aluminum Alloy And Rubber GUOMAT: 215120H-1
Warranty: 12 Months Net Weight: 2.99 KG
Other Name: Air Spring Isolator Pressure Ability: 0.2-0.8 M Pa
Gross Weight: 3.5 KG Flange Ring: With
Connection Method: Flange Connection
High Light:

215120H-1 Air Helper Spring Kit

,

Air Helper Spring Kit 42MM Height

,

DIA 233MM Air Helper Spring Kit

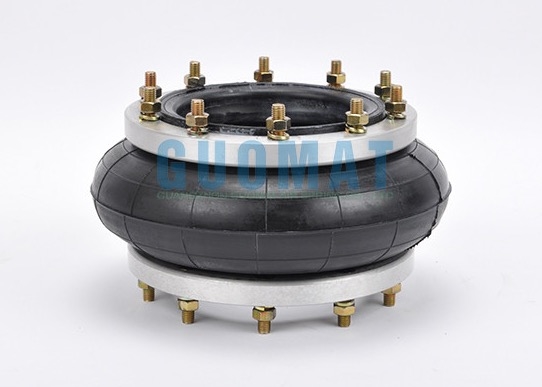

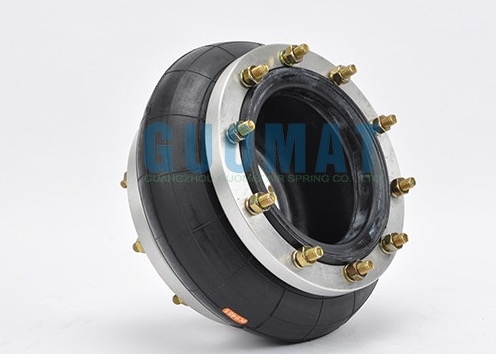

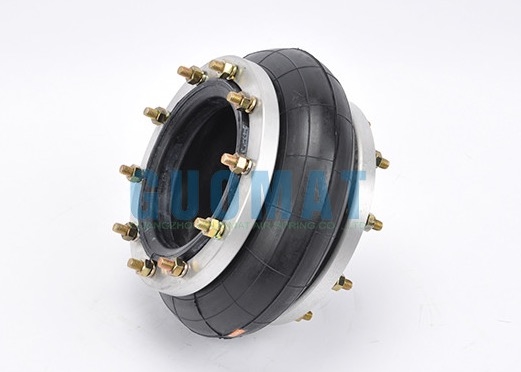

215120H-1 Industrial Air Spring For Aluminum Can Recycling Minimum Height 42MM MAX DIA.233MM





Guomat 215120H-1 Industrial Single Convoluted Air Spring Specifications



❶Nut / Blind Nut

The Long Of The Nut:25 mm

Top Cover Plate Screw number: 6 pcs

Bottom Cover Plate Screw number : 6 pcs

Top Cover Plate Screw (Nut) Tooth : M10

Bottom Cover Plate Screw (Nut) Tooth : M10

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2

❸ Cover Plate

Top Cover Plate Diameter: 195 mm

Bottom Cover Plate Diameter: 195 mm

❹Rubber Bellows

The Opening Of The Rubber Bellows:170 mm

The Through Diameter Of Rubber Bellows:125 mm

Rubber Bellows MAX Diameter : 233 mm

Rubber Bellows Natural Height :120 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

Without Girdle Hoop





Technical performance parameter list of 215120H-1 air spring:



Bearing
load
Power
(kg)
Inflation pressure 0.2MPa 0.3MPa 0.4MPa 0.5MPa 0.6MPa 0.7MPa 0.8MPa 0.7MPa
Volume(dm³)
Installation height
42(mm) 796 1124 1450 1779 2114 2459 2778 0.67
59(mm) 646 952 1257 1561 1875 2177 2483 1.27
76(mm) 514 783 1044 1324 1601 1860 2139 1.70
93(mm) 402 612 811 1039 1249 1477 1696 1.95
112(mm) 294 452 603 768 938 1109 1278 2.19
130(mm) 178 274 379 483 592 706 815 2.44
144(mm) 29 69 109 158 213 280 362 2.66
Stiffness and frequency at design height Vertical stiffness(Kg/cm) 120 162 205 261 307 355 401
Stiffness and frequency at design height Natural frequency Hz 3.20 2.99 2.92 2.92 2.86 2.83 2.80
Stiffness and frequency at design height Natural frequency cpm 192 179 175 175 171 169 168





Other kind of air springs models



Models NO. Load Design H. Min. H. Safe H. Full Stroke
320124H-1 2965 90 52 142 90
280126H-1 2370 94 50 195 94
260135H-1 1670 159 55 155 159
215120H-1 1109 98 42 140 98
188102H-1A 862 63 52 115 63
150076H-1 621 39 46 85 39
120060H-1 444 23 42 65 23
086060H-1 175 48 42 90 48





The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects





Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate



Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.



Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.



Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.



Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.



Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.





GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!





  • They almost do not need to maintain.
  • Increase the service life of tires and brake pads.
  • Let you pull anything; Eliminate expensive admission cost.
  • Greatly reduce the breakage of the other vehicle components and maintenance.
  • Back to you in the scrappage, truck and trailer with air suspension is more valuable.
  • Allow the perfect load balancing between axles; Allow you to run in one of the largest legal restrictions.
  • Reduce the discomfort and driver fatigue risk; Improve the efficiency of the driver's safety, and loyalty
  • To provide smooth to load, reduce the cost of expensive insurance claims and packaging.
