S-300-3 R Yokohama Air Spring Industrial Rubber Cushion

S-300-3 R Yokohama Air Spring Industrial Rubber Cushion

  • S-300-3 R Yokohama Air Spring Industrial Rubber Cushion
  • S-300-3 R Yokohama Air Spring Industrial Rubber Cushion
  • S-300-3 R Yokohama Air Spring Industrial Rubber Cushion
  • S-300-3 R Yokohama Air Spring Industrial Rubber Cushion
S-300-3 R Yokohama Air Spring Industrial Rubber Cushion
Product Details:
Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: F-300-3
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber And Stainless Steel Yokohama: S-300-3R
GUOMAT: F-300-3 Layer Number: 3 Convolution
Using Maximum Internal Pressure: 0.88 Mpa Vibration Frequency: 1.9 Hz
G.W.: 6.5 KG HS Code: 87088090
High Light:

F-300-3 Industrial Rubber Cushion

,

1.9 Hz Industrial Rubber Cushion

,

3 Convolution Industrial Rubber Cushion

S-300-3 R Yokohama Air Spring Refer To GUOMAT 300-3 Industrial Rubber Cushion





Weight and packing of S-300-3 R:



Net Weight:5.75 KG



Gross Weight:6.5 KG



Package Size:350mm*350mm*16mm



Compressed height:90mm

Maximum Height:215mm

Full stroke:125mm

Working medium:water, air

Working pressure:< 0.7Mpa

Burst pressure:> 1.6Mpa

Endurance cycle:> 10"

Temperature:-35 ~+60





Specifications of Replacing S-300-3 R:



Type Rubber Air spring Model NO. F-300-3
Car make Punching Press Package Carton/Cartons
Position Middle Warranty One year
Rubber type Natural rubber Place of origin Guangzhou China(main land)
Manufacturer part NO.

F-300-3

Net Weight 5.75 KG







GUOMAT F-300 Air Spring Catalogue items Detailed Parameter Table: Replace S-300-3 R





GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)
F-300-1 S-300-1 72 117 40 ±30 400
F-300-2 S-300-2 98 158 53 ±40 360
F-300-3 S-300-3 152 242 82 ±60 360
F-300-4 S-300-4 206 326 111 ±80 360





GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)
F-300-1 S-300-1 710 5.6 34.7 1180 2.8 0.69 2.9-3.9
F-300-2 S-300-2 710 7.4 34.7 745 2.3 0.88 3.9-4.9
F-300-3 S-300-3 710 11.2 34.7 490 1.9 0.88 3.9-4.9
F-300-4 S-300-4 710 15.5 34.7 324 1.5 0.88 3.9-4.9





Replace S-300-3 R This item can fits for many kinds of machines



  1. Actuators for concrete block machinery
  2. Mineral equipment air spring,
  3. Directional-change actuators in roller conveying systems
  4. Actuators for flask lifts on foundry shake-outs
  5. Mountain bike
  6. Actuators on bottle and carton filling machines
  7. Bin-tilting actuators (for ease of access)
  8. Paper machine equipment air spring air spring,
  9. Actuators on transfer tables
  10. Vibrating screen cover clamping device
  11. Actuators in sand blast rooms
  12. Actuators in glass grinding rooms
  13. Industrial laundry equipment actuators
  14. Crawling pipeline machine
  15.

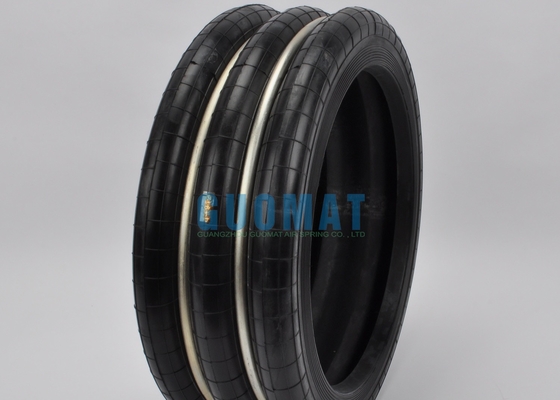

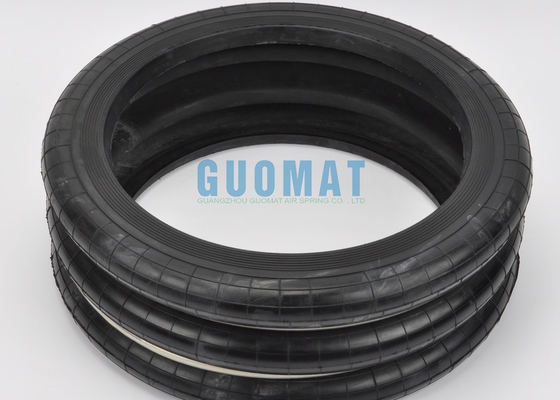

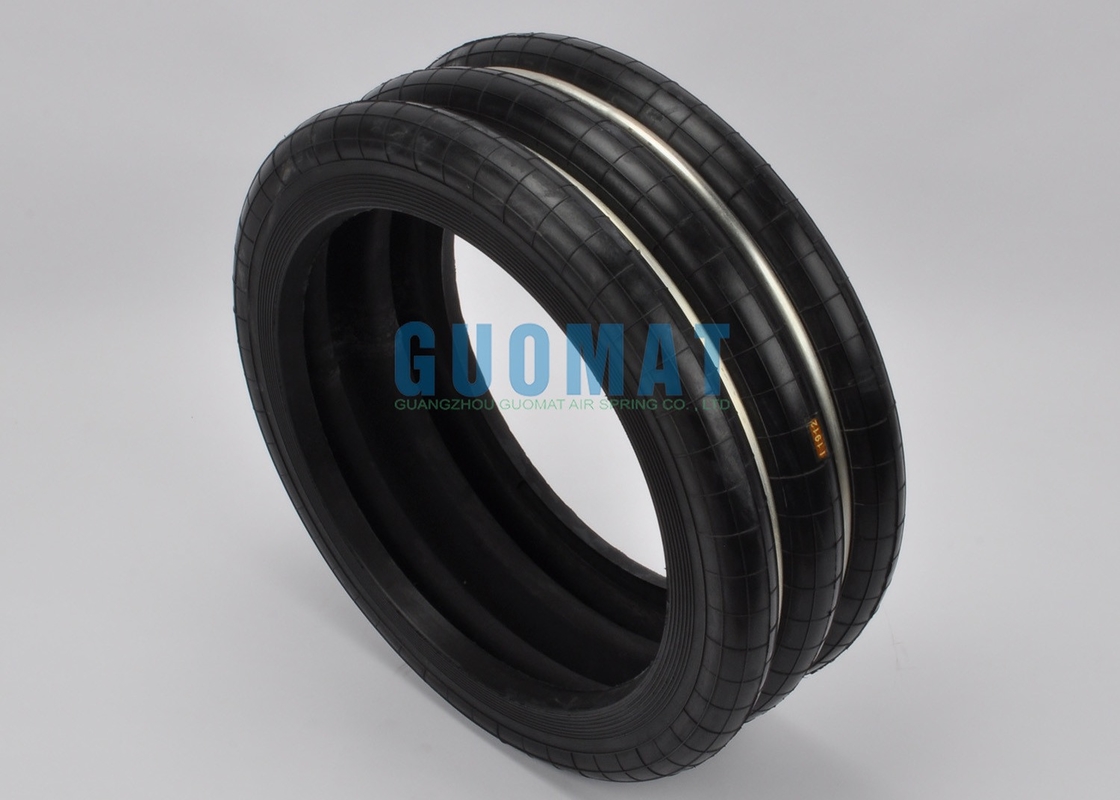

Real photos of GUOMAT 300-3 Replaces S-300-3 R:



S-300-3 R Yokohama Air Spring Industrial Rubber Cushion 0S-300-3 R Yokohama Air Spring Industrial Rubber Cushion 1
