| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | F-450-3R |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber And Stainless Steel | Yokohama: | S-450-3R |
|---|---|---|---|
| GUOMAT: | F-450-3 | Layer Number: | 3 Convolutions |
| Using Maximum Internal Pressure: | 0.69 Mpa | Vibration Frequency: | 1.8 Hz |
| HS: | 87088090 | Packing Size: | 173 Mm*500mm*500mm |
| High Light: | Yokohama Rubber Air Spring,S-450-3R Rubber Air Spring,0.69 Mpa Rubber Air Spring |
||

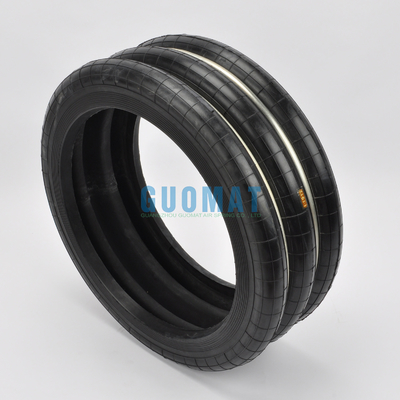

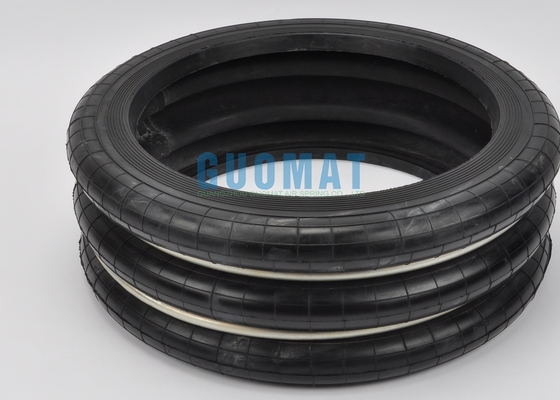

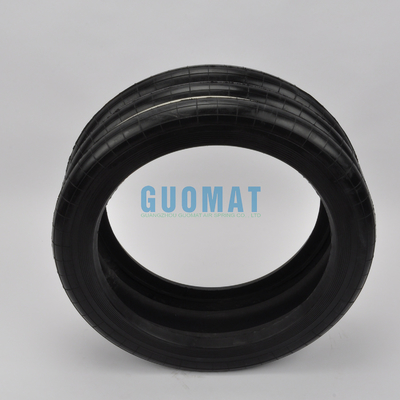

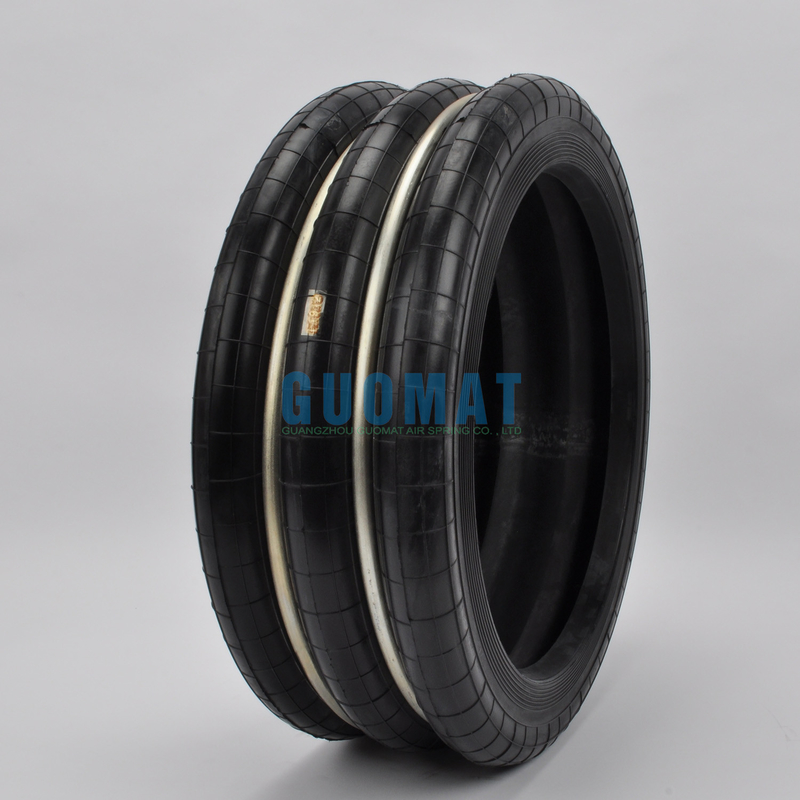

S-450-3R Yokohama Rubber Air Spring Replaces By GUOMAT 450-3 R For Paper Mills
GUOMAT 450-3 R Package Size and weight replaces S-450-3R Yokohama:
Net Weight:9.55 KG
Gross Weight:10.5 KG
Package Size:173 mm*500mm*500mm
This item GUOMAT 450-3 R Detailed Parameter Table:
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) | ||
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) | ||||
| F-450-3 | S-450-3 | 160 | 270 | 90 | ±68 | 510 |
| Standard Height,Internal Pressure 0.49 M pa When The General Value | Using Maximum Internal Pressure (M pa) | Internal Pressure (M pa) | ||||
| Effective Area (Cm2) | Volume(L) | Load (K n) | Dynamic Spring Parameters (N/Min) | Vibration Frequency (Hz) | ||
| 1590 | 24.3 | 80 | 1040 | 1.8 | 0.69 | 3.9-4.9 |
Lots of industria equipment use this air spring:
| Bearing load Power (kg) |
Inflation pressure | 0.2MPa | 0.3MPa | 0.4MPa | 0.5MPa | 0.6MPa | 0.7MPa | 0.8MPa | 0.7MPa Volume(dm³) |
|---|---|---|---|---|---|---|---|---|---|
| Installation height | |||||||||
| 110(mm) | 4016 | 6020 | 8025 | 9980 | 12036 | 14040 | 16000 | 18.70 | |
| 128(mm) | 3912 | 5935 | 7888 | 9837 | 11880 | 13829 | 15782 | 21.89 | |
| 146(mm) | 3792 | 5766 | 7736 | 9640 | 11638 | 13535 | 15490 | 24.95 | |
| 164(mm) | 3658 | 5569 | 7571 | 9374 | 11325 | 13170 | 15093 | 28.40 | |
| 180(mm) | 3554 | 5433 | 7322 | 9147 | 11039 | 12869 | 14800 | 31.21 | |
| 210(mm) | 3345 | 5097 | 6866 | 8594 | 10487 | 12242 | 14005 | 35.97 | |
| 235(mm) | 3123 | 4800 | 6468 | 8140 | 9859 | 11602 | 13292 | 40.51 | |
| Stiffness and frequency at design height | Vertical stiffness(Kg/cm) | 485 | 686 | 874 | 1020 | 1213 | 1398 | 1494 | |
| Stiffness and frequency at design height | Natural frequency Hz | 1.85 | 1.78 | 1.73 | 1.67 | 1.66 | 1.65 | 1.59 | |
| Stiffness and frequency at design height | cpm | 111 | 107 | 104 | 100 | 100 | 99 | 95 |
S-450-3R Yokohama Air Spring fits for the following Punch press:
GUOMAT air spring production of the air spring has the following advantages:
1, product quality, Thailand import natural rubber, the core technology in Germany
2, With the same price on the market, GUOMAT optimal quality. With the same quality of products, GUOMAT has lowest price.
3, cars, trucks, buses and industrial air spring has production, fully meet the customers' different requirements.
4, GUOMAT spell price, not only do the brand.
5, more than 10 years of production technology, products cover all over the world.
6, have dealers around the world, the first response to all customer requirements.
