| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 255322J-3 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | GUOMAT: | 255322J-3 |
|---|---|---|---|
| 0.7Mpa Max: | 270mm | Gas Hole / Air Inlet: | 1/4 |
| Cover Plate Diameter (Width): | 160 Mm | Compressed Height: | 118 MM |
| Safe Height: | 400 Mm | ||
| High Light: | Triple Convolutions Air Lift Bag,255322J-3 Industrial Air Spring,Air Lift Bag 255322J-3 |
||

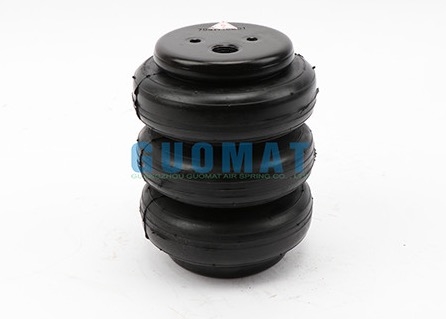

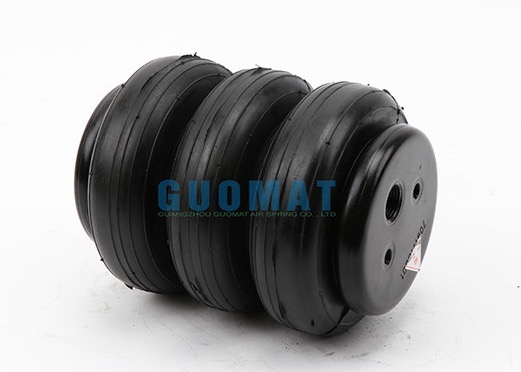

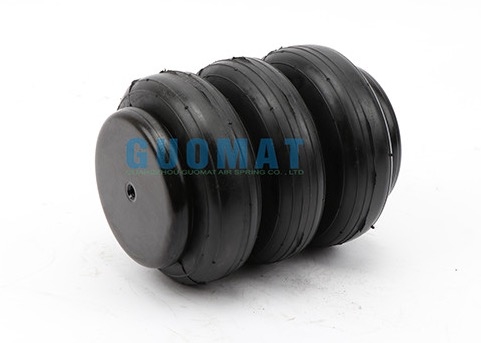

255322J-3 Industrial Air Spring Triple Convolutions Air Lift Bag 0.7Mpa Max 270mm
| Cross Manufacturer | Cross OEM |
| GUOMAT | 255322J-3 |

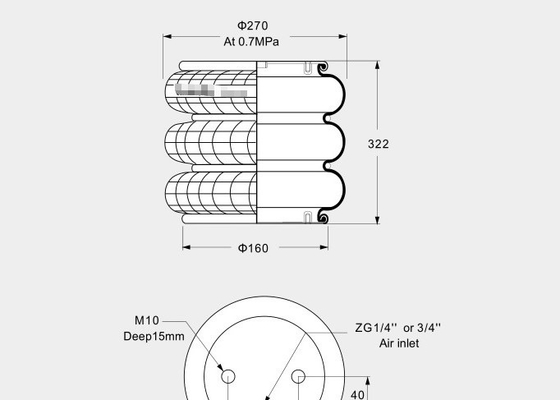

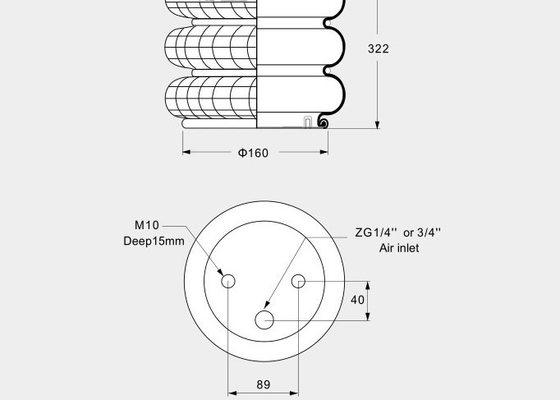

❶Bolts
Top Cover Plate Screw (Nut) Tooth : 4 pcs X M10-15 Deep
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X M10-15 Deep
Screw Center Distance of Bottom Cover Plate : 89 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/4 Or G3/4
Center Distance Between Nut and Air inlet: 40mm
❸ Cover Plate
Top Cover Plate Diameter (Width): 160 mm
Bottom Cover Plate Diameter (Width): 160 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter : 270mm
Compressed Height: 118 mm
Maximum Height: 400 mm
Working Stroke : 282mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :2 Pieces of Girdle Hoop
|
0.7Mpa Max
|
270 mm |
| Path | 200 mm |
| Compressed height | 118mm |
| Maximum Height | 400mm |
| Full stroke | 282mm |
| Working medium | water, air |
| Working pressure | No more than 0.7Mpa |
| Burst pressure | > 1.6Mpa |
| Endurance cycle | > 10" |
| Temperature | - 35 ~+60 |
