| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B4.5X2 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Aluminum Alloy And Rubber | GUOMAT: | 2B4.5X2 |
|---|---|---|---|
| Warranty: | 12 Months | Net Weight: | 5.35 KG |
| Other Name: | Air Isolator | Pressure Ability: | 0.2-0.8 M Pa |
| Gross Weight: | 1.5 KG | Flange Ring: | With |
| Connection Method: | Flange Connection | ||
| High Light: | Norgren Pm/31042 Inidustrial Air Springs,Norgren Pm/31042 Inidustrial Air Springs,W01-R58-4050 Air Ride Suspension Parts |
||

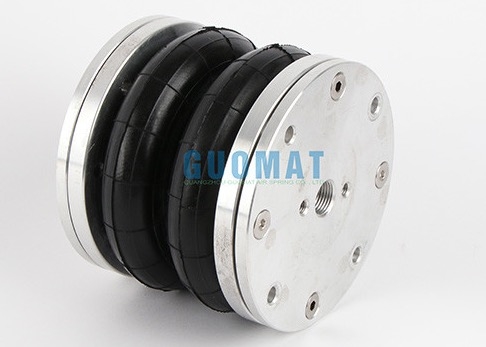

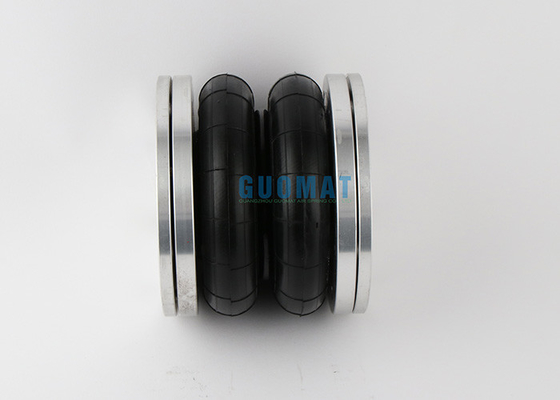

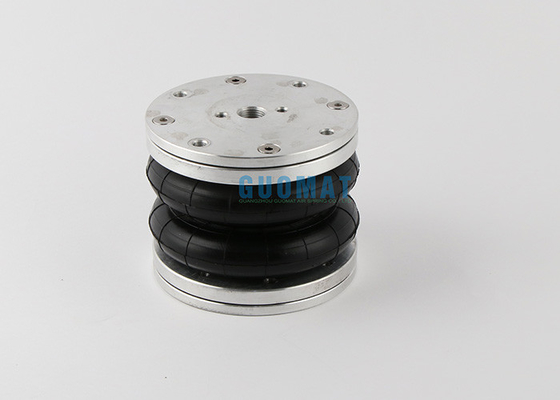

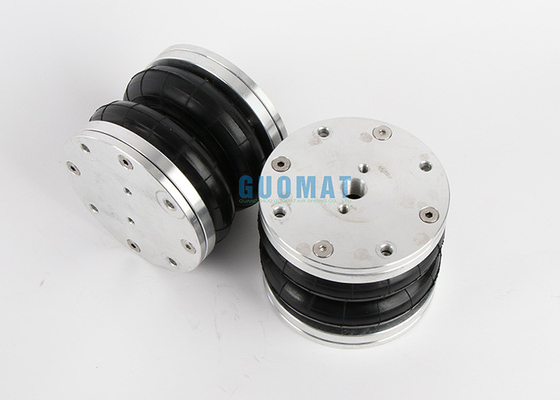

Norgren Pm/31042 Inidustrial Air Springs W01-R58-4050 Norgren 4.5X2 Air Ride Suspension Parts
Norgre bellows are very effective vibration isolators, suitable for many types of equipment. By carefully choosing a bellows with the correct natural frequency, they can significantly reduce the vibrations transmitted in most industrial and commercial applications.
Range: PM / 31000
Medium: compressed air
Operation mode: single action
Stroke length: 80 mm
Stomatal size: G3/8
Nominal diameter: 4-1/2"
Convolution number: 2
Operation mode: single action
Working pressure: 0 ... 8 bar
Working temperature: -30 ... 50°C
Stroke length: 80 mm
Theoretical power: 5750 N
Certification-REACH: available on request
Certification-RoHS compliant: available on request
Certification-IOS: 9001
Classification-eClass 11: 51010390
Classification-HS Code: 84123100
Classification-HTS code: 8412310000
Classification-UNSPCS code: 31251504
Size-Diameter: 125.0 mm
Size-Length: 65.0 mm
Size-weight: 0.950 kg
Size-Unit of Measurement: EA
Performance-shelf life: 5 years

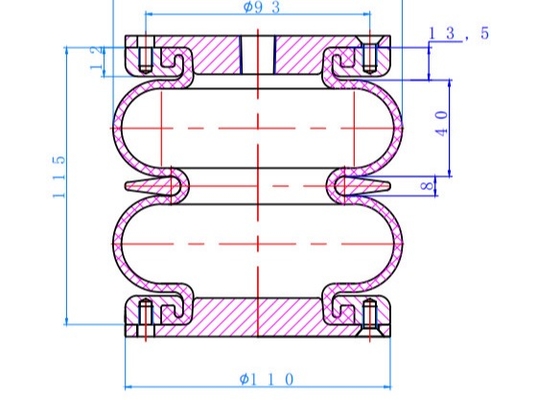

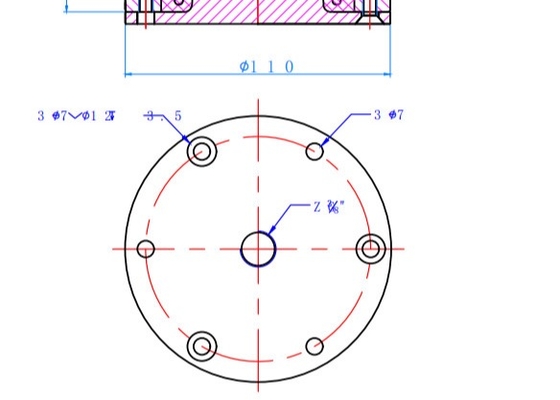

Guomat 2B4.5X2 Industrial Double Convoluted Air Spring Specifications
❶Nut / Blind Nut
The Long Of The Nut:13.5 mm
Top Cover Plate Screw number: 4 pcs
Bottom Cover Plate Screw number : 4 pcs
Top Cover Plate Screw (Nut) Tooth : M10
Screw Center Distance of Top Cover Plate : 93mm
Bottom Cover Plate Screw (Nut) Tooth : M10
Screw Center Distance of Bottom Cover Plate : 93mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G3/8
❸ Cover Plate
Top Cover Plate Diameter: 110 mm
Bottom Cover Plate Diameter: 110 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter : 120mm
Rubber Bellows Natural Height :115 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop: one piece of Girdle Hoop
The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects
❶Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate
❷ Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.
❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.
❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.
❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.
❻ Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.
GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!
| Flange connection type of air spring model comparison table | |||
| GUOMAT NO. | Contitech NO. | GUOMAT NO. | Contitech NO. |
| FS22-3DICR | FS 22-3 DI CR | FS960-12RS | FS 960-12 RS |
| FS44-5DICR | FS 44-5 DI CR | FS1330-11RS | FS 1330-11 RS |
| FS76-7DICR | FS 76-7 DI CR | FS1710-12RS | FS 1710-12 RS |
| FS76-7DSCR | FS 76-7 DS CR | FS2870-16RS | FS 2870-16 RS |
| FS138-8DS | FS 138-8 DS | FS5450-16RS | FS 5450-16 RS |
| FS210-10DS | FS 210-10 DS | FD960-22RS | FD 960-22 RS |
| FS412-10DS | FS 412-10 DS | FD1120-30RI | FD 1120-30 RI |
| FS614-13DS | FS 614-13 DS | FD1330-25RS | FD 1330-25 RS |
| FS816-15DS | FS 816-15 DS | FD1710-25RS | FD 1710-25 RS |
| FD22-4DICR | FD 22-4 DI CR | FD1730-40RI | FD 1730-40 RI |
| FD44-10DICR | FD 44-10 DI CR | FD2380-24RS | FD 2380-24 RS |
| FD76-14DICR | FD 76-14 DI CR | FD2470-40RI | FD 2470-40 RI |
| FD76-14DSCR | FD 76-14 DS CR | FD2870-30RS | FD 2870-30 RS |
| FD138-18DS | FD 138-18 DS | FD5450-28RS | FD 5450-28 RS |
| FD209-21DS | FD 209-21 DS | FT960-34RS | FT 960-34 RS |
| FD210-22DS | FD 210-22 DS | FT1330-35RS | FT 1330-35 RS |
| FD412-18DS | FD 412-18 DS | FT1710-38RS | FT 1710-38 RS |
| FD614-26DS | FD 614-26 DS | FT2870-45RS | FT 2870-45 RS |
| FD816-30DS | FD 816-30 DS | FT5450-44RS | FT 5450-44 RS |
| FT22-6DICR | FT 22-6 DI CR | ||
| FT44-15DICR | FT 44-15 DI CR | ||
| FT76-20DICR | FT 76-20 DI CR | ||
| FT76-20DSCR | FT 76-20 DS CR | ||
| FT138-26DS | FT 138-26 DS | ||
| FT210-32DS | FT 210-32 DS | ||
| FT412-32DS | FT 412-32 DS | ||
| FT614-36DS | FT 614-36 DS | ||
| FT816-40DS | FT 816-40 DS | ||
