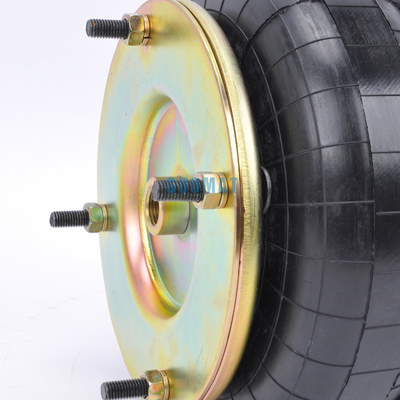

DUNLOP SP 2623 10X1 Steel Double Convoluted Air Bag W01-R58-4057

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B10X1

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union,Paypal or Others
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Steel Cover Plate , Rubber Bellows	GUOMAT NO.:	2B10x1
Bellows NO .:	Springride DF 10" X 1 /10x1	Norgen:	M/31101 (10x1)
Plate Dia.:	210 Mm	Pressure Ability:	0.2-0.8 MPa
Air Inlet:	G1/2	Weight:	4.0 KG
Highlight:	air rite air bags W01-R58-4057 , Steel Double Convoluted Air Bag , SP 2623 air rite air bags

DUNLOP SP 2623 Industrial Air Spring 10X1 Steel Double Convoluted Air Bag W01-R58-4057

OEM Cross reference:

GUOMAT:1B10x1
DUNLOP FR SP 2623(10x1)
NORGREN M/31101 (10x1)10 X 1
Firestone:W01-R58-4057

Firestone:W01 R58 4057

Firestone:W01R584057
DUNLOP SP 2623

Can replace the following air bags (bladder cylinder, gas spring)

Firestone: W01-R58-4057 / W01 R58 4057 / W01R584057

Firestone style: 10 ”x1/ 10” x1 / 10x1

Dunlop France: SP2623

Specifications and Detail Technical Parameters:Style10" x1

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4pcs X M10

Distance between two bolts:181mm

Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10

Distance between two bolts:181mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2

❸ Cover Plate

Top Cover Plate Diameter (Width): 210 mm

Bottom Cover Plate Diameter (Width): 210 mm

Material top and bottom plate:Steel

❹Rubber Bellows

Stroke of Rubber Bellows:50mm-120m

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Rubber material Standard up to 70°C natural rubber

Other kinds of model air bellows:

W01-R58-4081 (2 3/4" x3)
W01-R58-4051 Dunlop Style 4,5 " x 2
W01-R58-4052 - (6" x1 steel)
Firestone W01-R58-4057 - (10 x1 steel)
Firestone W01-R58-4027 - 8x2 (Epichlorhydrin / Herclor)
Firestone W01-R58-4090 - 8"x2 Butyl
Firestone W01-R58-4055 - 8x2 Steel
Firestone W01-R58-4060 (12 x1 steel)

Firestone W01-R58-4077 (12 x1 Herclor )
Firestone W01-R58-4056 -8"x3 Steel
Firestone W01-R58-4062 (12 x3 Steel)
Firestone W01-R58-4065 (14 1/2 x3 Steel)
Firestone W01-R58-4098 (14 1/2 x1 Herclor)
Firestone W01-R58-4097 (14" 1/2 x2 Herclor)
Firestone W01-R58-4025 - (10" x1 Epichlorhydrin/Herclor)
Firestone W01-R58-4078 - (6 x1 Alu )
Firestone W01-R58-4070 - (6 x 2 Alu )
Firestone W01-R58-4053 - (6 x 2 Steel )
Firestone W01-R58-4059 - (10" x3 steel)
Firestone W01-R58-4054 - 8x1 Steel
Firestone W01-R58-4028 - 8"x1 Epichlorhydrin
Spar Part Bellow 8"x2 W01-R58-4045
Firestone W01-R58-4064 -14" 1/2 x2
Firestone W01-R58-4063 -14 1/2 x1
Bellow only 8" x 1 -- W01-R58-4085
Firestone W01-R58-4048
W01-R58-4080 - 2 3/4" x 2
Firestone W01-R58-4060- 12" x2 steel
Firestone W01-R58-4070 - (6 x 2 V2a )
Firestone W01-R58-4051E 4,5 x 2 Stainless Steel
Firestone W01-R58-4050
W01-R58-4080 - 2 3/4" x 1

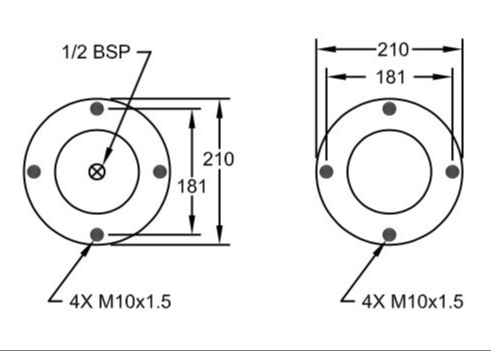

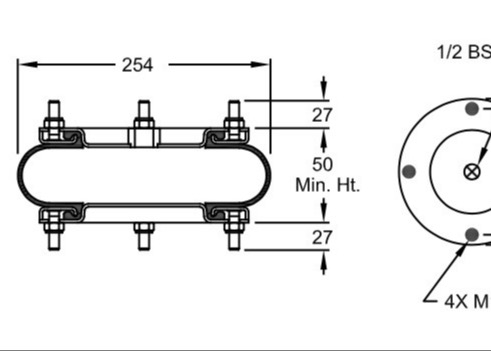

The drawing of GUOMAT:1B10x1:

DUNLOP SP 2623 10X1 Steel Double Convoluted Air Bag W01-R58-4057 0

Other models of ZF air springs:

Air Spring NO.	Load	Design H.	Min. H.	Safe Elongation	Full Stroke
350110ZF-2			65	130	65
250110ZF-2			65	130	65
500110ZF-2	11400	50	80	130	50
280110ZF-2	3009	65	60	125	65
200110ZF-2	1270	65	60	125	65
160110ZF-2	676	65	60	125	65
140110ZF-2	450	65	60	125	65

164152MF-3			80	180
110085MF-3			60	110	50
580180ZF-3			100	220	120
420210ZF-3			100	255
350170ZF-3			90	215	125
250170ZF-3			90	210	120
620210ZF-3	17430	120	120	240	120
530180ZF-3	12869	115	100	215	115
400180ZF-3	6901	115	100	215	115
280170ZF-3	2971	130	90	210	130
200170ZF-3	1221	130	80	210	130
110070ZF-3	453	41	50	91	41

140214MF-4			100	255
620285ZF-4	16972	185	145	330	185
420245ZF-4	4384	170	150	320	170
