| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B53014-3/4 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Steel | Phoenix: | SP1B34 |
|---|---|---|---|
| Warranty: | 1 Year | Net Weight: | 7.25 Kg |
| Other Names: | Air Vibration Industrial Shock Absorbers | Pressure Ability: | 0.2-0.8 M Pa |
| Size: | 39*39*12 | Gross Weight: | 8.05 Kg |
| High Light: | Rubber Steel Phoenix Air Spring,Single Bellows Phoenix Air Spring,SP1B34 Phoenix Air Spring |
||

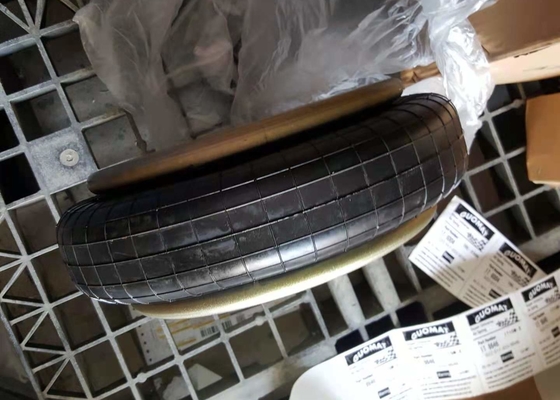

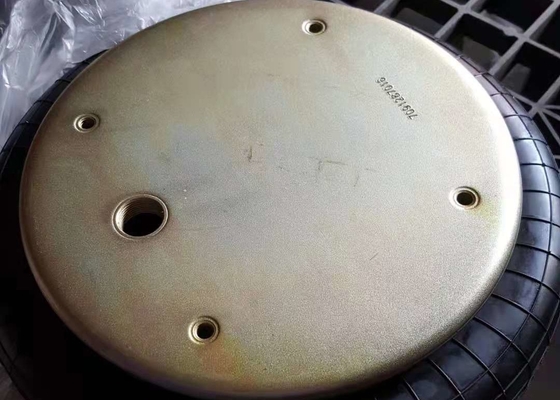

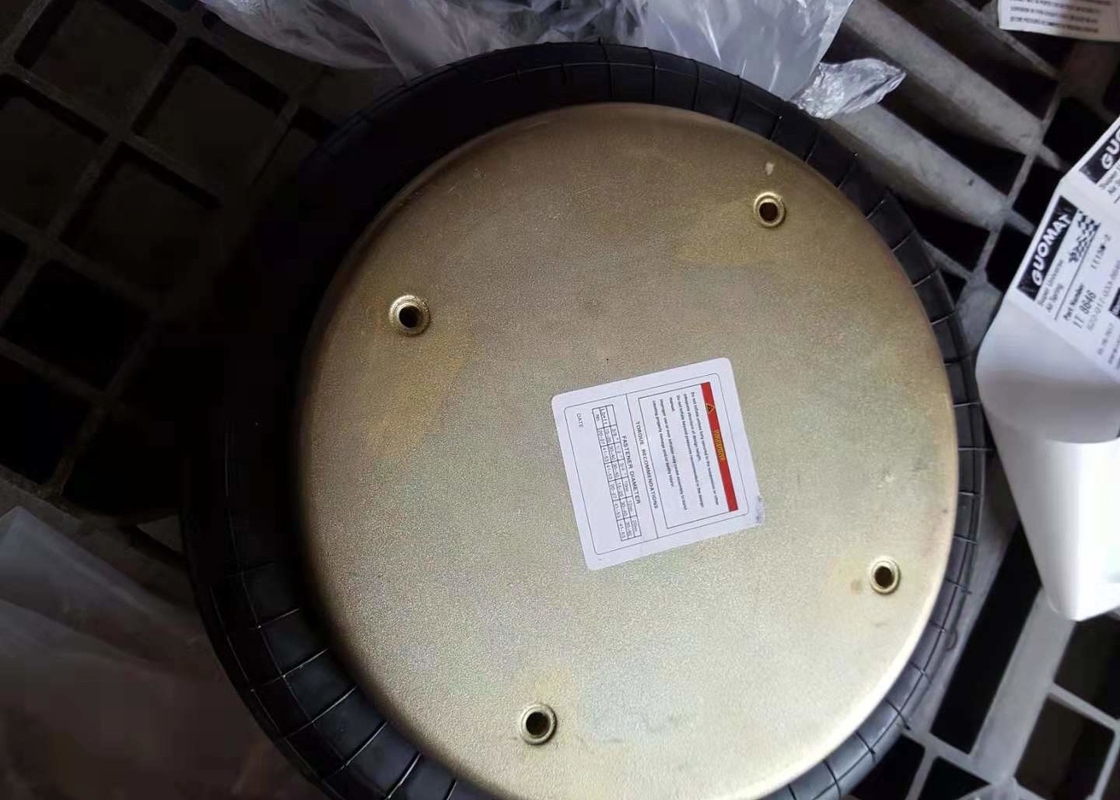

Phoenix Air Spring SP1B34 Industrial Single Convoluted Bellows SP 1 B 34
OEM Original Equipment Manufacturer:
| References Numbers |
| Phoenix : SP 1 B 34 Phoenix : SP1B34 |
| GUOMAT:1B53014-3/4 |

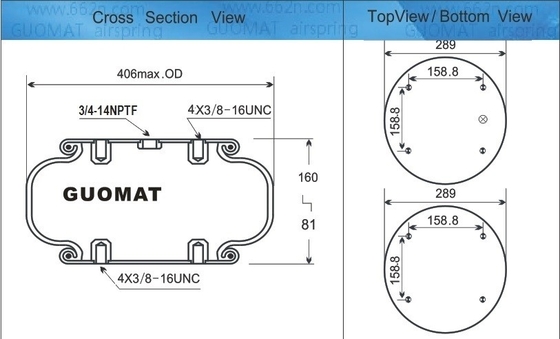

| Technical data OF SP 1 B 34 | |
| Loading capacity max. (7 bar) | 54.14 kN |
| Max. lifting pressure | 8.0 bar |
| Diameter max. | 400 mm |
| Required space Ø | 435 mm |
| Height max. | 180 mm |
| Height min, | 55 mm |
| Weight | 7.25 kg |
| Force to collapse to min. height |
The usal kinds of Single Convolution Air Actuator
| Single Convolution Air Actuator | ||||
| All Measurements Are In Mm | ||||
| GUOMAT NO. | Contitech NO. | Min. Design height | Installation Space Required | Max. Stroke |
| 1B4060 | FS 40-6 | 50 | 160 | 60 |
| 1B5050 | FS 50-5 | 51 | 165 | 44 |
| 1B7070 | FS 70-7 | 51 | 180 | 64 |
| 1B10010 | FS 100-10 | 51 | 225 | 94 |
| 1B1209 | FS 120-9 | 50 | 230 | 85 |
| 1B1210 | FS 120-10 | 51 | 245 | 99 |
| 1B12012 | FS 120-12 | 51 | 250 | 119 |
| 1B20010 | FS 200-10 | 51 | 265 | 89 |
| 1B33011 | FS 330-11 | 51 | 340 | 99 |
Air springs have successfully solved actuating problems,in many applications including:
Lift lifting equipment,
Gasbag press equipment,
Vibration conveyer air spring,
Vibrating screen equipment air spring,
Air hammer
Air spring vibration testing machine
Casting machinery,
4 d cinema seats air spring,
Air spring press equipment,
Air spring vibration isolation equipment testing platform,
Isolation instrument air spring,
Bus stop air spring,
Marble shake air spring,
Laundry dryer air spring equipment,
Amusement equipment, air spring,
Merry-go-round air spring,
Papermaking machinery air spring,
Punching equipment air spring,
Machine tool equipment air spring,
Silk screen equipment mechanical air spring and air spring,
Leather shock vibration sieve air spring air spring,
Mining equipment,
Pipeline equipment air spring,
Watercrafts air spring
The Industrial Equipment use the Air Spring
Gate Valve Operation
Gluing Press
Web Tensioning Device
Missile Assembly Fixture
Die Stripper
Knife Spring Actuator
