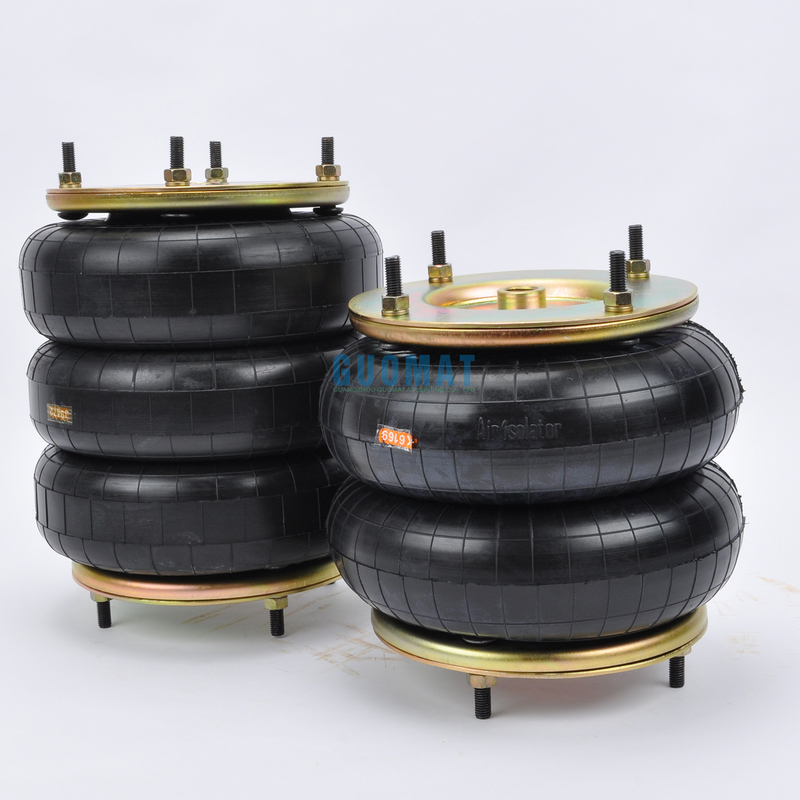

Firestone Air Helper Spring W01-R58-4038 DUNLOP SP2782NB GUOMAT 2B4038

Firestone Air Helper Spring W01-R58-4038 DUNLOP SP2782NB GUOMAT 2B4038

  • Firestone Air Helper Spring W01-R58-4038 DUNLOP SP2782NB GUOMAT 2B4038
  • Firestone Air Helper Spring W01-R58-4038 DUNLOP SP2782NB GUOMAT 2B4038
  • Firestone Air Helper Spring W01-R58-4038 DUNLOP SP2782NB GUOMAT 2B4038
Firestone Air Helper Spring W01-R58-4038 DUNLOP SP2782NB GUOMAT 2B4038
Product Details:
Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 2B12X2
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows GUOMAT NO.: 2B4038
Bellows NO .: Springride DF 12" X2 Firestone: W01-R58-4038
Diameter Max At 7 Bar: 265 Mm Pressure Ability: 0.2-0.8 MPa
Stroke: 325 Mm Air Inlet: M16X1.5
High Light:

Firestone Air Helper Spring W01-R58-4038

,

GUOMAT 2B4038 Air Helper Spring

,

Air Helper Spring DUNLOP SP2782NB

Firestone W01-R58-4038 Industrial Air Spring DUNLOP SP2782NB GUOMAT 2B4038





GUOMAT 2B4038 Cross other OEM:



Rubber NO.12 X 2

Firestone:W01-R58-4038

Firestone:W01 R58 4038

Firestone:W01R584038

Weight:7,07 KG

FRUEHAUF M078246

LOHR A06030622

GIGANT
BENALU M078246

DUNLOP SP2782NB

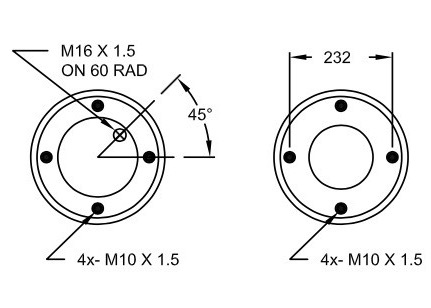

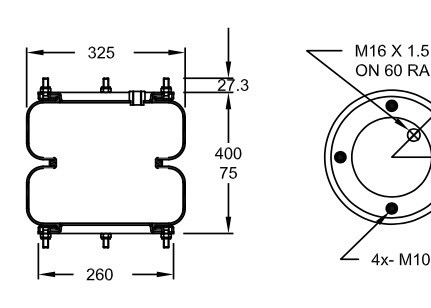

Specifications and Detail Technical Parameters:Style12" x2



Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth :  4pcs X M10



Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : M16X1.5



Cover Plate

Top Cover Plate Diameter (Width): 260 mm



Bottom Cover Plate Diameter (Width): 260 mm



Material top and bottom plate:Steel



Rubber Bellows



Stroke of Rubber Bellows:75mm-400m



Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop





Other kinds of model air bellows:



W01-R58-4081 (2 3/4" x3)
W01-R58-4051 Dunlop Style 4,5 " x 2
W01-R58-4052 - (6" x1 steel)
Firestone W01-R58-4057 - (10 x1 steel)
Firestone W01-R58-4027 - 8x2 (Epichlorhydrin / Herclor)
Firestone W01-R58-4090 - 8"x2 Butyl
Firestone W01-R58-4055 - 8x2 Steel
Firestone W01-R58-4060 (12 x1 steel)

Firestone W01-R58-4077 (12 x1 Herclor )
Firestone W01-R58-4056 -8"x3 Steel
Firestone W01-R58-4062 (12 x3 Steel)
Firestone W01-R58-4065 (14 1/2 x3 Steel)
Firestone W01-R58-4098 (14 1/2 x1 Herclor)
Firestone W01-R58-4097 (14" 1/2 x2 Herclor)
Firestone W01-R58-4025 - (10" x1 Epichlorhydrin/Herclor)
Firestone W01-R58-4078 - (6 x1 Alu )
Firestone W01-R58-4070 - (6 x 2 Alu )
Firestone W01-R58-4053 - (6 x 2 Steel )
Firestone W01-R58-4059 - (10" x3 steel)
Firestone W01-R58-4054 - 8x1 Steel
Firestone W01-R58-4028 - 8"x1 Epichlorhydrin
Spar Part Bellow 8"x2 W01-R58-4045
Firestone W01-R58-4064 -14" 1/2 x2
Firestone W01-R58-4063 -14 1/2 x1
Bellow only 8" x 1 -- W01-R58-4085
Firestone W01-R58-4048
W01-R58-4080 - 2 3/4" x 2
Firestone W01-R58-4060- 12" x2 steel
Firestone W01-R58-4070 - (6 x 2 V2a )
Firestone W01-R58-4051E 4,5 x 2 Stainless Steel
Firestone W01-R58-4050
W01-R58-4080 - 2 3/4" x 1





Other models of ZF air springs:





Air Spring NO. Load Design H. Min. H. Safe Elongation Full Stroke
350110ZF-2     65 130 65
250110ZF-2     65 130 65
500110ZF-2 11400 50 80 130 50
280110ZF-2 3009 65 60 125 65
200110ZF-2 1270 65 60 125 65
160110ZF-2 676 65 60 125 65
140110ZF-2 450 65 60 125 65

164152MF-3     80 180
110085MF-3     60 110 50
580180ZF-3     100 220 120
420210ZF-3     100 255
350170ZF-3     90 215 125
250170ZF-3     90 210 120
620210ZF-3 17430 120 120 240 120
530180ZF-3 12869 115 100 215 115
400180ZF-3 6901 115 100 215 115
280170ZF-3 2971 130 90 210 130
200170ZF-3 1221 130 80 210 130
110070ZF-3 453 41 50 91 41

140214MF-4     100 255
620285ZF-4 16972 185 145 330 185
420245ZF-4 4384 170 150 320 170



Firestone Air Helper Spring W01-R58-4038 DUNLOP SP2782NB GUOMAT 2B4038 0
