| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B4073 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | GUOMAT NO.: | 2B4073 |
|---|---|---|---|
| Bellows NO .: | Springride DF 12" X2 | Firestone: | W01-R58-4073 |
| Natural Diameter: | 260 Mm | Pressure Ability: | 0.2-0.8 MPa |
| Stroke: | 166 Mm | Air Inlet: | M16X1.5 |
| High Light: | SMB M063796 Industrial Air Bag Spring,DUNLOP SP2665NB firestone air spring kit,2B4073 Air Bag Spring |
||

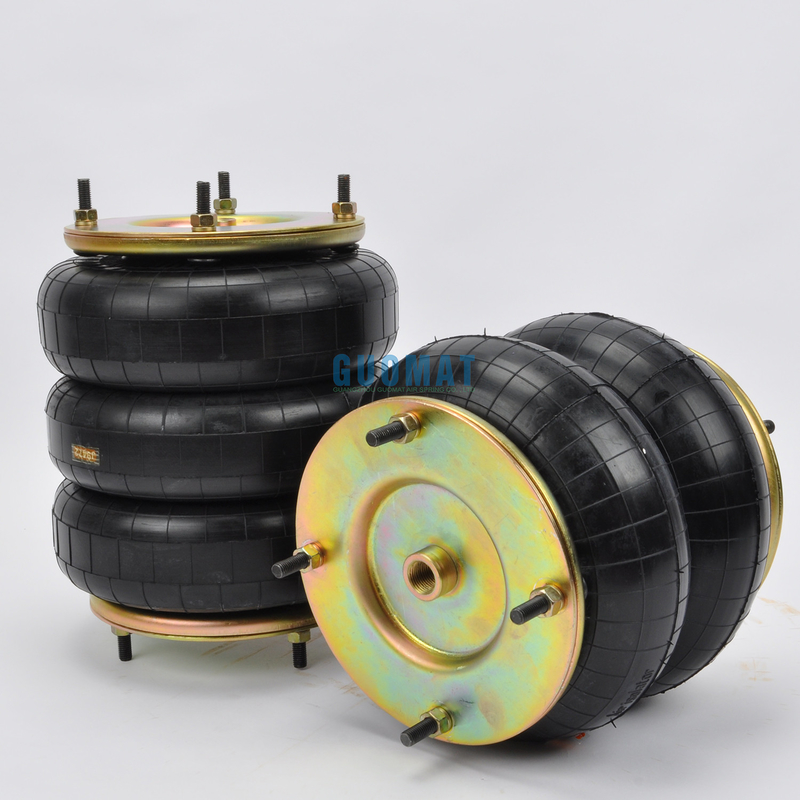

Industrial Air Spring Firestone W01-R58-4073 DUNLOP SP2665NB SMB M063796
GUOMAT 2B4038 Cross other OEM:
Rubber NO.12 X 2
Firestone:W01-R58-4073
Firestone:W01 R58 4073
Firestone:W01R584073
Weight:6,87 KG
DUNLOP SP2665NB
FRUEHAUF UJB 0985/A
SMB M063796
LOHR A06030601
TROUILLET HB10350
GRANNING 15814

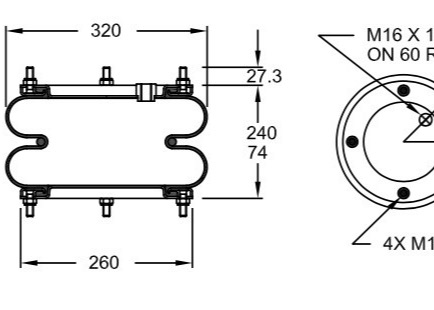

Specifications and Detail Technical Parameters:Style12" x2

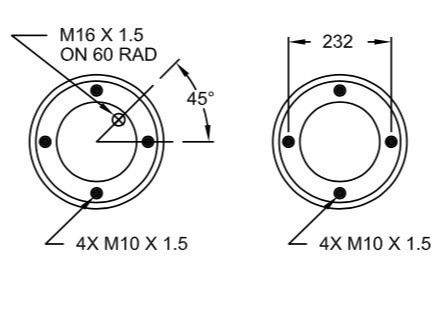

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcs X M10
Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : M16X1.5
❸ Cover Plate
Top Cover Plate Diameter (Width): 260 mm
Bottom Cover Plate Diameter (Width): 260 mm
Material top and bottom plate:Steel
❹Rubber Bellows
Stroke of Rubber Bellows:74mm-240m
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Other kinds of model air bellows:
W01-R58-4081 (2 3/4" x3)
W01-R58-4051 Dunlop Style 4,5 " x 2
W01-R58-4052 - (6" x1 steel)
Firestone W01-R58-4057 - (10 x1 steel)
Firestone W01-R58-4027 - 8x2 (Epichlorhydrin / Herclor)
Firestone W01-R58-4090 - 8"x2 Butyl
Firestone W01-R58-4055 - 8x2 Steel
Firestone W01-R58-4060 (12 x1 steel)
Firestone W01-R58-4077 (12 x1 Herclor )
Firestone W01-R58-4056 -8"x3 Steel
Firestone W01-R58-4062 (12 x3 Steel)
Firestone W01-R58-4065 (14 1/2 x3 Steel)
Firestone W01-R58-4098 (14 1/2 x1 Herclor)
Firestone W01-R58-4097 (14" 1/2 x2 Herclor)
Firestone W01-R58-4025 - (10" x1 Epichlorhydrin/Herclor)
Firestone W01-R58-4078 - (6 x1 Alu )
Firestone W01-R58-4070 - (6 x 2 Alu )
Firestone W01-R58-4053 - (6 x 2 Steel )
Firestone W01-R58-4059 - (10" x3 steel)
Firestone W01-R58-4054 - 8x1 Steel
Firestone W01-R58-4028 - 8"x1 Epichlorhydrin
Spar Part Bellow 8"x2 W01-R58-4045
Firestone W01-R58-4064 -14" 1/2 x2
Firestone W01-R58-4063 -14 1/2 x1
Bellow only 8" x 1 -- W01-R58-4085
Firestone W01-R58-4048
W01-R58-4080 - 2 3/4" x 2
Firestone W01-R58-4060- 12" x2 steel
Firestone W01-R58-4070 - (6 x 2 V2a )
Firestone W01-R58-4051E 4,5 x 2 Stainless Steel
Firestone W01-R58-4050
W01-R58-4080 - 2 3/4" x 1
