W01-R58-4046 Firestone Rubber Industrial Air Spring DUNLOP 12 X 3 NEUMATIS DB1235

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2B4046

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union,Paypal or Others
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Steel Cover Plate , Rubber Bellows	GUOMAT NO.:	2B4046
Bellows NO .:	Springride DF 12" X3	Firestone:	W01-R58-4046

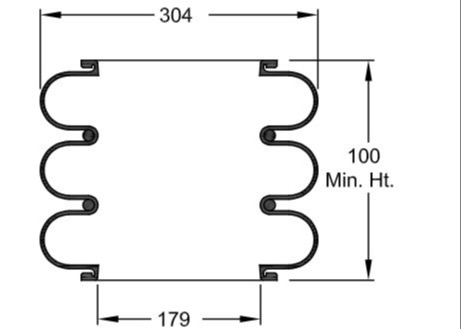

Natural Diameter:	304 Mm	Pressure Ability:	0.2-0.8 MPa
Stroke:	330 Mm	Open DIA.:	179 MM
Highlight:	Industrial Air Spring W01-R58-4046 , DUNLOP 12 X 3 Industrial Air Spring , DB1235 Industrial Air Spring

W01-R58-4046 Firestone Rubber Bags DUNLOP 12 x 3 NEUMATIS DB1235 Air Spring

GUOMAT 2B4046 Cross other OEM:

Rubber NO.12 X 3

Firestone:W01-R58-4046

Firestone:W01 R58 4046

Firestone:W01R584046

Weight:6,64 KG

DUNLOP 12 x 3

PNEUMATIS DB1235

Specifications and Detail Technical Parameters:Style12" x3

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : -

Bottom Cover Plate Screw (Nut) Tooth : -

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : -

❸ Cover Plate

Top Open Diameter (Width): 179 mm

Bottom Open Diameter (Width): 179 mm

Material top and bottom :rubber

❹Rubber Bellows

Stroke of Rubber Bellows:100mm-430m

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :twoPieces of Girdle Hoop

Other kinds of model air bellows:

W01-R58-4081 (2 3/4" x3)
W01-R58-4051 Dunlop Style 4,5 " x 2
W01-R58-4052 - (6" x1 steel)
Firestone W01-R58-4057 - (10 x1 steel)
Firestone W01-R58-4027 - 8x2 (Epichlorhydrin / Herclor)
Firestone W01-R58-4090 - 8"x2 Butyl
Firestone W01-R58-4055 - 8x2 Steel
Firestone W01-R58-4060 (12 x1 steel)

Firestone W01-R58-4077 (12 x1 Herclor )
Firestone W01-R58-4056 -8"x3 Steel
Firestone W01-R58-4062 (12 x3 Steel)
Firestone W01-R58-4065 (14 1/2 x3 Steel)
Firestone W01-R58-4098 (14 1/2 x1 Herclor)
Firestone W01-R58-4097 (14" 1/2 x2 Herclor)
Firestone W01-R58-4025 - (10" x1 Epichlorhydrin/Herclor)
Firestone W01-R58-4078 - (6 x1 Alu )
Firestone W01-R58-4070 - (6 x 2 Alu )
Firestone W01-R58-4053 - (6 x 2 Steel )
Firestone W01-R58-4059 - (10" x3 steel)
Firestone W01-R58-4054 - 8x1 Steel
Firestone W01-R58-4028 - 8"x1 Epichlorhydrin
Spar Part Bellow 8"x2 W01-R58-4045
Firestone W01-R58-4064 -14" 1/2 x2
Firestone W01-R58-4063 -14 1/2 x1
Bellow only 8" x 1 -- W01-R58-4085
Firestone W01-R58-4048
W01-R58-4080 - 2 3/4" x 2
Firestone W01-R58-4060- 12" x2 steel
Firestone W01-R58-4070 - (6 x 2 V2a )
Firestone W01-R58-4051E 4,5 x 2 Stainless Steel
Firestone W01-R58-4050
W01-R58-4080 - 2 3/4" x 1
