W01-R58-4063 Air Rite Air Bags 14 1/2X1 DUNLOP SP 1643 Truck Air Bag Suspension

W01-R58-4063 Air Rite Air Bags 14 1/2X1 DUNLOP SP 1643 Truck Air Bag Suspension

  • W01-R58-4063 Air Rite Air Bags 14 1/2X1 DUNLOP SP 1643 Truck Air Bag Suspension
  • W01-R58-4063 Air Rite Air Bags 14 1/2X1 DUNLOP SP 1643 Truck Air Bag Suspension
  • W01-R58-4063 Air Rite Air Bags 14 1/2X1 DUNLOP SP 1643 Truck Air Bag Suspension
  • W01-R58-4063 Air Rite Air Bags 14 1/2X1 DUNLOP SP 1643 Truck Air Bag Suspension
  • W01-R58-4063 Air Rite Air Bags 14 1/2X1 DUNLOP SP 1643 Truck Air Bag Suspension
W01-R58-4063 Air Rite Air Bags 14 1/2X1 DUNLOP SP 1643 Truck Air Bag Suspension
Product Details:
Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1B4063
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Steel Cover Plate , Rubber Bellows Norgren: 14 1/2 X 1
Assembly Weight:: 7.4 Kg Natural Diameter: 380 Mm
Pressure Ability: 0.2-0.8 M Pa Min Height: 47 Mm
DIA OF PLATE: 310MM DUNLOP: SP 1643
High Light:

Air Rite Air Bags W01-R58-4063

,

Air Rite Air Bags 14 1/2X1

,

SP 1643 Truck Air Bag Suspension

W01-R58-4063 Firestone Air Springs 14 1/2X1 DUNLOP SP 1643 Truck Air Bag Suspension





GUOMAT NO. 1B4063 Cross OEM:



Rubber bellows:14 1/2 X 1

Firestone:W01-R58-4063

Firestone:W01 R58 4063

Firestone:W01R584063

Weight:7.39 KG

DUNLOP SP 1643

DUNLOP SP1643

Also known as: 68045, FS614-13DSG1/2
Comparison: W01R584063, W01-R58-4063, WO1R584063, WO1-R58-4063
FS 614-13 DS G 1/2, bellows type industrial air spring, single-turn, 614 cm2

effective area, 13 cm maximum stroke, detachable connecting parts,

stud installation, G1/2 BSPP
Manufacturer: Mainland
Maximum inflation pressure
120 psi
Inlet type
Metric
Air inlet
1/2"
series
D
Bellows type
Single twist
weight
0.2 lbs.





GUOMAT NO. 1B4063 Data:

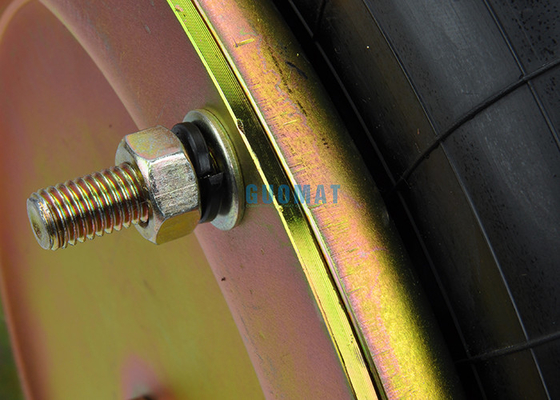

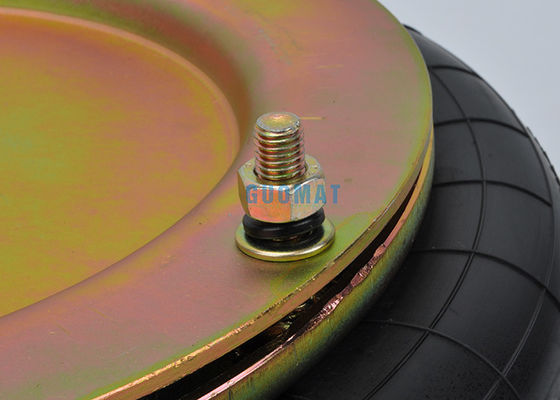

❶Nut/ Blind Nut


Top cover screw (nut) teeth: 4x M10
Top cover screw center distance: 283 mm
Bottom cover screw (nut) teeth: 4x M10
Bottom cover screw center distance: 283 mm



❷ air hole / air inlet / air connector
Air vent / air inlet: G1 / 2

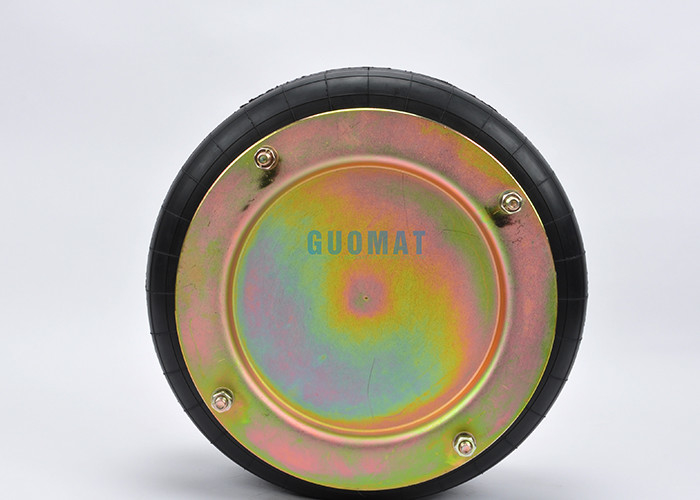

❸ cover


Top cover diameter (width): 310MM
Bottom cover diameter (width): 310MM



❹Rubber bellows


Rubber bellows MAX diameter: 400 mm
Working stroke: 47 MM- 160 MM
Maximum height: 160 MM
Minimum height (compression height): 47 mm
Stroke height: 113 mm
❺ bumper block / buffer block
No Bumper Block

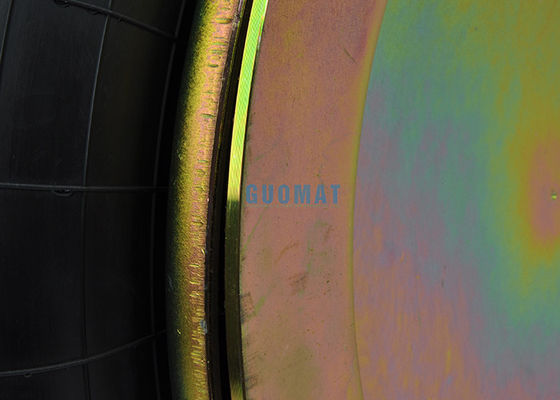

Twisted waist/waist ring
Belt hoop: a band loop





GUOMAT NO. Model Nominal Ø (inch) x convolutions Maximum stroke (mm) Air Port size
1B 2 3/4x 1 M/31021 2 3/4“ x 1 20 G1/4
2B 2 3/4x 2 M/31022 2 3/4“ x 2 45 G1/4
3B 2 3/4x 3 M/31023 2 3/4“ x 3 65 G1/4
1B 4 1/2x 1 M/31041 4 1/2“ x 1 140 G3/8
2B 4 1/2x 2 M/31042 4 1/2“ x 2 280 G3/8
1B 6x 1 M/31061 6" x 1 155 G1/2
2B 6x 2 M/31062 6" x 2 155 G1/2
1B 8x 1 PM/31081 8" x 1 95 G3/4
2B 8x 2 M/31082 8" x 2 185 G3/4
1B 9 1/4x 1 M/31091 9 1/4” x 1 105 G3/4
2B 9 1/4x 1 M/31092 9 1/4“ x 1 230 G3/4
1B 12x 1 M/31121 12" x 1 105 G3/4
2B 12x 2 M/31122 12" x 2 215 G3/4
3B 12x 3 M/31123 12" x 3 315 G3/4



W01-R58-4063 Air Rite Air Bags 14 1/2X1 DUNLOP SP 1643 Truck Air Bag Suspension 0
