| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B4066 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Norgren: | 16X1 |
|---|---|---|---|
| Assembly Weight:: | 9.5 Kg | Natural Diameter: | 430 Mm |
| Pressure Ability: | 0.2-0.8 M Pa | Design Height: | 77-230mm |
| DIA OF PLATE: | 311MM | DUNLOP Shock Actuator: | 16 X 1 |
| High Light: | firestone air bag suspension 16 X 1,firestone helper bags W01-R58-4066,1B4066 firestone air bag suspension |
||

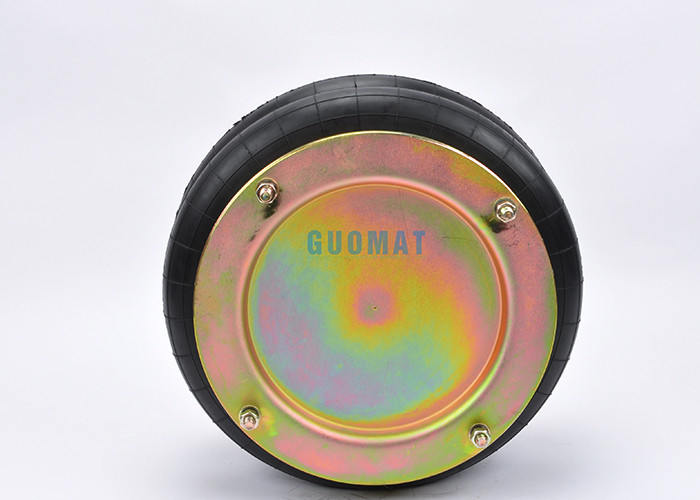

W01-R58-4066 Industrial Air Springs Bellows DUNLOP Shock Actuator 16 x 1
W01-R58-4066 Data:
GUOMAT NO.:1B4066
Rubber bellows:16 X 2
Rubber bellows:16X2
Firestone:W01-R58-4066
Firestone:W01 R58 4066
Firestone:W01R584066
Net weight:7.6 KG
DUNLOP:16X1 AIRSPRING
W01R584066 Firestone 16X1 SBR ASSEMBLY
Item #: W01R584066
Manufacturer: Firestone Industrial
Supplier Part #:W01-R58-4066
FT816-40DSG1/2
Comparison: W01R584066, W01-R58-4066, WO1R584066, WO1-R58-4066
FT 816-40 DS G 1/2, bellows type industrial air spring, three-turn, 816 square centimeters effective area, 40 cm maximum stroke, detachable connecting parts, stud installation, G1/2 BSPP
Manufacturer: Mainland
Compressed height
4.72"
Maximum deployment height
21.65"
The maximum diameter
16.93"
Maximum inflation pressure
120 psi
Maximum stroke
16.93"
Inlet type
Metric
Air inlet
1/2"
series
D
lowest temperature
-76°F
Maximum temperature
158 degrees F
Bellows type
Triple convolution
weight
0.2 lbs.
LOBES: 1
ø MAX: 430
MAX ANGLE: 15º
MAX AXIAL OFFSET: 10 mm
øC: 283
ø SPACE ENVELOPES: 445 MM
LOAD IN daN: 9
MAX WORK PRESSURE: 8 BAR
BURST PRESSURE: 25 BAR
WEIGHT:7.6 KG
DIMENSIONS: 16" X 16" X 4"
Operation mode: Single actionStroke:
Port size: G1 / 2
Nominal diameter: 16"
Convolution number: 1

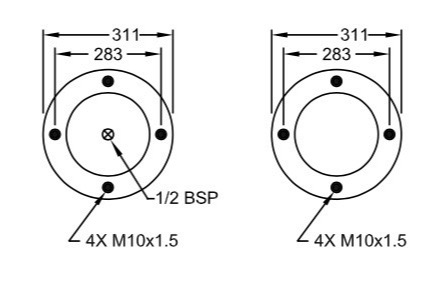

❶Nut/ Blind Nut
Top cover screw (nut) teeth: 4x M10
Top cover screw center distance: 283 mm
Bottom cover screw (nut) teeth: 4x M10
Bottom cover screw center distance: 283 mm
❷ air hole / air inlet / air connector
Air vent / air inlet: 1 / 2 BSP
❸ cover
Top cover diameter (width): 311MM
Bottom cover diameter (width): 311MM
❹Rubber bellows
Rubber bellows MAX diameter: 430 mm
Minimum height (compression height): 55 MM
❺ bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Belt hoop: a band loop
| GUOMAT NO. | Model | Nominal Ø (inch) x convolutions | Maximum stroke (mm) | Air Port size |
| 1B 2 3/4x 1 | M/31021 | 2 3/4“ x 1 | 20 | G1/4 |
| 2B 2 3/4x 2 | M/31022 | 2 3/4“ x 2 | 45 | G1/4 |
| 3B 2 3/4x 3 | M/31023 | 2 3/4“ x 3 | 65 | G1/4 |
| 1B 4 1/2x 1 | M/31041 | 4 1/2“ x 1 | 140 | G3/8 |
| 2B 4 1/2x 2 | M/31042 | 4 1/2“ x 2 | 280 | G3/8 |
| 1B 6x 1 | M/31061 | 6" x 1 | 155 | G1/2 |
| 2B 6x 2 | M/31062 | 6" x 2 | 155 | G1/2 |
| 1B 8x 1 | PM/31081 | 8" x 1 | 95 | G3/4 |
| 2B 8x 2 | M/31082 | 8" x 2 | 185 | G3/4 |
| 1B 9 1/4x 1 | M/31091 | 9 1/4” x 1 | 105 | G3/4 |
| 2B 9 1/4x 1 | M/31092 | 9 1/4“ x 1 | 230 | G3/4 |
| 1B 12x 1 | M/31121 | 12" x 1 | 105 | G3/4 |
| 2B 12x 2 | M/31122 | 12" x 2 | 215 | G3/4 |
| 3B 12x 3 | M/31123 | 12" x 3 | 315 | G3/4 |
