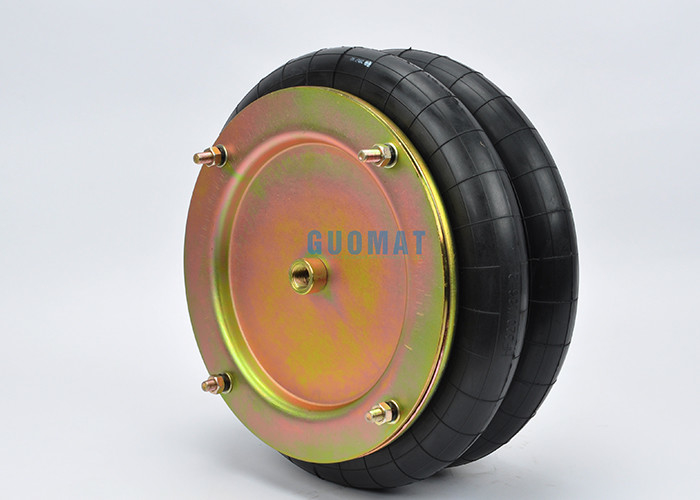

W01-R58-4068 Firestone Industrial Air Springs Bellows 16 X 3 DUNLOP SP 2141

W01-R58-4068 Firestone Industrial Air Springs Bellows 16 X 3 DUNLOP SP 2141

W01-R58-4068 Data:

GUOMAT NO.:2B4068

Rubber bellows:16 X 2

Rubber bellows:16X2
Firestone:W01-R58-4068

Firestone:W01 R58 4068

Firestone:W01R584068
Net weight:12.1 KG
DUNLOP SP 2141

DUNLOP SP2141

16X2 AIRSPRING
LOBES: 2
ø MAX: 430
MAX ANGLE: 15º
MAX AXIAL OFFSET: 10 mm
øC: 283
ø SPACE ENVELOPES: 445 MM
LOAD IN daN: 9
MAX WORK PRESSURE: 8 BAR
BURST PRESSURE: 25 BAR
WEIGHT: 12.1 kg

DIMENSIONS: 16" X 16" X 4"

Operation mode: Single action

Port size: G1 / 2

Nominal diameter: 16"

Convolution number: 3

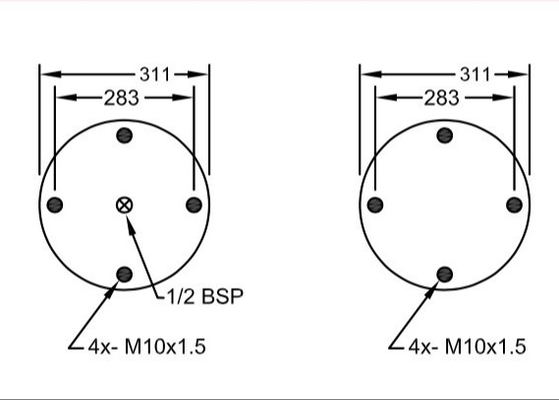

❶Nut/ Blind Nut

Top cover screw (nut) teeth: 4x M10
Top cover screw center distance: 283 mm
Bottom cover screw (nut) teeth: 4x M10
Bottom cover screw center distance: 283 mm


❷ air hole / air inlet / air connector
Air vent / air inlet: 1 / 2 BSP


❸ cover

Top cover diameter (width): 311MM
Bottom cover diameter (width): 311MM


❹Rubber bellows

Rubber bellows MAX diameter: 430 mm
Working stroke: 200 MM
Minimum height (compression height): 125 mm

❺ bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Belt hoop: two band loop

W01-R58-4068 (DR Series 16 x 3)
Manufacturers:

Springride
Product :

W01-R58-4068 (DR Series 16 x 3)
Description :

bottom mount 16 "x 3
Internal code: PAR383186
: 40169500
Category: Rubber Products
weight (kg) 1
