Air Fitting 3/4 NPT Firestone Ride Rite Air Bags W01-358-7465 Rubber Bellows Style 115

Air Fitting 3/4 NPT Firestone Ride Rite Air Bags W01-358-7465 Rubber Bellows Style 115

  • Air Fitting 3/4 NPT Firestone Ride Rite Air Bags W01-358-7465 Rubber Bellows Style 115
  • Air Fitting 3/4 NPT Firestone Ride Rite Air Bags W01-358-7465 Rubber Bellows Style 115
  • Air Fitting 3/4 NPT Firestone Ride Rite Air Bags W01-358-7465 Rubber Bellows Style 115
Air Fitting 3/4 NPT Firestone Ride Rite Air Bags W01-358-7465 Rubber Bellows Style 115
Product Details:
Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1B6375
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Steel FIRESTONE: W01-358-7460
Warranty: 12 Months Weight: 1.6 Kg
Other Name: Industrial Firestone Air Shock Pressure Ability: 0.2-0.8 M Pa
CONTITECH: FS200-10 Rubber Bellows: W01-358-0118
High Light:

Firestone Ride Rite Air Bags W01-358-7465

,

Two Ply Bellows Firestone Helper Bags

,

3/4 NPT Air Fitting Firestone Helper Bags

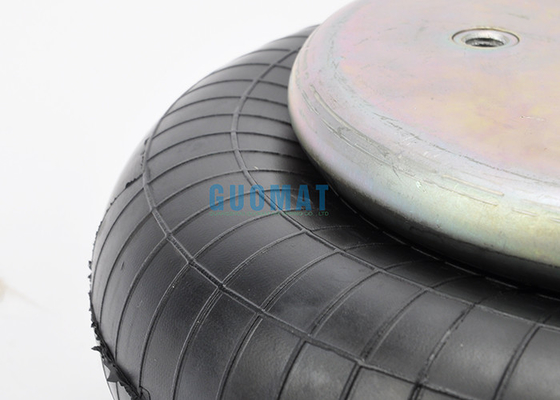

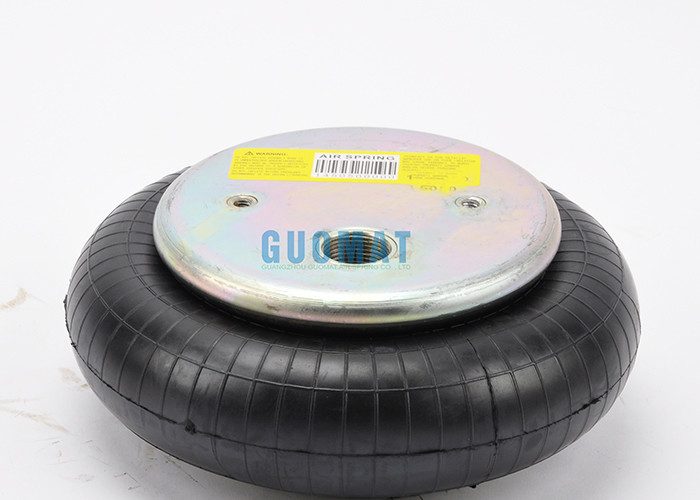

Firestone Air Spring W01-358-7465 Rubber Bellows Style 115 Air Fitting 3/4 NPT





OEM Original Equipment Manufacturer:



GUOMAT Part Number:1B7465

Firestone Part Number:W013587465

Firestone Part Number:W01-358-7465,

Firestone Part Number:WO13587465,

Firestone Part Number:WO1-358-7465

Contitech Part Number:FS200-10 CI 3/4NPTOS

Contitech Part Number:FS200-10 3/4NPT

Contitech Part Number:FS 200-10





Product Description



Technical Data

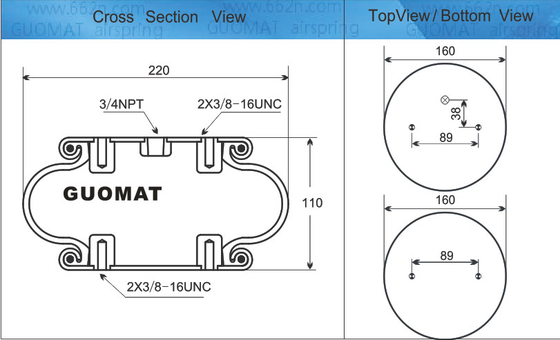

GUOMAT Part Number:1B7465, bellows type industrial air spring, single-turn, 200 cm2 effective area, 10 cm maximum stroke, crimped bead plate, internal thread mounting thread, 3/4 NPT, offset
Manufacturer: China GUOMAT Mainland

Air inlet
3/4"
series
C
lowest temperature
-76°F
Maximum temperature
158 degrees F
Bellows type
Single twist
weight
5.07 pounds.

Compressed height
2.01"
Maximum deployment height
5.51"
The maximum diameter
9.84"
Maximum inflation pressure
120 psi
Maximum stroke
3.5"
Inlet type
empire







Nut / Blind Nut



Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16 BLIND NUTS (5/8 DEEP)

Screw Center Distance of Top Cover Plate : 89 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16 BLIND NUTS (5/8 DEEP)

Screw Center Distance of Bottom Cover Plate : 89 mm



Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 3/4 NPT AIR INLET

Screw Center Distance Between Gas Hole and Nut : 44.5 mm



Cover Plate

Top Cover Plate Diameter: 160 mm

Bottom Cover Plate Diameter: 160 mm



Rubber Bellows

Rubber Bellows MAX Diameter: 257 mm

Rubber Bellows Natural Diameter : 220 mm

The Working Stroke : MIN 50 mm to MAX 140 mm

Maximum Height : 140 mm

Minimum Height :50mm

Stroke Height : 90mm



Bumper block / Buffer block

Without Bumper Block



Girdle Hoop / Girdle Ring

With Girdle Hoop :no One Pieces of Girdle Hoop

  • Min. pressure – 0 psi
  • Return force to min. height – <45LBF/200N
  • Overall Weight – 4.4LB
  • Min. Design Height – 2.01inch / 51MM
  • Inst.Space Required – 9.65inch / 245 MM
  • Max. Stroke – 3.9inch / 99MM









VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS





Pressure p [psi] 40 60 80 100 120 Vol. V [in.³]
Force (load) F [lbf] 981 1,530 2,040 2,570 3,090 124
Spring rate c [lbf/in] 701 1,000 1,290 1,560 1,870 124
Natural Frequency f0 [Hz] 2.7 2.7 2.6 2.5 2.5 124
Design height H: recommended 4.53 inch, minimum 3.94 inch





PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES



Force F [lbf]
Pressure p [psi] 40 60 80 100 120 Vol. V [in.³]
H 4.50 in. 939 1440 1920 2430 2950 120
H 4.00 in. 1120 1690 2260 2850 3430 110
H 3.50 in. 1250 1880 2530 3170 3850 96
H 3.00 in. 1370 2050 2760 3460 4170 83
H 2.50 in. 1450 2170 2930 3640 4410 68





Other kinds of air springs Models we can produce:


Style 115 Two Ply Bellows



Blind nuts, 3/4 NPT
W01-358-7465;

Firestone Part Number:W01-358-7465

Firestone Part Number:WO13587465

Firestone Part Number:WO1-358-7465

Firestone Part Number:W013587465

Firestone Part Number:W01 358 7465





Blind nuts, 1/4 NPT
W01-358-7460;

Firestone Part Number:W01-358-7460

Firestone Part Number:WO13587460

Firestone Part Number:WO1-358-7460

Firestone Part Number:W013587460

Firestone Part Number:W01 358 7460



Blind nuts, 1/4 NPT rubber bumper
W01-358-7459;

Firestone Part Number:W01-358-7459

Firestone Part Number:WO13587459

Firestone Part Number:WO1-358-7459

Firestone Part Number:W013587459

Firestone Part Number:W01 358 7459



Blind nuts, 3/4 NPT rubber bumper
W01-358-7458;

Firestone Part Number:W01-358-7458

Firestone Part Number:WO13587458

Firestone Part Number:WO1-358-7458

Firestone Part Number:W013587458

Firestone Part Number:W01 358 7458


Countersunk steel bead rings, 15/8 bolts, nuts, washers
W01-358-7469;

Firestone Part Number:W01-358-7469

Firestone Part Number:WO13587469

Firestone Part Number:WO1-358-7469

Firestone Part Number:W013587469

Firestone Part Number:W01 358 7469


Blind nuts, 3/4 NPT both ends (centered)
W01-606-7115;

Firestone Part Number:W01-606-7115

Firestone Part Number:WO16067115

Firestone Part Number:WO1-606-7115

Firestone Part Number:W016067115

Firestone Part Number:W01 606 7115



Rubber bellows only
W01-358-0118;

Firestone Part Number:W01-358-0118

Firestone Part Number:WO13580118

Firestone Part Number:WO1-358-0118

Firestone Part Number:W013580118

Firestone Part Number:W01 358 0118





Style:124 High Strength Con-struction



Blind nuts, 1/4 NPT
W01-358-7650;

Firestone Part Number:W01-358-7650

Firestone Part Number:WO13587650

Firestone Part Number:WO1-358-7650

Firestone Part Number:W013587650

Firestone Part Number:W01 358 7650


Blind nuts, 3/4 NPT
W01-358-7649

Firestone Part Number:W01-358-7649

Firestone Part Number:WO13587649

Firestone Part Number:WO1-358-7649

Firestone Part Number:W013587649

Firestone Part Number:W01 358 7649
