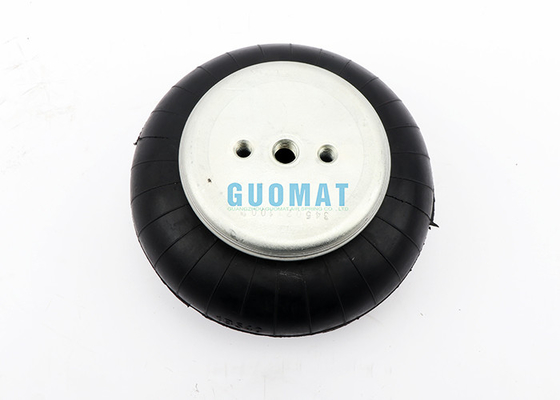

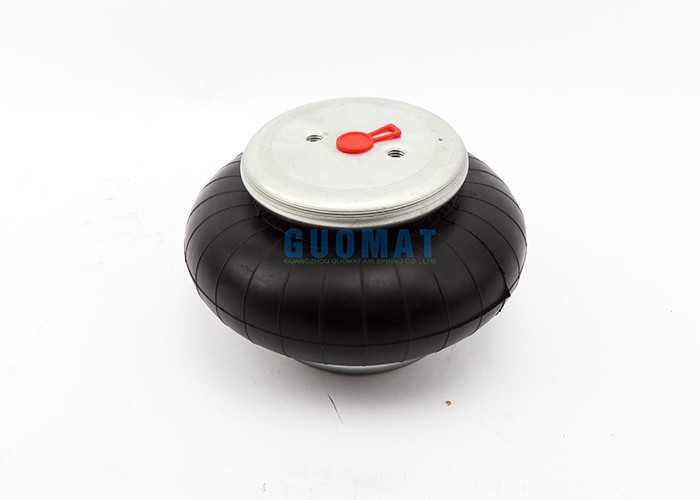

W01-358-7001 Firestone W01-358-6996 Single Air Spring Industrial Style 16 GUOMAT 1B7001
| W01-358-7001 Technical Parameters |
| Top Cover Plate Diameter |
114 mm |
| Bottom Cover Plate Diameter |
114 mm |
| Screw Center Distance |
44.5 mm |
| Distance Gas Hole Between Nut |
22.25 |
| Gas Hole |
G1/4 |
| Screw (Nut) Tooth |
2pcsXM10X1.5 |
| Rubber Bellows MAX Diameter |
145mm |
| The Stroke |
50-100mm |

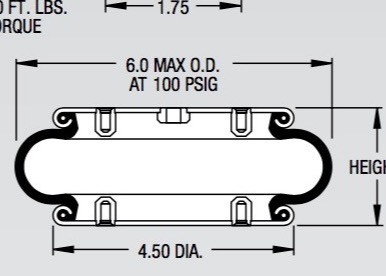

Maximum diameter @ 100 PSIG (inch)
6
Maximum height (inch)
3.3
Maximum stroke (inch)
1.4
Minimum usable height (inches)
1.9
Force at 1 inch (lb) stroke @ 80PSI
930
Force at maximum stroke @ 80PSI (pounds)
580
Material
2-layer standard line
OEM Original Equipment Manufacturer:
| GUOMAT |
1B7001 |
| contitech |
FS 50-5 |
| Firestone |
W01-358-7001,
W013587001,
WO1-358-7001,
WO13587001
|
| Technical data |
| Min. pressure |
0 bar |
| Return force to min. height |
≤ 250 N |
| Overall weight with clamped plates |
1.2 kg |
| Vibration isolation - dynamic characteristic values |
| Design height H: recommended 90mm, minimum 70mm |
| Pressure p [bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol. V[l] |
| Force (Load) [KN] |
1.7 |
2.3 |
2.8 |
3.4 |
3.8 |
4.4 |
0.5 |
| Spring rate [N/cm] |
760 |
990 |
1220 |
1480 |
1610 |
1820 |
| Natural frequency [Hz] |
3.5 |
3.3 |
3.3 |
3.3 |
3.2 |
3.2 |
| Pneumatic application - static characteristic values |
| Force F [kN] |
| Pressure p [bar] |
3 |
4 |
5 |
6 |
7 |
8 |
Vol. V[l] |
| Height H [mm] 60 |
2.6 |
3.5 |
4.3 |
5.2 |
6.1 |
6.9 |
0.3 |
| 70 |
2.3 |
3.2 |
3.9 |
4.7 |
5.4 |
6.2 |
0.4 |
| 80 |
2.1 |
2.8 |
3.5 |
4.2 |
4.9 |
5.3 |
0.5 |
| 90 |
1.7 |
2.2 |
2.8 |
3.4 |
3.9 |
4.4 |
0.5 |
| 100 |
1.2 |
1.6 |
2 |
2.5 |
3 |
3.4 |
0.6 |
This W01-358-7001 Industrial Air Spring can be used for:
Such as:
Blower and Motor,
Control Panel,
Conveyor End Stop,
Mountain/Trail Bike,
Delicate Electronic Equipment
and Vibrating Screen.

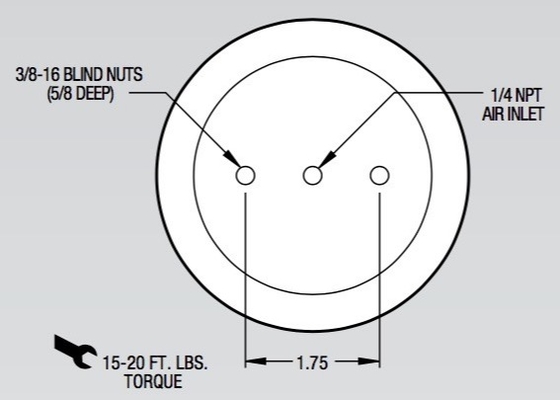

Blind nuts, 1/4 NPT
W01-358-7001;
Firestone Part Number:W01-358-7001
Firestone Part Number:WO13587001
Firestone Part Number:WO1-358-7001
Firestone Part Number:W013587001
Firestone Part Number:W01 358 7001
Blind nuts, 3/4 NPT
W01-358-6996;
Firestone Part Number:W01-358-6996
Firestone Part Number:WO13586996
Firestone Part Number:WO1-358-6996
Firestone Part Number:W013586996
Firestone Part Number:W01 358 6996
Socket head aluminum bead rings (bolts, nuts, washers not included-use 1/4 cap screws)
W01-358-0017;
Firestone Part Number:W01-358-0017
Firestone Part Number:WO13580017
Firestone Part Number:WO1-358-0017
Firestone Part Number:W013580017
Firestone Part Number:W01 358 0017
3/4 NPT (only) upper plate, blind nuts lower plate
W01-358-0286;
Firestone Part Number:W01-358-0286
Firestone Part Number:WO13580286
Firestone Part Number:WO1-358-0286
Firestone Part Number:W013580286
Firestone Part Number:W01 358 0286
Rubber bellows only
W01-358-0010;
Firestone Part Number:W01-358-0010
Firestone Part Number:WO13580010
Firestone Part Number:WO1-358-0010
Firestone Part Number:W013580010
Firestone Part Number:W01 358 0010
