| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B7600 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber, Iron | Style: | 117 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 2.8 Kg |
| Other Name: | Air Spring For Machine | Pressure Ability: | 0.2-0.8 M Pa |
| Screw: | 2X3/8-16UNC | Air Inlet: | 1/4 NPT |
| Firestone: | W01-358-7600 | ||
| High Light: | Robotic Coupling Air Helper Springs,W01-358-7600 Firestone Suspension Air Bags,1/4 NPT Air inlet Air Helper Springs |
||

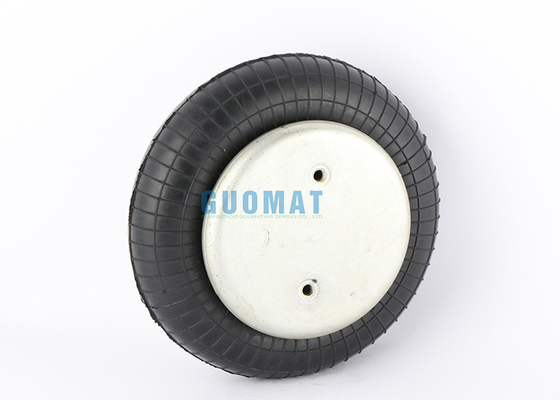

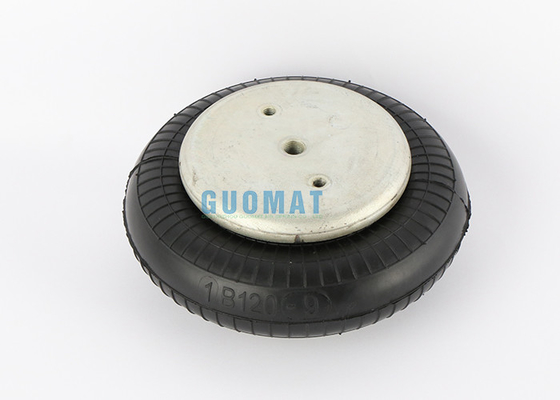

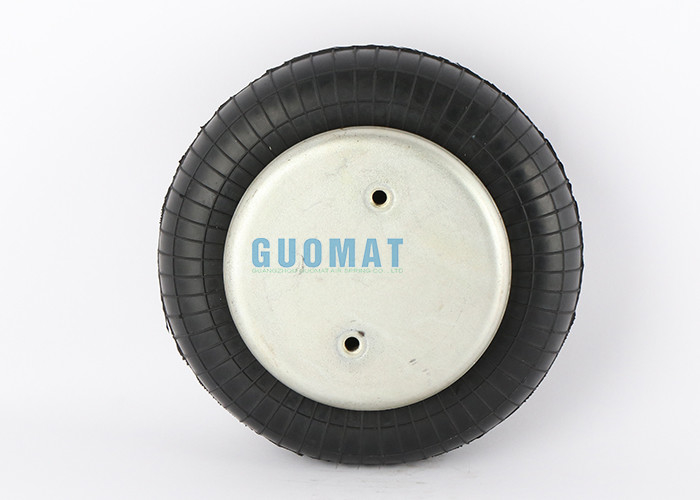

High Strength Bellows W01-358-7600 Firestone Air Spring Style 117 For Robotic Coupling
Cross OEM of 1B7600 replace W01-358-7600 Firestone
GUOMAT NO:1B7600
Style 117 High Bellows
Blind nuts, 1/4 NPT:
W01-358-7600；
W01 358 7600；
W013587600
WO1-358-7600；
WO1 358 7600；
WO13587600
Cross OEM of 1B762 replace W01-358-7602 Firestone
Blind nuts, 3/4 NPT:
W01-358-7602；
W01 358 7602；
W013587602
WO1-358-7602；
WO1 358 7602；
WO13587602
Countersunk steel bead rings,Strength 13/4 bolts, nuts, washers:
W01-358-7606；
W01 358 7606；
W013587606
WO1-358-7606；
WO1 358 7606；
WO13587606
Description:
GUOMAT 1B7600 This rubber air spring is produced and assembled by natural rubber and steel. Produced by the GUOMAT factory, quality assurance, strict quality inspection, and praised by many customers.
The size of GUOMAT 1B7600 is the same as 1B8-550 Goodyear.
Product Description of 1B7600

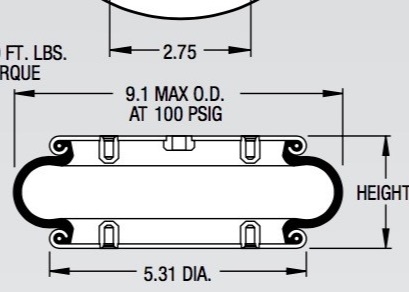

Top Cover Plate Diameter: 135mm
Bottom Piston Number: no
Bottom Cover Plate Diameter: 135mm
Screw Center Distance : 70mm
Distance Gas Hole Between Nut: 35 mm

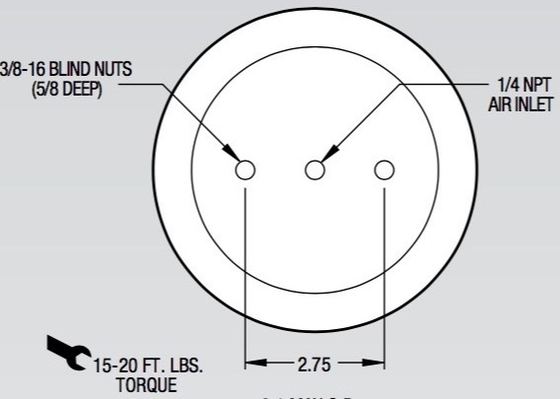

Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Rubber Bellows MAX Diameter(Maximum Diameter): 230 mm
Rubber Bellows Natural Diameter 210 mm
The Working Stroke : MAX 140 mm to MIN 50 mm
Compressed Height: 50 mm
Gas Hole / Air inlet : 1/4NPTF
| Types of | [Other types] Air spring 7600 | Height adjustment handle | no |
| Width W (mm) | 221 | Load range (kN) | 12.501〜16.000 |
| Allowable load (kN) | 13.1 | Thread length L1 (mm) | -- |
| Height of main body h (mm) | 134 | Nominal thread M (mm) | 10 |
| Property | Standard/Shockproof performance | Installation method | 2 |
| Air supply port | 1/4 | With or without bumpers | no |
| RoHS directive | 10 | - | -- |
Technical Data of 1B7600
GUOMAT:1B7600
OEM Original Equipment Manufacturer:FS 120-10 CI
AIR INLET 1/4 NPT:
Firestone : W01-358-7600
Goodyear:1B8-550
Contitech:FS120-10
1B7600 Goodyear PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES
| Force F [lbf] | |||||
| Pressure p [psi] | 40 | 60 | 80 | 100 | Vol. V [in.³] |
| H 4.50 in./114.3MM | 728 | 1130 | 1570 | 1970 | 110 |
| H 4.00 in./101.6MM | 905 | 1400 | 1940 | 2390 | 100 |
| H 3.50 in./88.9MM | 1050 | 1610 | 2240 | 2740 | 90 |
| H 3.00 in./76.2MM | 1170 | 1770 | 2450 | 3020 | 75 |
| H 2.50 in./63.5MM | 1270 | 1900 | 2630 | 3260 | 57 |
VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS
| Pressure p [psi] | 40 | 60 | 80 | 100 | 120 | Vol. V [in.³] | |
| Force (load) F [lbf] | 801 | 1,240 | 1,700 | 2,130 | 2,530 | 110 | |
| Spring rate c [lbf/in] | 709 | 949 | 1,190 | 1,430 | 1,670 | 110 | |
| Natural Frequency f0 [Hz] | 2.9 | 2.8 | 2.7 | 2.6 | 2.6 | 110 | |
| Design height H: recommended 4.33 inch, minimum 3.54 inch | |||||||
1B7600 AIR SPRING USE FOR SHEET WELDING CLAMP:
Contact Person: Linda Lin
Tel: +8613924100039
