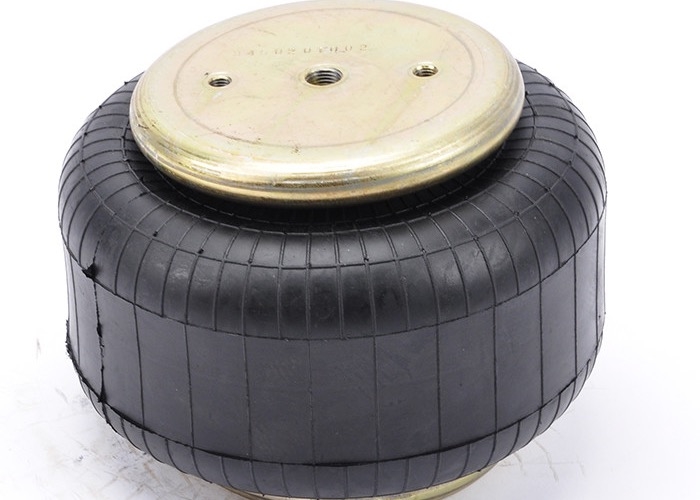

W01-358-7605 Firestone Air Spring Shocks Style 116-1 For Pipe Crawler 3/4 NPT

Firestone W01-358-7605 Air Spring Shocks Style 116-1 For PIPE CRAWLER 3/4 NPT

Reference OEM:

GUOMAT Part NO. :1B8X6-3/4

Firestone Part NO. :W013587605 ,

Firestone Part NO. :W01-358-7605 ,

Firestone Part NO. :W01 358 7605

Firestone Part NO. :WO13587605 ,

Firestone Part NO. :WO1-358-7605 ,

Firestone Part NO. :WO1 358 7605

Contitech FS120-12 CI 3/4 NPT CA
Contitech FS120-12CI3/4NPTCA

Contitech FS120-12

Goodyear Part NO. :1B8-157
Goodyear Part NO.:1B8-159
Goodyear PartNO.:1B8-560
Goodyear Part NO.;1B8-563

Goodyear Part NO. :1B8 157
Goodyear Part NO.:1B8 159
Goodyear PartNO.:1B8 560
Goodyear Part NO.;1B8 563

Durability of GUOMAT 1B8X6-3/4 air spring

The empty stroke actuator has the same quality as Firestone's legendary GUOMAT springs used in truck and bus suspensions. When using a heavy-duty suspension, the elasticity required for millions of miles is designed to withstand harsh environmental conditions and other harsh conditions.

Introduction of GUOMAT 1B8X6-3/4 air spring

GUOMAT model:
1B8X6-3/4
Warranty:
12 months
package:
Neutral packing
payment:
wire transfer
material:
Natural rubber + iron
weight:
2KG
colour:
black
certificate:
ISO / TS 16949
MOQ:
5 pcs
Types of:
Suspension assembly
OEM Number:
Goodyear 1B8-580;

Place of Origin: Guangzhou, China
Brand:
guomat
model:
1B8-580
Truck model:
machine
size:
Standard size

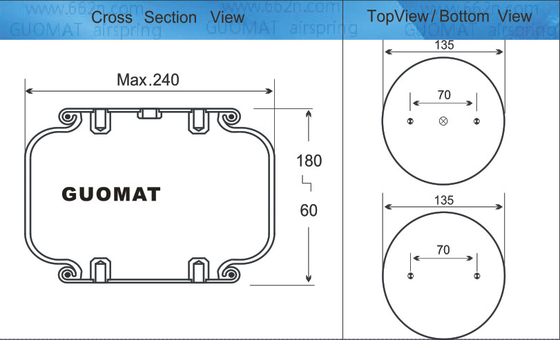

Technical parameters of GUOMAT 1B8X6-3/4 air spring

❶Nut/blind nut

Top plate screw (nut) teeth: 2 x 3 / 8-16UNC
The screw center distance of the top cover plate: 70 mm
Screw (nut) teeth of the bottom cover plate: 2 x 3 / 8-16UNC
The screw center distance of the bottom cover plate: 70 mm

❷Air hole/air inlet/air fitting
Air hole/air inlet: 1 / 4-18NPTF
Screw center distance between air hole and nut: 35 mm

❸cover
Top plate diameter: 135 mm
Diameter of the bottom cover: 135 mm

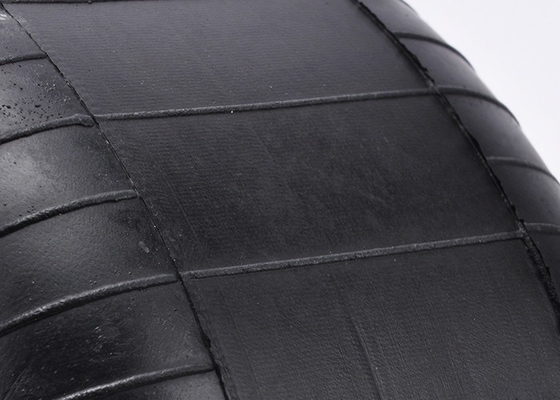

Bell rubber bellows
Maximum diameter of rubber bellows: 240 mm
Natural diameter of rubber bellows: 225 mm
Working stroke: minimum 60 mm to maximum 180 mm
Maximum height: 180 mm
Minimum height: 50 mm
Stroke height: 120mm

❺Bumper block/bumper block
Without bumper

❻Belt loop/Belt loop
With belt loop: There is no belt loop


Firestone W01-358-7605 Air Spring use for PIPE CRAWLER:

GUOMAT air spring without internal rod, piston or sliding seal
In GUOMAT actuators, there are no internal rods, pistons or sliding seals like many conventional cylinders, which gives GUOMAT an advantage in applications where dirt or grit will erode conventional cylinder seals.
The frictionlessness of GUOMAT air springs
In the absence of a sliding seal, the Airstroke actuator will not break away from friction.
GUOMAT air spring can be used flexibly
The empty stroke actuator can be used with a variety of media (liquid or gas) (Please refer to the data sheet for acceptable media selection.)
GUOMAT air spring angle capacity
If there is no U-clamp, the travel through the arc may produce up to 30 degrees of angular movement.
GUOMAT air spring side load capacity
In some cases, free-stroke actuators are not affected by side loads. This eliminates the possibility of rod bending, nicks and excessive seal wear that are common when using traditional cylinders.
