| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 250180H-2 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | GUOMAT NO.: | 250180H-2 |
|---|---|---|---|
| Springride DF Bellows NO .: | 10" X 2 /10x2 | Norgen: | 10x2 |
| Plate Dia.: | 210 Mm | Pressure Ability: | 0.2-0.8 MPa |
| Air Inlet: | G1/2 | DUNLOP: | PNP305450112 |
| High Light: | 250180H-2 Industrial Air Spring,Rubber Bellows Industrial Air Spring,Steel cover plate Industrial Air Spring |
||

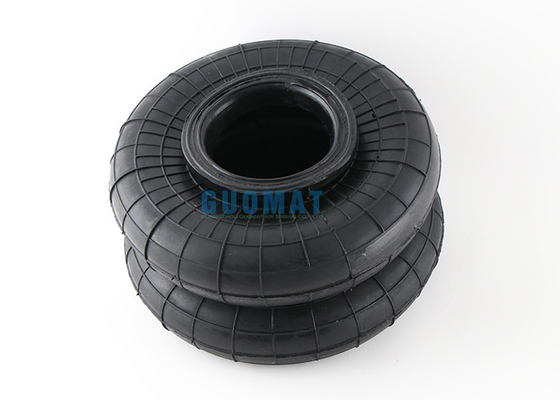

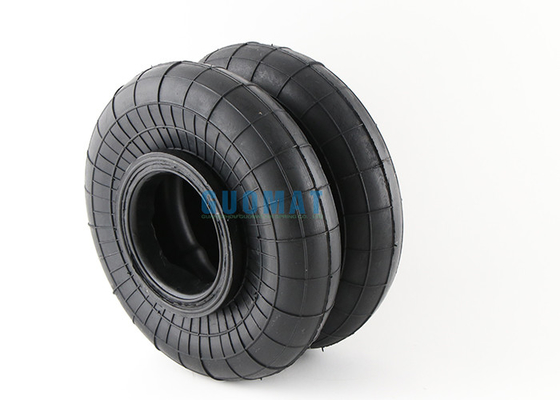

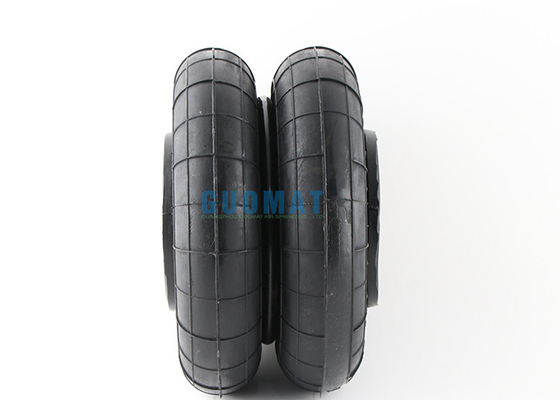

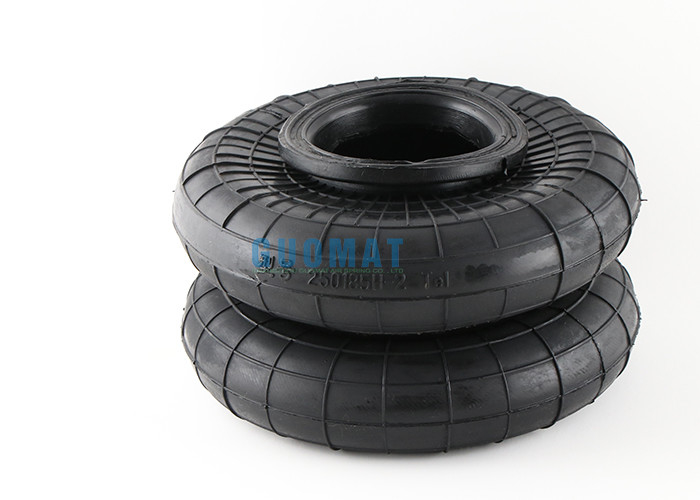

250180H-2 Industrial Air Spring 10x2 Steel Rubber Bellows Double Convoluted Air Bag
OEM Cross reference:
GUOMAT:250180H-2
CONTITECH FD 210-22 1/2 M10
DUNLOP FR SP 1538 (10x2)
NORGREN M/31102 (10x2)
WEFORMA WBZ-G 450
GRANNING 15807
SAMRO H 250-0021
Double capsule air spring 2B270- 225 D185
Can replace the following air bags (bladder cylinder, gas spring)
ContiTech : FD 210- -22 1/2 M10
ContiTech : FD 210- -22 DS G1 / 2
ContiTech : FD 210--22 DS G1 / 2 M10
ContiTech : FD 210-22 DS G1 / 2 CR
ContiTech : FD 210- -22 DS CR G1 / 2
ContiTech : FD 210--22 DS / FD210-22DS / FD21022DS
ContiTech leather bags: FD 210--22 / FD210--22 / FD21022
Firestone: W01-R58- -4058 / W01 R58 4058 / W01R584058
Firestone style: 10 ”x2 / 10” x2 / 10x2
Goodyear: 2B10- -2350 / 2B10 2350 / 2B102350
Goodyear sac number: 578-92-3-2350 / 578 92 3 2350/5789232350
Springride: 2B10-2350 / 2B10 2350 / 2B102350
Springride bladder number: 578-92-3-2350 / 578 92 3 2350/5789232350
Dunlop France: SP1538
Dunlop UK (Pneuride): PNP 30545 01 12 / PNP305450112
Norgren: M / 31102 / M 31102 / M31102
Nominal diameter (inch) x number of turns: 10 "x2 / 10" x2 / 10x2.
WEFORMA: WBZ-G 450 / WBZ-G450 / WBZG450
Altay: 140586
Altai Co. No .: A2 250 / K01 / A2250 / K01 / A2250K01
Pared (new): 2B10-2350 / 2B10 2350 / 2B102350
Pared new skin bag number: 578-92-3-2350/578 92 3 2350/5789232350
Gu'an Zhen (gas spring): YS- -252- -2V / YS 252 2V / YS2522V
Specifications and Detail Technical Parameters:Style10" x2
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcs X M10
Distance between two bolts:181mm
Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10
Distance between two bolts:181mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
❸ Cover Plate
Top Cover Plate Diameter (Width): 210 mm
Bottom Cover Plate Diameter (Width): 210 mm
Material top and bottom plate:Steel
❹Rubber Bellows
Stroke of Rubber Bellows:70mm-240m
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Rubber material Standard up to 70°C natural rubber
Other kinds of model air bellows:
W01-R58-4081 (2 3/4" x3)
W01-R58-4051 Dunlop Style 4,5 " x 2
W01-R58-4052 - (6" x1 steel)
Firestone W01-R58-4057 - (10 x1 steel)
Firestone W01-R58-4027 - 8x2 (Epichlorhydrin / Herclor)
Firestone W01-R58-4090 - 8"x2 Butyl
Firestone W01-R58-4055 - 8x2 Steel
Firestone W01-R58-4060 (12 x1 steel)
Firestone W01-R58-4077 (12 x1 Herclor )
Firestone W01-R58-4056 -8"x3 Steel
Firestone W01-R58-4062 (12 x3 Steel)
Firestone W01-R58-4065 (14 1/2 x3 Steel)
Firestone W01-R58-4098 (14 1/2 x1 Herclor)
Firestone W01-R58-4097 (14" 1/2 x2 Herclor)
Firestone W01-R58-4025 - (10" x1 Epichlorhydrin/Herclor)
Firestone W01-R58-4078 - (6 x1 Alu )
Firestone W01-R58-4070 - (6 x 2 Alu )
Firestone W01-R58-4053 - (6 x 2 Steel )
Firestone W01-R58-4059 - (10" x3 steel)
Firestone W01-R58-4054 - 8x1 Steel
Firestone W01-R58-4028 - 8"x1 Epichlorhydrin
Spar Part Bellow 8"x2 W01-R58-4045
Firestone W01-R58-4064 -14" 1/2 x2
Firestone W01-R58-4063 -14 1/2 x1
Bellow only 8" x 1 -- W01-R58-4085
Firestone W01-R58-4048
W01-R58-4080 - 2 3/4" x 2
Firestone W01-R58-4060- 12" x2 steel
Firestone W01-R58-4070 - (6 x 2 V2a )
Firestone W01-R58-4051E 4,5 x 2 Stainless Steel
Firestone W01-R58-4050
W01-R58-4080 - 2 3/4" x 1
Other models of H air springs:
ModelPath0.7Mpa
MaxCapacity0.7Mpa
FrequencyTripWeight0.2Mpa0.5Mpa0.7MpaMinimum heightSafe height
235210H-2 180250802453.7
156130H-2 118170701463.15
680262H-2 580710527813596193131.359030218.6
630262H-2 530660437110585158011.489030019.9
580214H-2 500600397810137142931.658824613.3
520217H-2 44055030707850110941.419024914.5
480217H-2 1615102723685097001.278824913.8
430255H-2 3304601760452664271.439029510.2
400255H-2 3004301465375253561.559029510.4
400217H-23204301753445063001.669024911.1
380221H-2 3004051432376553521.34902558.5
360214H-2 2803801250322045701.36882467.9
350255H-2 2503801095285140981.45902958.2
330254H-2 230355861222231661.75882907.24
330214H-2 2503551064274938971.65882467.75
310214H-2 230330813207829921.89882457
300170H-2 240320849215630451.74851955.35
290265H-2 205320440125018001.19903036.55
280214H-2 200305668174124801.68882465.57
252163H-2 200275422114216441.73802384.2
250180H-2 185270520134519041.74842063.95
235152H-2 180250461118016671.91761743.25
230214H-2 150255388102314571.93882464.05
200142H-2 15022032684311952.02781623.05
168132H-2 1201852295898322.53721512.2
160166H-2 1001751494135932.3821902.35
130142H-2 80150802193143.12721624.4
