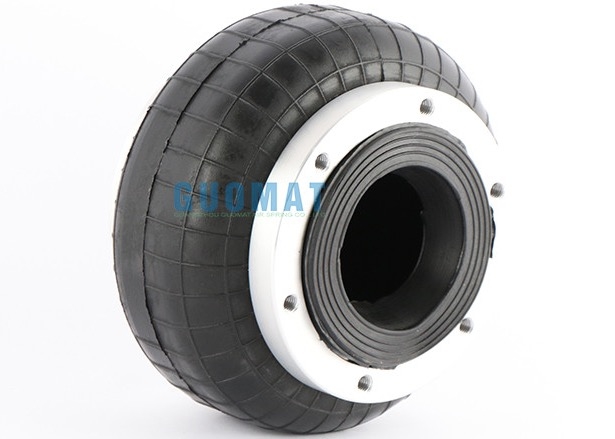

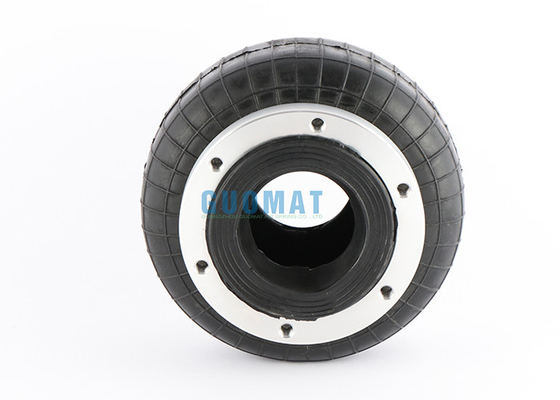

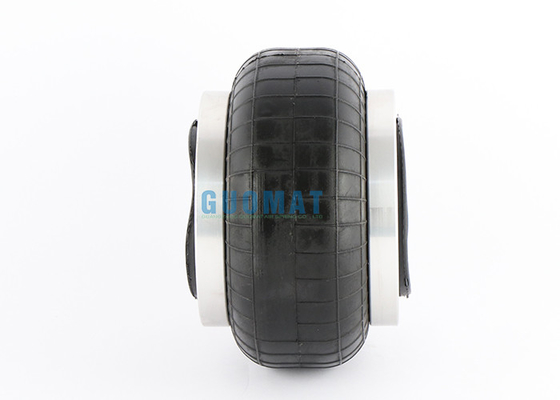

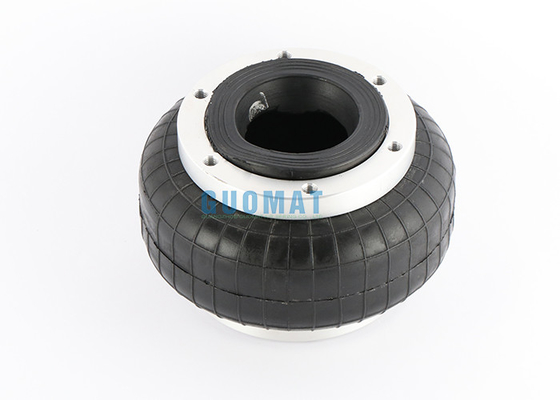

W01-358-0100 Rubber Bellows W01-358-0112 Firestone Air Spring M6 Bolt

W01-358-0100 Rubber Bellows W01-358-0112 Firestone Air Spring M6 Bolt

  • W01-358-0100 Rubber Bellows W01-358-0112 Firestone Air Spring M6 Bolt
  • W01-358-0100 Rubber Bellows W01-358-0112 Firestone Air Spring M6 Bolt
  • W01-358-0100 Rubber Bellows W01-358-0112 Firestone Air Spring M6 Bolt
  • W01-358-0100 Rubber Bellows W01-358-0112 Firestone Air Spring M6 Bolt
  • W01-358-0100 Rubber Bellows W01-358-0112 Firestone Air Spring M6 Bolt
W01-358-0100 Rubber Bellows W01-358-0112 Firestone Air Spring M6 Bolt
Product Details:
Place of Origin: China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 1B5082
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,Paypal or Others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Steel Firestone 1: W01-358-0100
Warranty: 1 Year Weight: 4.0 Kg
Other Names: Flange Air Spring Vibration Pressure Ability: 0.2-0.8 M Pa
Style: 110 Firestone 2: W01-358-0112
High Light:

Firestone Air Spring M6 Bolt

,

W01-358-0112 Firestone Air Spring

,

Rubber Bellows Firestone Air Spring

W01-358-0100 Rubber Bellows W01-358-0112 Firestone Air Spring M6 Bolt





Cross OEM:



GUOMAT:1B5082

Firestone Part Number:W01-358-0112,

Firestone Part Number:W013580112,

Firestone Part Number:WO1-358-0112,

Firestone Part Number:WO13580112

Firestone Bellows Number:W01-358-0100

Firestone Bellows Number:W01 358 0100

Firestone Bellows Number:W013580100

Firestone Bellows Number:WO1-358-0100

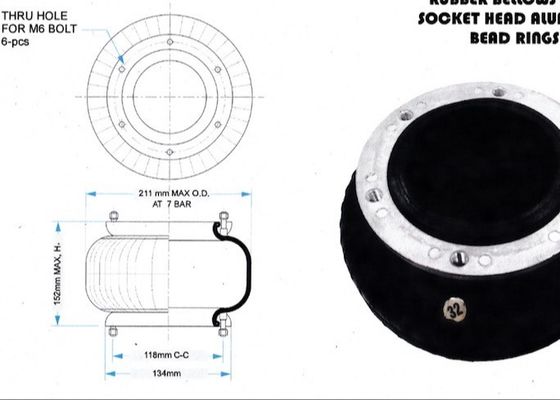

Specifications and Technical Data



TORPRESS 110

GUOMAT Part Number:1B5082

Operating Temperature: 57Cº to -54Cº

Natural Height: 120mm

Top Cover Plate Diameter: 138mm

Bottom Cover Plate Diameter: 138mm

Distance of the screw:120mm

Top Cover Plate Screw (Nut) Tooth :6pcsXM6X1.25

Bottom Cover Plate Screw (Nut) Tooth :6pcsXM6X1.25

The Working Stroke : MAX 200 mm to MIN 80 mm



Maximum diameter @ 100 PSIG (inch)
8.3
Maximum height (inch)
5.1
Maximum stroke (inch)
3
Minimum usable height (inches)
2.1
Force at 1 inch (lb) stroke @ 80PSI
2090
Force at a stroke of 3 inches (lbs) @ 80PSI
1030
Force at maximum stroke @ 80PSI (pounds)
940
Material
2-layer standard line
Air isolator
Design height
4.5
Load (at design height): 40 psig (lbs)
650
Load (at design height): 60 psig (lbs)
1010
Load (at design height): 80 psig (lbs)
1390
Natural frequency (@80 psig) (cpm)
162
Isolation percentage at mandatory frequency 400 CPM
80.2
Isolation percentage at mandatory frequency 800 CPM
95.7
Isolation percentage at mandatory frequency 1500 CPM
98.8





MODEL

STAN- DARD Code



HIGH- TEMP Code



Connection

Max

OD

MM

Min.

Height

MM

Max.

Height

MM

Total Travel

MM

Thread Air tion Hole

Connecting bolts or holes

N.

Connecting bolts or holes

Ø

16 93029 93086 P1 153 46 91 45 1/4” NPT 2 3/8” - 16 UNC
131 94047 No P1 165 50 110 60 1/4” NPT 2 3/8” - 16 UNC
110 93113 93114 P1 210 51 151 100 1/4” NPT 2 3/8” - 16 UNC
110 88540 93079 F1 210 45 145   No 6 M 8 x 1.25
110 88820 89023 F1 210 45 145   No 6 M 8 x 1.25
116 93027 No P1 231 46 152 106 1/4” NPT 2 3/8” - 16 UNC
19 94016 95015 P2 325 51 151 100 1/4” NPT 2 3/8” - 16 UNC
19 94014 No F2 325 43 143   No 12 M8x1



W01-358-0100 Rubber Bellows W01-358-0112 Firestone Air Spring M6 Bolt 0W01-358-0100 Rubber Bellows W01-358-0112 Firestone Air Spring M6 Bolt 1

TORPRESS AIR SPRING

BELLOWS ACTUATORS

MODEL

STAN- DARD HIGH- TEMP Connec- Max Min. Max. tion OD Height Height
  Code Code mm mm mm
16 93029 93086 P1 153 46 91
131 94047 ——— P1 165 50 110
  93113 93114 P1 210 51 151
110 88540 93079 F1 210 45 145
  88820 89023 F1 210 45 145
116 93027 ——— P1 231 46 152
  94016 95015 P2 325 51 151
  94014 ——— F2 325 43 143
23 B 202665 ——— F1 165 65 205
26 84181 89422 F2 220 85 245
20 86600 88538 F2 255 80 265
245 93740 202344 F1 27 82570 85 310
  94091 ——— P2 325 88 288
  88544 89425 F2 325 80 280
21 BR 89457 ——— F2 380 80 290
21A BR 97300 ——— F2 435 85 315
21B BR 92154 ——— F2 440 85 385
28 BR 92527 ——— F2 445 80 310
28 B 90559 ——— F2 485 85 375
  93056 ——— P3 570 90 330
29 93166 ——— F2 570 80 320
31 95210 ——— F2 700 85 700
325 203332 ——— F2 400 80 500
322 92615 ——— P4 310 133 408
879948173 ——— F2 310 125 400
321 88110 ——— F2 380 125 400
