| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 6X2 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Steel Cover Plate , Rubber Bellows | Bellows NO .: | 6 X 2 |
|---|---|---|---|
| Cross Norgre: | M/31062 | Plate Dia.: | 153.5mm |
| Max Dia.: | 175mm | Pressure Ability: | 0.2-0.8 MPa |
| Air Inlet: | G1/2 | Stroke: | 115 Mm |
| Natural H.: | 135.5 Mm | Bolts: | 4 Pcs Of M10 |
| Bolts DIA.: | 127 Mm | ||
| High Light: | Steel Cover Plate Industrial Air Spring,Pulp Mill Machine Industrial Air Spring,G1/2 Industrial Air Spring |
||
Industrial Air Spring GUOMAT NO. 6X2 Replace Norgren M31062 For Pulp Mill Machine
GUOMAT NO. 6X2 Cross other OEM:
GUOMAT Part NO. :6X2
Double Convoluted Air Spring 2B180-115 D185
Double Convoluted Air Spring 2B180-115 D185
Replaces These Air Springs (Air Bellows)
ContiTech Part NO.: FD 76-14 1/2 M10
ContiTech Part NO.: FD 76-14 DS G1/2
ContiTech Part NO.: FD 76-14 DS G1/2 CR
ContiTech Part NO.: FD 76-14 DS CR G1/2
ContiTech Part NO.: FD 76-14 DS CR / FD76-14DSCR / FD7614DSCR
ContiTech Bellow NO.: FD 76-14 / FD76-14 / FD7614
Firestone Part NO.:W01-R58-4070
Firestone Part NO.:W01 R58 4070
Firestone Part NO.:W01R584070
Firestone Part NO.:WO1-R58-4070
Firestone Part NO.:WO1 R58 4070
Firestone Part NO.:WO1R584070
Norgren Part NO.: M/31062 / M 31062 / M31062
Nominal Ø (inch) x convolutions: 6″ x 2 / 6″x2 / 6×2
Dunlop FR Part NO.: SP1482
Dunlop UK (Pneuride) Part NO.: PNP 30550 01 12 / PNP30550 0112

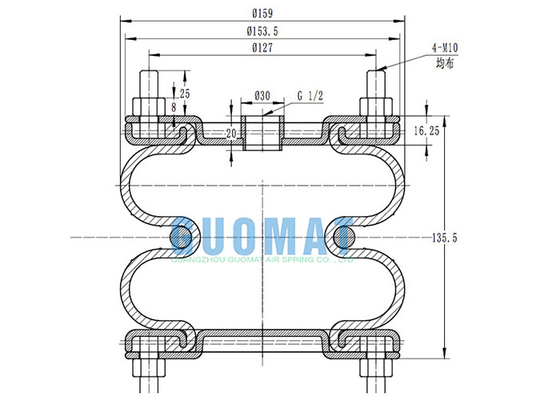

GUOMAT NO. 6X2 Specifications and Detail Technical Parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcs X M8
Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M8
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
❸ Cover Plate
Top Cover Plate Diameter (Width): 153.5 mm
Bottom Cover Plate Diameter (Width): 153.5 mm
Material top and bottom plate:Aluminium
❹Rubber Bellows
Diameter max at 7 bar:175MM
Stroke of Rubber Bellows:80mm-195m
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
max load at 80 mm height and 8 bar:1415 daN

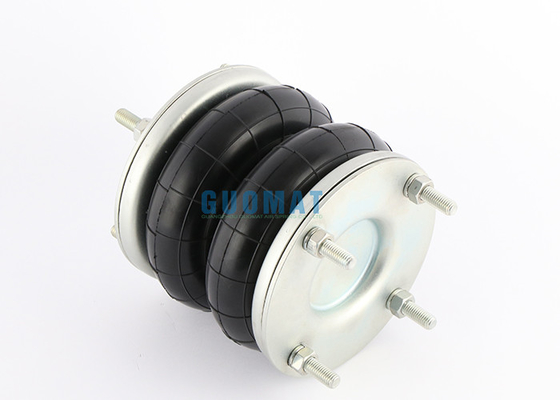

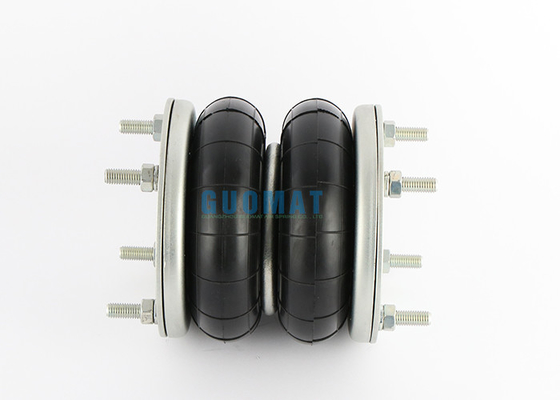

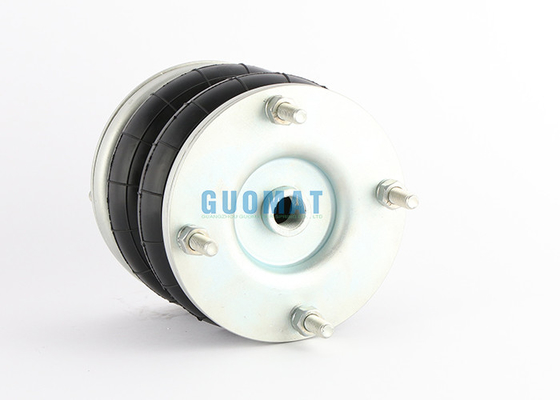

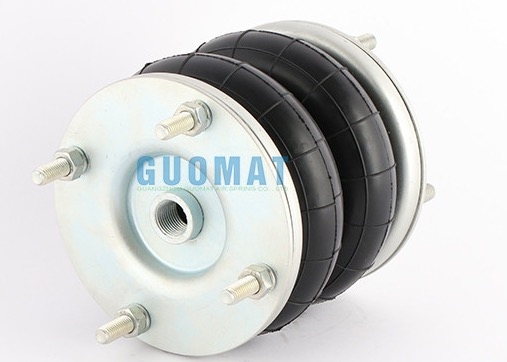

GUOMAT NO. 6X2 Double Convolution Air Spring Photo:
