| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 3B20F-2P03 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber And Iron/Steel | Firestone Part Number: | 3B20F-2P03 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 4.5 Kg |
| Other Name: | Air Actuators For Pneumatics | Pressure Ability: | 0.2-0.8 M Pa |
| GUOMAT: | 3B20F-2P03 | Gas Hole / Air Inlet: | 1/2 |
| High Light: | 3B20F-2P03 Industrial Air Spring,1/2 Gas Hole Industrial Air Spring,Industrial Air Spring TS16949 |
||

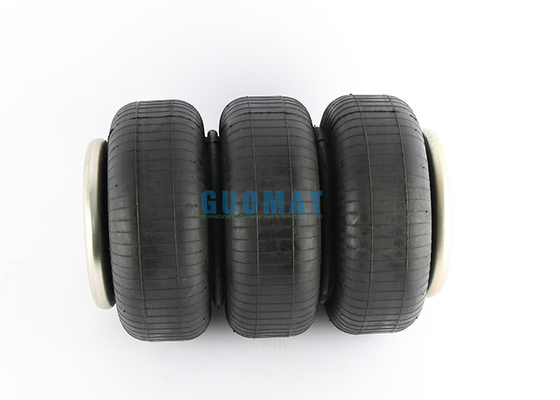

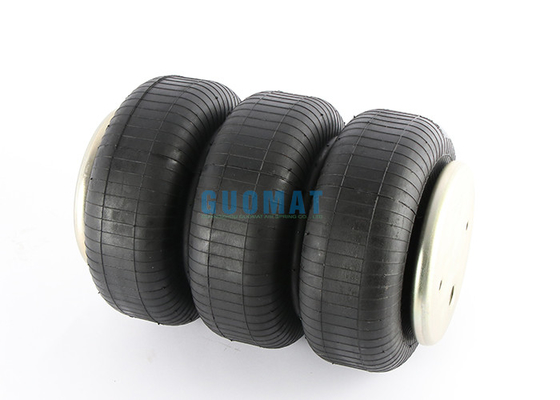

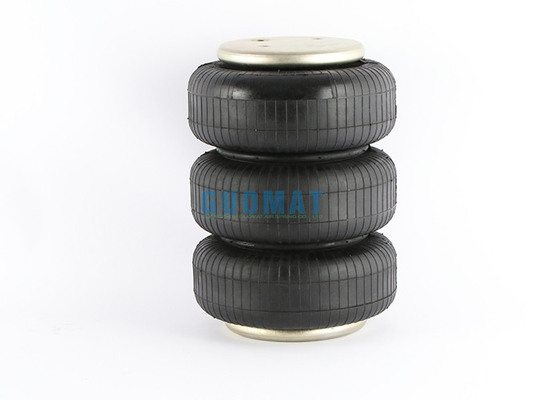

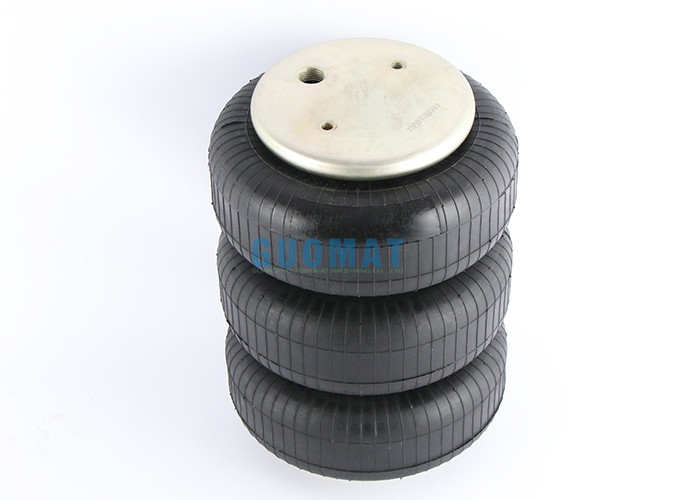

Industrial Air Spring GUOMAT 3B20F-2P03 With Rubber Bellows Diameter 223 mm Natural H.340 MM

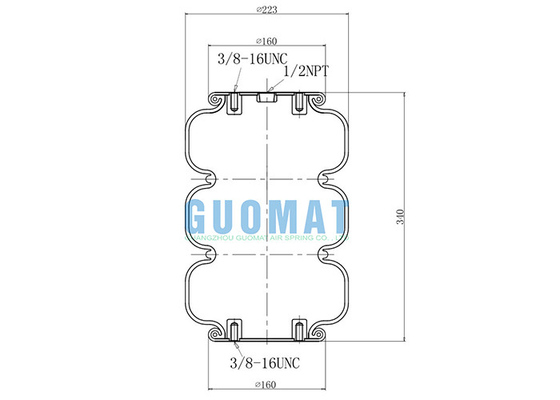

Specifications and Technical Data of 3B20F-2P03
Just the Gas Hole / Air inlet : 1/2 NPT
Top Cover Plate Diameter: 6.31 inches / 160mm
Bottom Piston Number: 3090
Bottom Cover Plate Diameter: 6.31 inches / 160mm

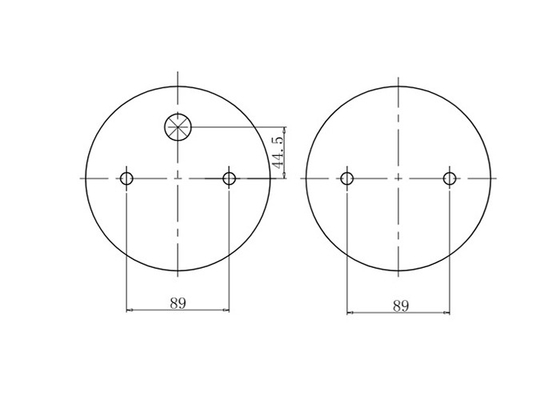

Screw Center Distance : 89 mm
Distance Gas Hole Between Nut 44.5 mm
Top Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter 223 mm
The Working Stroke : MAX 400 mm to MIN 200 mm
OEM Original Equipment Manufacturer:
| BELLOW Numbers | COMPLETE Numbers |
| GUOMAT 20F-2P03 | GUOMAT 3B20F-2P03 |
