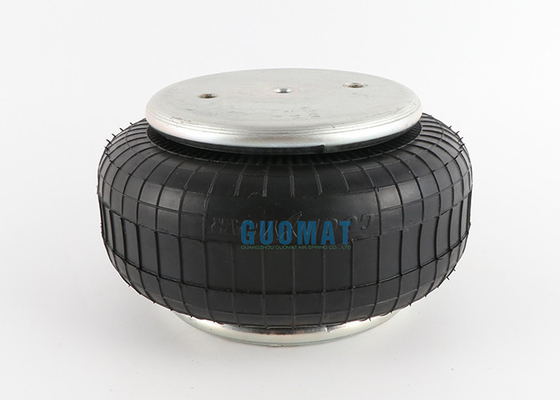

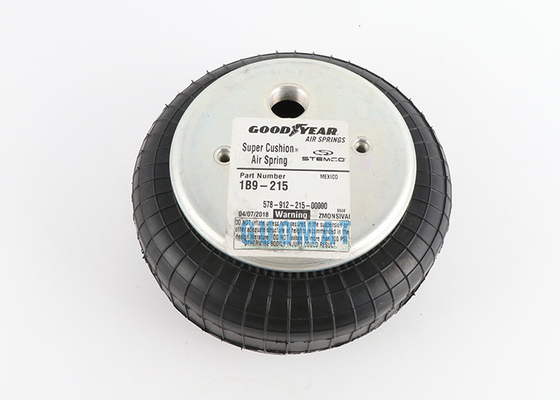

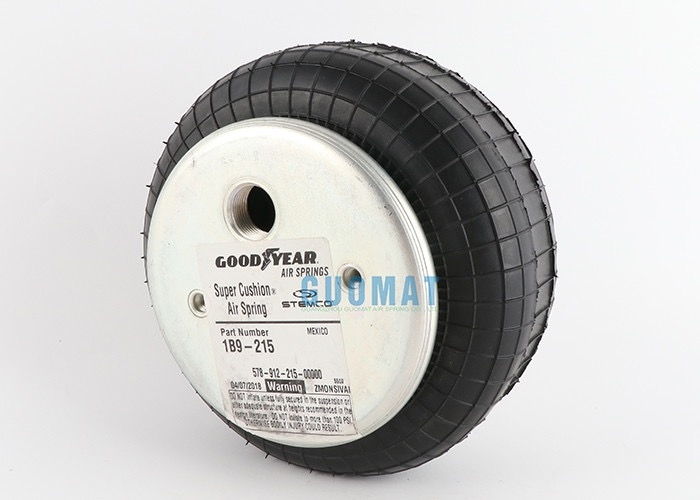

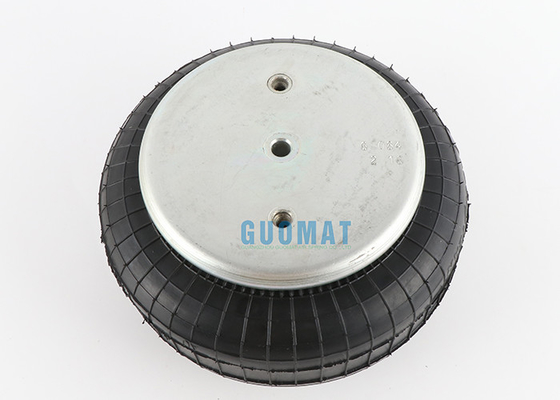

W01-M58-6374 Firestone Air Spring Refer To FS 200-10 CI G 3/4 Goodyear 1B9-215

Name: W01-M58-6374 Firestone Air Spring Refer To FS 200-10 CI G 3/4 Goodyear 1B9-215
Brand: Goodyear
SKU: 1B9-215
Rating: 4.9 (185 reviews)

Product Details:

Place of Origin:	China
Brand Name:	Goodyear
Certification:	ISO/TS16949:2009
Model Number:	1B9-215

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union,Paypal or Others
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Steel And Rubber	Firestone:	W01-M58-6374
Warranty:	12 Months	Weight:	2.3 Kg
Other Name:	Air Bags For Pneumatics	Pressure Ability:	0.2-0.8 M Pa
Air Inlet:	G 3/4	Cover Plate Screw (Nut) Tooth:	2 Pcs X M8X1.25
Dunlop(FR):	9’’1/4x1 S09101	Goodyear:	1B9-215
Goodyear Bellows:	578-91-3-201
High Light:	W01-M58-6374 Firestone Air Spring , 1B9-215 Firestone Air Spring , 578-91-3-201 Firestone Air Spring

Firestone Air Spring W01-M58-6374 Refer to FS 200-10 CI G 3/4 Goodyear 1B9-215

Characteristics of air springs:

1. Long service life, self-sealing type has excellent durability due to less rubber deformation during expansion and contraction.

exist

2. The maintenance is very simple, there is no friction sliding part, so there is no need to add lubricating oil.

ONLIN

3. The installation height can be reduced. Compared with other springs, the installation height can be reduced and the stroke can be effectively increased.

OEM Original Equipment Manufacturer:

BELLOW NO.	COMPLETE NO.
Goodyear Part # 1B9-215 Goodyear Part # 1B9 215 Goodyear 578-91-3-201 Goodyear 578913201	AIRKRAFT 111004
CONTITECH FS 200-10 60319	CONTITECH FS 200-10
FIRESTONE FLEX 115	2681 045000
FIRESTONE W01-358-0118	FIRESTONE W01 M58 6374
FIRESTONE W01-M58-6374	DUNLOP (FR) 9"1/4x1 S09101
FIRESTONE W01 M58 6374 W01M586374,W01-M58-6374,WO1M586374,WO1-M58-6374	BOSCH 822419004
AIRKRAFT 112005	FESTO EB-250-85
FIRESTONE W01M586374	NORGREN PM/31091 (91/4x1)
CONTITECH FS 200-10 CI G 3/4 FS200-10CIG3/4OS	WEFORMA WBE 400-E1

Specifications of W01-M58-6374 Refer to FS 200-10 CI G 3/4 Goodyear 1B9-215

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25
Screw Center Distance of Bottom Cover Plate : 89 mm

❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G3/4

❸ Cover Plate
Top Cover Plate Diameter (Width): 160 mm
Bottom Cover Plate Diameter (Width): 160 mm

❹Rubber Bellows
Rubber Bellows Natural Diameter : 220 mm
Rubber Bellows Natural Height : 110 mm

❺ Bumper block / Buffer block
Without Bumper Block

❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :Without Girdle Hoop

REASONS FOR USING AIR SPRINGS Bellows

To offer a more comfortable ride for vehicle owners.
To obtain better goods protection through lower spring rate and
natural frequency
To let longer vehicle life through less damage from road
shock and vibration.
To make a lighter vehicle possible, thus allowing an equivalent
increase in cargo mass.

Other product parameters of W01-M58-6374 Refer to FS 200-10 CI G 3/4 Goodyear 1B9-215

Design Height	5.5	Maximum Stroke (kN)	6.5
Maximum Height (mm)	51	High Strength Style Number	124
Maximum Stroke (mm)	79	Material	2-Ply Standard Cord
Minimum Usable Height (mm)	130	Bead plate Type	3
25 mm (kN)	14.3	Dim# A (Blind Nut Centers) (mm)	89
50% of Max Stroke (kN)	13.2	Dim# B (mm)	38
Design Height (mm)	114

Compressed height
2.01"
Maximum deployment height
5.51"
The maximum diameter
9.84"
Maximum inflation pressure
120 psi
Maximum stroke
3.5"
Inlet type
Metric
Air inlet
3/4"
series
C
lowest temperature
-76°F
Maximum temperature
158 degrees F
Bellows type
Single twist
weight
0.2 lbs.
