| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B6375 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Steel | FIRESTONE: | W01-358-7460 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 1.6 Kg |
| Other Name: | Industrial Firestone Air Shock | Pressure Ability: | 0.2-0.8 M Pa |
| CONTITECH: | FS200-10 | Rubber Bellows: | W01-358-0118 |
| High Light: | W01-358-7459 Industrial Air Spring,Rubber Bumper Industrial Air Spring,Industrial Firestone Air Shock |
||

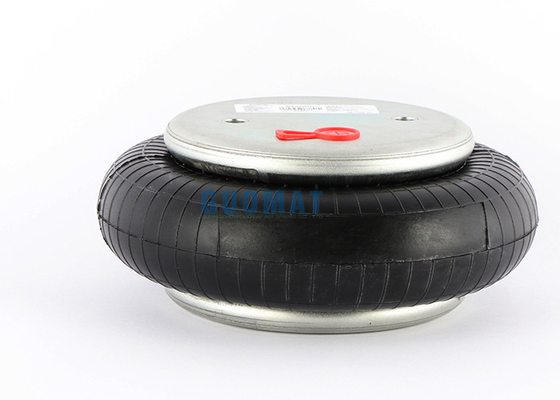

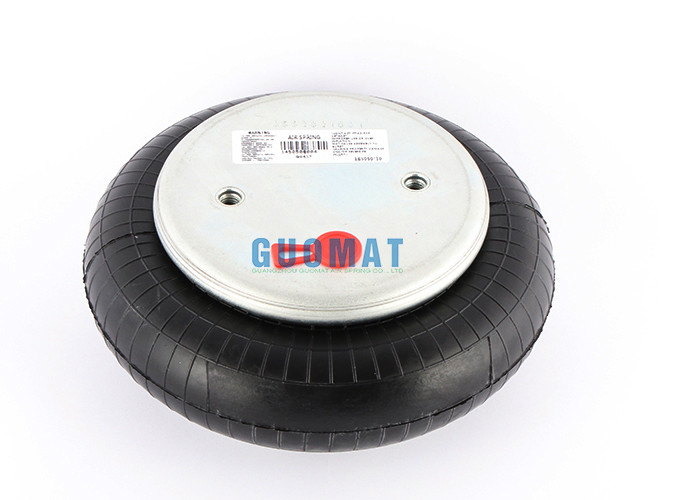

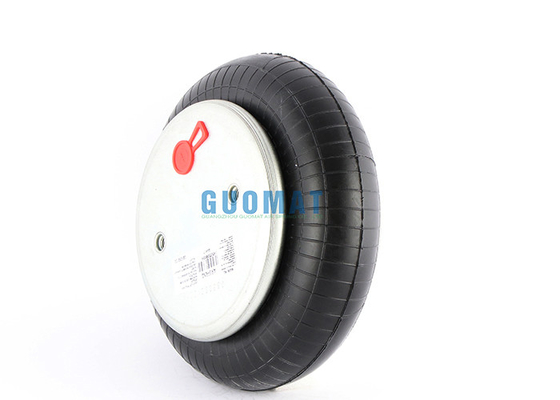

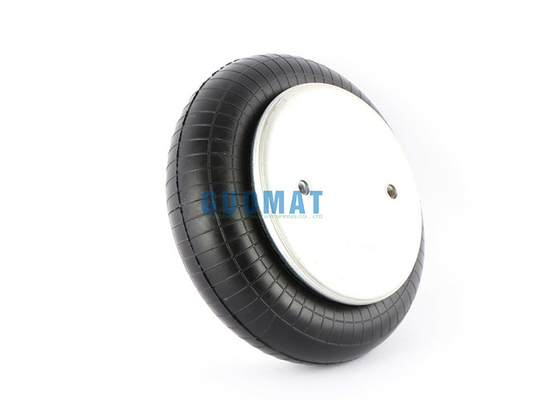

W01-358-7459 Firestone Industrial Air Spring With Rubber Bumper For BLOWER AND MOTOR
GUOMAT NO. 1B7459 Cross other OEM
GUOMAT Part Number:1B7459
Style 115 Two Ply Bellows
Blind nuts, 1/4 NPT rubber bumper
W01-358-7459;
Firestone Part Number:W01-358-7459
Firestone Part Number:WO13587459
Firestone Part Number:WO1-358-7459
Firestone Part Number:W013587459
Firestone Part Number:W01 358 7459
ContitechPart Number:FS 200-10 CI 1/4 NPT OS B
Contitech Part Number: FS200-10CI1/4NPTOSB
ContitechPart Number:FS 200-10 CI 1/4 NPT
Contitech Part Number: FS200-10CI1/4NPT
ContitechPart Number:FS 200-10
Contitech Part Number: FS200-10
W01-358-7459,W013587459,WO1-358-7459,WO13587459
GUOMAT NO. 1B7459 Product Description
Technical Data
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16 BLIND NUTS (5/8 DEEP)
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16 BLIND NUTS (5/8 DEEP)
Screw Center Distance of Bottom Cover Plate : 89 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4 or 3/4 NPT AIR INLET
Screw Center Distance Between Gas Hole and Nut : 44.5 mm
❸ Cover Plate
Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 257 mm
Rubber Bellows Natural Diameter : 220 mm
The Working Stroke : MIN 50 mm to MAX 140 mm
Maximum Height : 140 mm
Minimum Height :50mm
Stroke Height : 90mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :no One Pieces of Girdle Hoop
GUOMAT NO. 1B7459 VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS
| Pressure p [psi] | 40 | 60 | 80 | 100 | 120 | Vol. V [in.³] | |
| Force (load) F [lbf] | 981 | 1,530 | 2,040 | 2,570 | 3,090 | 124 | |
| Spring rate c [lbf/in] | 701 | 1,000 | 1,290 | 1,560 | 1,870 | 124 | |
| Natural Frequency f0 [Hz] | 2.7 | 2.7 | 2.6 | 2.5 | 2.5 | 124 | |
| Design height H: recommended 4.53 inch, minimum 3.94 inch | |||||||
GUOMAT NO. 1B7459 PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES
| Force F [lbf] | |||||||
| Pressure p [psi] | 40 | 60 | 80 | 100 | 120 | Vol. V [in.³] | |
| H 4.50 in. | 939 | 1440 | 1920 | 2430 | 2950 | 120 | |
| H 4.00 in. | 1120 | 1690 | 2260 | 2850 | 3430 | 110 | |
| H 3.50 in. | 1250 | 1880 | 2530 | 3170 | 3850 | 96 | |
| H 3.00 in. | 1370 | 2050 | 2760 | 3460 | 4170 | 83 | |
| H 2.50 in. | 1450 | 2170 | 2930 | 3640 | 4410 | 68 | |
GUOMAT NO. 1B7459 air spring for BLOWER AND MOTOR:
