| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B7458 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Steel | FIRESTONE: | W01-358-7458 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 1.6 Kg |
| Other Name: | Industrial Firestone Air Shock | Pressure Ability: | 0.2-0.8 M Pa |
| CONTITECH: | FS200-10 | Rubber Bellows: | W01-358-0118 |
| Firestone: | 115 | ||
| High Light: | 6 Inch Height Industrial Air Spring,W01-358-7458 Industrial Air Spring,Bag Flattener Air Spring |
||

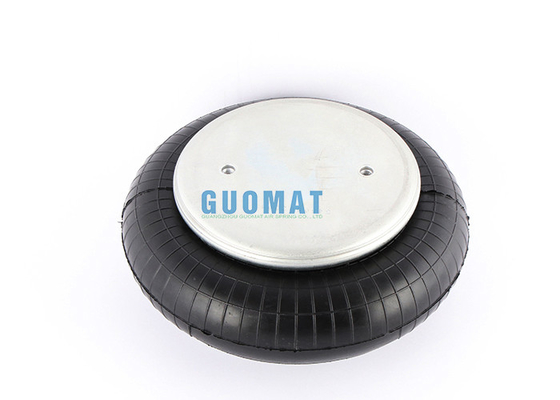

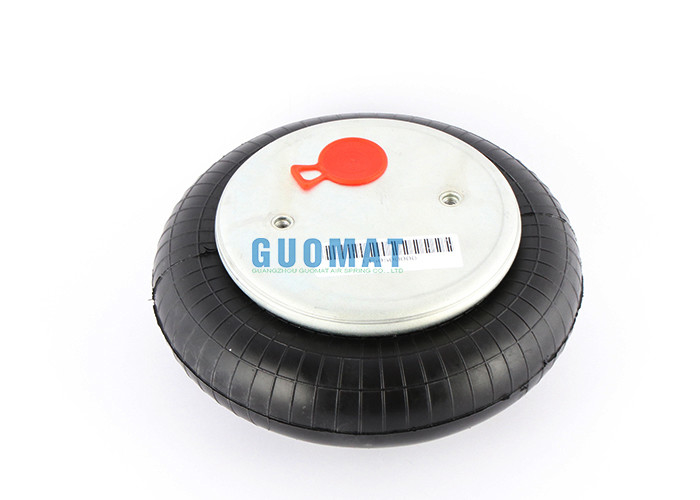

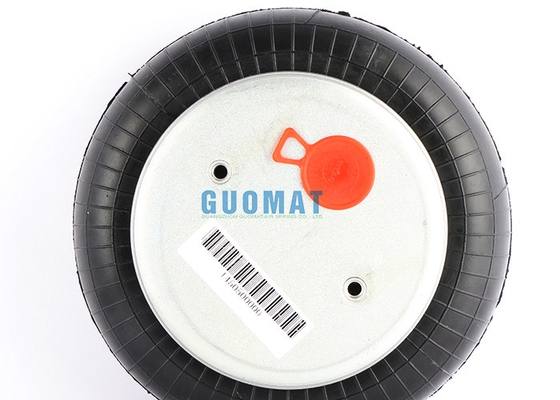

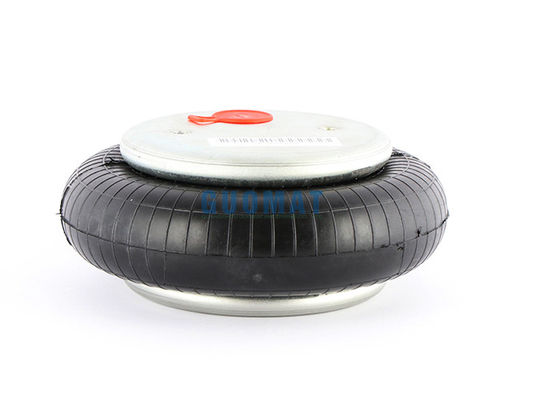

Industrial Air Spring Firestone W01-358-7458 Max Height 6 Inch For BAG FLATTENER
OEM Original Equipment Manufacturer:
GUOMAT Part Number:1B7458
Firestone Part Number:W013587458
Firestone Part Number:W01-358-7458,
Firestone Part Number:WO13587458,
Firestone Part Number:WO1-358-7458
Contitech Part Number:FS200-10 CI 3/4NPTOS
Contitech Part Number:FS200-10 3/4NPT
Contitech Part Number:FS 200-10
Blind nuts, 3/4 NPT rubber bumper
W01-358-7458;
Firestone Part Number:W01-358-7458
Firestone Part Number:WO13587458
Firestone Part Number:WO1-358-7458
Firestone Part Number:W013587458
Firestone Part Number:W01 358 7458
GUOMAT 1B7458 Product Description
Technical Data
GUOMAT Part Number:1B7458, bellows type industrial air spring, single-turn, 200 cm2 effective area, 10 cm maximum stroke, crimped bead plate, internal thread mounting thread, 3/4 NPT, offset
Manufacturer: China GUOMAT Mainland
Air inlet
3/4"
series
C
lowest temperature
-76°F
Maximum temperature
158 degrees F
Bellows type
Single twist
weight
5.07 pounds.
Compressed height
2.01"
Maximum deployment height
5.51"
The maximum diameter
9.84"
Maximum inflation pressure
120 psi
Maximum stroke
3.5"
Inlet type
empire
GUOMAT 1B7458 Size in mm
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16 BLIND NUTS (5/8 DEEP)
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16 BLIND NUTS (5/8 DEEP)
Screw Center Distance of Bottom Cover Plate : 89 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/4 NPT AIR INLET
Screw Center Distance Between Gas Hole and Nut : 44.5 mm
❸ Cover Plate
Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm
❹ Rubber Bellows
Rubber Bellows MAX Diameter: 257 mm
Rubber Bellows Natural Diameter : 220 mm
The Working Stroke : MIN 50 mm to MAX 140 mm
Maximum Height : 140 mm
Minimum Height :50mm
Stroke Height : 90mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :no One Pieces of Girdle Hoop
GUOMAT 1B7458 air spring for BAG FLATTENER:
