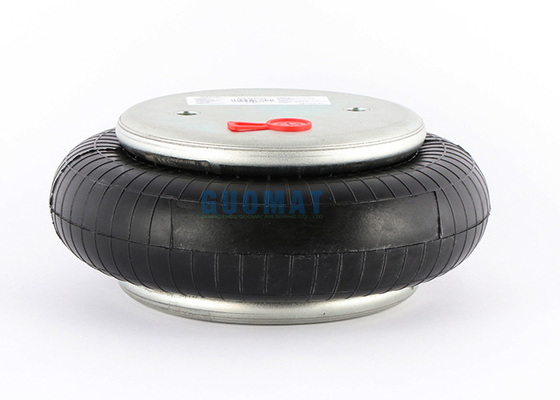

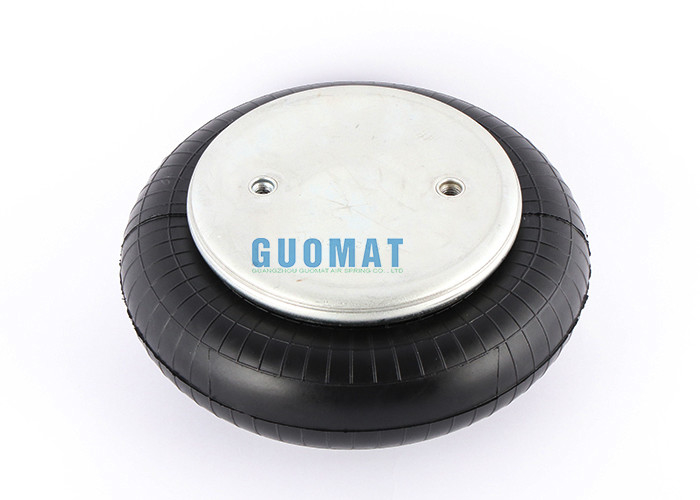

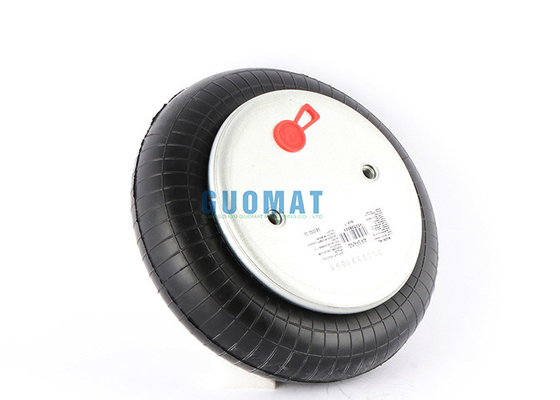

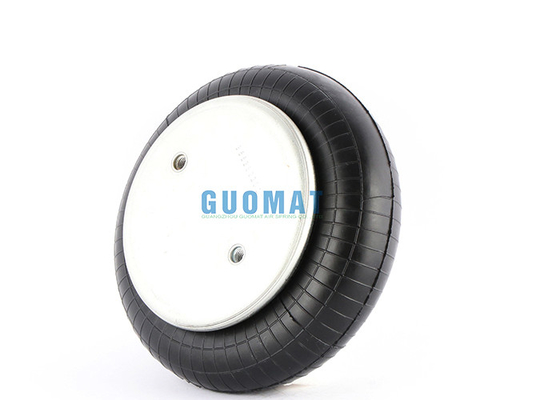

W01-358-7650 Firestone Industrial Air Spring High Strength Bellows Style 124 For Quick Lock Device

W01-358-7650 Firestone Industrial Air Spring High Strength Bellows Style 124 For QUICK LOCK DEVICE

GUOMAT NO. 1B7650 Cross other OEM

Style:124 High Strength Con-struction

Blind nuts, 1/4 NPT
W01-358-7650;

Firestone Part Number:W01-358-7650

Firestone Part Number:WO13587650

Firestone Part Number:WO1-358-7650

Firestone Part Number:W013587650

Firestone Part Number:W01 358 7650

GUOMAT NO. 1B7650 Product Description

Technical Data

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16 BLIND NUTS (5/8 DEEP)

Screw Center Distance of Top Cover Plate : 89 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16 BLIND NUTS (5/8 DEEP)

Screw Center Distance of Bottom Cover Plate : 89 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 or 3/4 NPT AIR INLET

Screw Center Distance Between Gas Hole and Nut : 44.5 mm

❸ Cover Plate

Top Cover Plate Diameter: 160 mm

Bottom Cover Plate Diameter: 160 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 257 mm

Rubber Bellows Natural Diameter : 220 mm

The Working Stroke : MIN 50 mm to MAX 140 mm

Maximum Height : 140 mm

Minimum Height :50mm

Stroke Height : 90mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :no One Pieces of Girdle Hoop

Maximum diameter @ 100 PSIG (inch)
10.1
Maximum height (inch)
5.1
Maximum stroke (inch)
2.9
Minimum usable height (inches)
2.2
Force at 1 inch (lb) stroke @ 80PSI
3510
Force at a stroke of 3 inches (lbs) @ 80PSI
2080
Force at maximum stroke @ 80PSI (pounds)
1820
Material
2-layer high-strength flexible cord
End cap details
Bead plate type
3
Blind nut center (inch)
3.5
Port offset of blind hole nut centerline (inches)
1.75
Air isolator
Design height
4.5
Load (at design height): 40 psig (lbs)
1210
Load (at design height): 60 psig (lbs)
1880
Load (at design height): 80 psig (lbs)
2540
Natural frequency (@80 psig) (cpm)
151
Isolation percentage at mandatory frequency 400 CPM
83.4
Isolation percentage at mandatory frequency 800 CPM
96.3
Isolation percentage at mandatory frequency 1500 CPM
99

Other kinds of air springs Models we can produce:

Style:124 High Strength Con-struction

Blind nuts, 1/4 NPT
W01-358-7650;

Firestone Part Number:W01-358-7650

Firestone Part Number:WO13587650

Firestone Part Number:WO1-358-7650

Firestone Part Number:W013587650

Firestone Part Number:W01 358 7650

Blind nuts, 3/4 NPT
W01-358-7649

Firestone Part Number:W01-358-7649

Firestone Part Number:WO13587649

Firestone Part Number:WO1-358-7649

Firestone Part Number:W013587649

Firestone Part Number:W01 358 7649

GUOMAT NO. 1B7650 air spring for QUICK LOCK DEVICE:
