| Place of Origin: | China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 2B4.5X1 |
| Minimum Order Quantity: | 1pc |
|---|---|
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Aluminum Alloy And Rubber | Continental: | FS 44-5 |
|---|---|---|---|
| Warranty: | 12 Months | Net Weight: | 1.2 KG |
| Other Name: | Air Isolator | Pressure Ability: | 0.2-0.8 M Pa |
| Gross Weight: | 1.8 KG | Flange Ring: | With |
| Connection Method: | Flange Connection | ||
| High Light: | M/31041 Norgren Industrial Air Spring,Flange Connection Industrial Air Spring,Small Machine Vabration Industrial Air Spring |
||

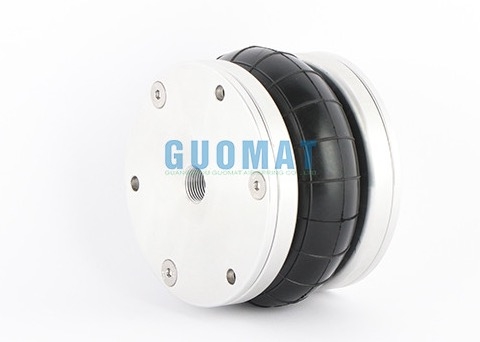

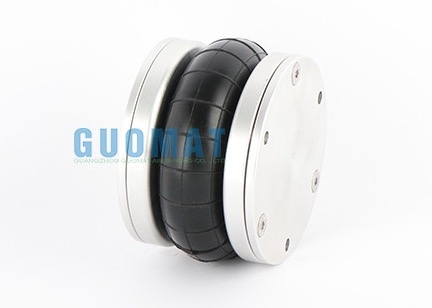

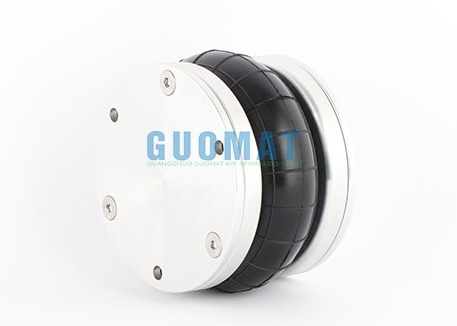

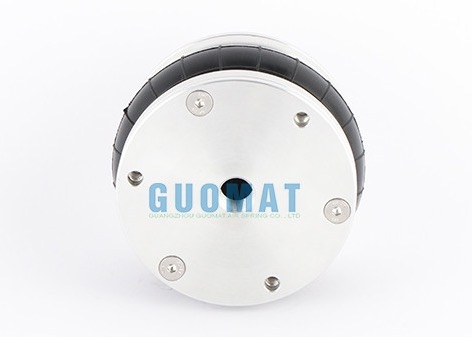

M/31041 Norgren Air Spring 4 1/2"X1 Continental FS 44-5 For Small Machine Vabration
GUOMAT 2B4.5X1 AIR SPRING Cross other OEM:
GUOMAT Part Number:2B4.5X1
Continental FS 44-5 DI G 3/8 CR
Continental FS44-5 DI G 3/8 CR
Continental FS44-5 DI G 3/8
Contitech Part Number:70205,
Contitech Part Number:FS44-5DIG3/8CR
Contitech Part Number:FS 44-5 DI G 3/8 CR
Contitech Part Number:FS44-5 DI G 3/8 CR
Contitech Part Number:FS44-5 DI G 3/8
DUNLOP Part Number:SP 2334
DUNLOP Part Number:SP2334
Firestone Part Number:W01R584050,
Firestone Part Number:W01-R58-4050,
Firestone Part Number:WO1R584050,
Firestone Part Number:WO1-R58-4050
European ContiTech: FS 44-5 70205
European ContiTech: FS 44-5 DI CR 70205
European ContiTech: FS44-5 G3/ 8 M6
European ContiTech: FS44 -5 DICRG3/ 8
European ContiTech: FS 44- -5 DI CR G3/8 M6
Continental ContiTech: FS 44-5 DI G3/8 CR
Continental ContiTech: FS 44-5 DI CR / FS44- -5DICR / FS445DICR
ContiTech Bellows: FS 444-55 / FS445
ЛѦВ: W01-R58- -4050 1 W01 R58 4050 1 W01R584050
Firestone model: 4 1/2” x1
Dunlop FR: 4/x1 SP2334
Dunlop UK NP9NP901056050505
Norgren: M/31041 / M 31041／M31041
Nominal diameter 0 (inch) x convolution: 4 1/2” x1
: 9109400
Guomat 2B4.5X1 Industrial Double Convoluted Air Spring Specifications
bellows type industrial air spring,
single-turn,
effective area: 44 cm2
maximum stroke, 5 cm
connecting parts, detachable
internal thread installation thread, G3/8 BSPP
Manufacturer: GUOMAT
| Compressed height | 1.97" | Inlet type | Metric |
| Maximum deployment height | 3.54" | Air inlet | 3/8" |
| The maximum diameter | 4.92" | series | D |
| Maximum inflation pressure | 120 psi | lowest temperature | -22°F |
| Maximum stroke | 1.57" | Maximum temperature | 194 degrees F |
| weight | 1 pound. | Bellows type | Single twist |
2B4.5X1 Air Springs Quick details:
Range: PM / 31000
Medium: compressed air
Operation mode: single action
Stroke length: 80 mm
Stomatal size: G3/8
Nominal diameter: 4-1/2"
Convolution number: 2
Operation mode: single action
Working pressure: 0 ... 8 bar
Working temperature: -30 ... 50°C
Stroke length: 80 mm
Theoretical power: 5750 N
Certification-REACH: available on request
Certification-RoHS compliant: available on request
Certification-IOS: 9001
Classification-eClass 11: 51010390
Classification-HS Code: 84123100
Classification-HTS code: 8412310000
Classification-UNSPCS code: 31251504
Size-Diameter: 125.0 mm
Size-Length: 65.0 mm
Size-weight: 0.950 kg
Size-Unit of Measurement: EA
Performance-shelf life: 5 years
❶Nut / Blind Nut
The Long Of The Nut:13.5 mm
Top Cover Plate Screw number: 4 pcs
Bottom Cover Plate Screw number : 4 pcs
Top Cover Plate Screw (Nut) Tooth : M10
Screw Center Distance of Top Cover Plate : 93mm
Bottom Cover Plate Screw (Nut) Tooth : M10
Screw Center Distance of Bottom Cover Plate : 93mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G3/8
❸ Cover Plate
Top Cover Plate Diameter: 110 mm
Bottom Cover Plate Diameter: 110 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter : 120mm
Rubber Bellows Natural Height :115 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop: one piece of Girdle Hoop
