SP1490 DUNLOP Industrial Air Spring Cross to UK PNP305500112 WEFORMA WBZ-G 350

Name: SP1490 DUNLOP Industrial Air Spring Cross to UK PNP305500112 WEFORMA WBZ-G 350
Brand: GUOMAT
SKU: 2Y205130
Rating: 4.9 (163 reviews)

Product Details:

Place of Origin:	Guangdong,China
Brand Name:	GUOMAT
Certification:	ISO/TS16949:2009
Model Number:	2Y205130

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Packaging Details:	strong carton box or as customers need
Delivery Time:	2-8 work days
Payment Terms:	T/T, Western Union,Paypal or Others
Supply Ability:	1000pcs/week

Contact Now

Detailed Product Description

Material:	Steel Cover Plate , Rubber Bellows	DUNLOP:	SP1490 / SP 1490
WEFORMA:	WBZ-G 350	Firestone:	W01R584090
Plate Dia.:	153.5mm	Max Dia.:	175mm
Pressure Ability:	0.2-0.8 MPa	Air Inlet:	G1/2
Stroke:	115mm
High Light:	SP1490 DUNLOP Industrial Air Spring , Stroke 115mm Industrial Air Spring , G1/2 Air Inlet Industrial Air Spring

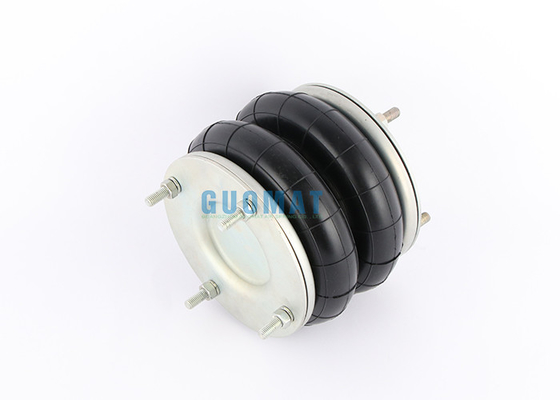

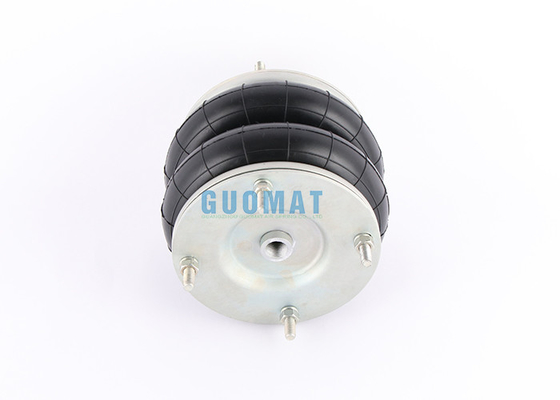

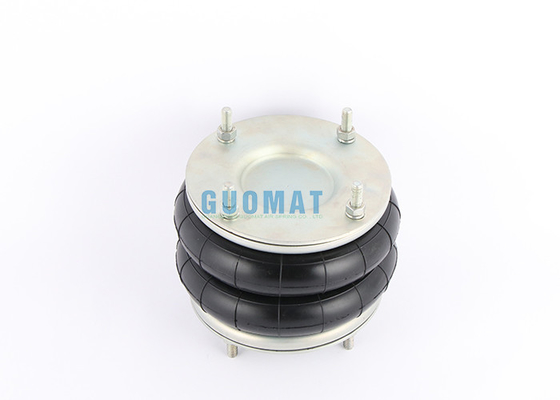

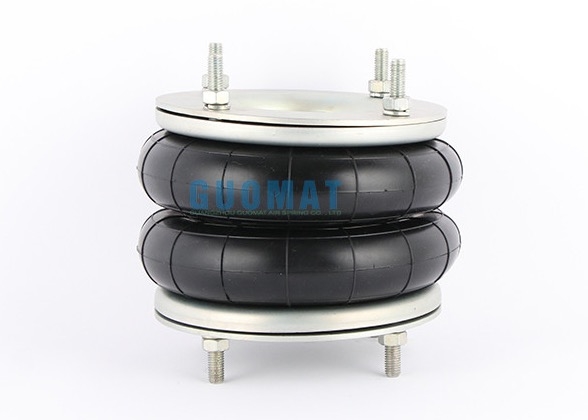

SP1490 DUNLOP Air Spring Cross to UK PNP305500112 WEFORMA WBZ-G 350

GUOMAT 2Y205130 Cross OEM :

GUOMAT Part Number:2Y205130

DUNLOP Part Number:SP1490

DUNLOP Part Number:UK PNP305500112

Goodyear Bellows Number: 578-92-3-21

DUNLOP: A06030604

DUNLOP: SP1490

Goodyear BellowsNumber:: 578-92-3-21

Goodyear Bellows Number:: 578-92-3-21
WEFORMA Part Number: WBZ-G 350

WEFORMA Part Number:WBZG350

Convoluted Air Spring
References
CONTITECH FD 138-18
DUNLOP SP 1490 (8x2 )
FRUEHAUF F 48054
GRANNING 15803
LOHR A06030604
SAMRO H2500188

Norgren Part Number:M/31082

Norgren Part Number:M 31082

Norgren Part Number:M31082

Goodyear Part Number:2B8-2150

Goodyear Part Number:2B8 2150

Goodyear Part Number:2B8-2150

Continental Part Number: FD 138-18 DS 66505

Continental Part Number: FD 138-181/2 M10

Continental Part Number: FD 138-18 DS 1/2 M10

Continental Part Number: FD-138 DS G1/2

Continental Part Number: FD 138-18 DS G1/2 M10

Continental Part Number: FD 138-18 DS 1 FD138-18DS 1 FD13818DS

Continental Part Number:: FD 138-18 / FD138-13-181 1

Contitech Part Number: FD 138-18 DS 66505

Contitech Part Number: FD 138-181/2 M10

Contitech Part Number: FD 138-18 DS 1/2 M10

Contitech Part Number: FD-138 DS G1/2

Contitech Part Number: FD 138-18 DS G1/2 M10

Contitech Part Number: FD 138-18 DS 1 FD138-18DS 1 FD13818DS

Contitech Part Number:: FD 138-18 / FD138-13-181 1

Specifications of Style 8" x2

Compressed height	Metric
2.95"	Air inlet
Maximum deployment height	1/2"
9.84"	series
The maximum diameter	D
9.06"	lowest temperature
Maximum inflation pressure	-76°F
120 psi	Maximum temperature
Maximum stroke	158 degrees F
6.89"	Bellows type
Inlet type	Double zigzag
	weight
	1 pound.

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4pcs X M10

Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2

❸ Cover Plate

Top Cover Plate Diameter (Width): 184 mm

Bottom Cover Plate Diameter (Width): 184 mm

Material top and bottom plate:Steel

❹Rubber Bellows

Diameter max at 7 bar:225MM

Stroke of Rubber Bellows:75mm-225m

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

max force at stroke 25 mm and 5 bar 12,3 kN
Rubber material Standard up to 70°C natural rubber
Bellows type industrial air spring,
Double spin,
138 square centimeters of effective area,
18 cm maximum stroke,
Bellows only

Features
Single acting
Aperture (inch)
8
Stroke length (mm)
175
Port size (inch)
G1/2
End cap material
aluminum
body fluid
Compressed air
Working temperature (°C)
From -40 to 70
Working pressure (bar)
From 0 to 8

578 238209
Bag 1 Fuelle 1 Flex member
Top cover
Code E.0.
top cover
Code E.0.
upper bead plate
O.E. code
lower lid
lower cover
lower bead plate
Flange
Flanges.
bead ring
Flap
similar code
top
Equivalences
firestone
internal bumper
cross replace
26
maximum height
Dunlop
Maximum height
8"X2
Max. Height
250 mm
SP1490
Minimum height
Minimum height
Min. Height
75 mm
maximum diameter
maximum diameter
Max Diameter
Ø220mm
