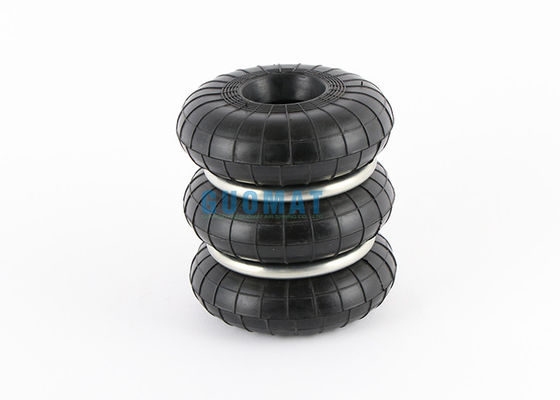

2.7Hz Guomat F-100-3 Cross Yokohama Rubber Air Spring S100-3R 3 Convolution

2.7Hz Guomat F-100-3 Cross Yokohama Rubber Air Spring S100-3R 3 Convolution

  • 2.7Hz Guomat F-100-3 Cross Yokohama Rubber Air Spring S100-3R 3 Convolution
  • 2.7Hz Guomat F-100-3 Cross Yokohama Rubber Air Spring S100-3R 3 Convolution
  • 2.7Hz Guomat F-100-3 Cross Yokohama Rubber Air Spring S100-3R 3 Convolution
2.7Hz Guomat F-100-3 Cross Yokohama Rubber Air Spring S100-3R 3 Convolution
Product Details:
Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: F-100-3
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber And Stainless Steel Yokohama: S-100-3R
GUOMAT: F-100-3 Layer Number: 3 Convolution
Using Maximum Internal Pressure: 0.88 Mpa Vibration Frequency: 2.7 Hz
Outside Opening DIA: 55 Mm
High Light:

Cross Yokohama Rubber Air Spring

,

Guomat F-100-3 Rubber Air Spring

,

3 Convolution Rubber Air Spring

GUOMAT F-100-3 Cross Yokohama Rubber Air Spring S100-3R Triple Small DIA.





GUOMAT F-100-3 Cross other OEM:



GUOMAT Part NO.: F-100-3

GUOMAT Bellows NO.: 100-3

Yokohama Part NO.: S-100-3R

Yokohama Part NO.: S-100-3

Yokohama Part NO.: S100-3R

Yokohama Part NO.: S100-3





GUOMAT F-100-3 items Detailed Parameter Table:



GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)

F-100-3 S-100-3 157.1 227 82 ±53 160






GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)

F-100-3 S-100-3 93 1.8 4.2 78 2.2 0.88 2.9-3.9






GUOMAT F-100-3 product description:



Punch air springs are different from other types of air springs.
The punch air spring is more complex and strict in the manufacturing process; the force of the punch air spring is also different, so the bag of the punch air spring is thicker and resistant to impact.



air spring of the presses is divided into single, double, three, four and five. Punch the air spring mattress made from natural rubber after a series of process of rubber skin, use the making craft of the air spring on the punch than ordinary industrial air spring is much more complex, therefore, the cost will be higher, the price is a natural a lot higher than the other. There are stainless steel rings in the middle, stainless steel ring in the single layer, and a steel ring in the hyperbolic. F-100-3 three curves contain two steel rings,The F-100-3 three curves contain two steel rings, and the fourth one contains three steel rings, and the fifth one contains four steel rings.









2.7Hz Guomat F-100-3 Cross Yokohama Rubber Air Spring S100-3R 3 Convolution 02.7Hz Guomat F-100-3 Cross Yokohama Rubber Air Spring S100-3R 3 Convolution 1
