| Place of Origin: | Guangdong,China |
| Brand Name: | GUOMAT |
| Certification: | ISO/TS16949:2009 |
| Model Number: | F-120-3 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,paypal or others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber And Stainless Steel | Yokohama: | S-120-3R |
|---|---|---|---|
| GUOMAT: | F-120-3R | Layer Number: | 3 Convolution |
| Using Maximum Internal Pressure: | 0.88 Mpa | Vibration Frequency: | 2.7 Hz |
| 0.7Mpa Max: | 184 Mm | Minimum Height: | 82mm |
| High Light: | Yokohama S-120-3R Rubber Air Spring,High 152mm Rubber Air Spring,Guomat F-120-3R Triple Convoluted Air Bags |
||

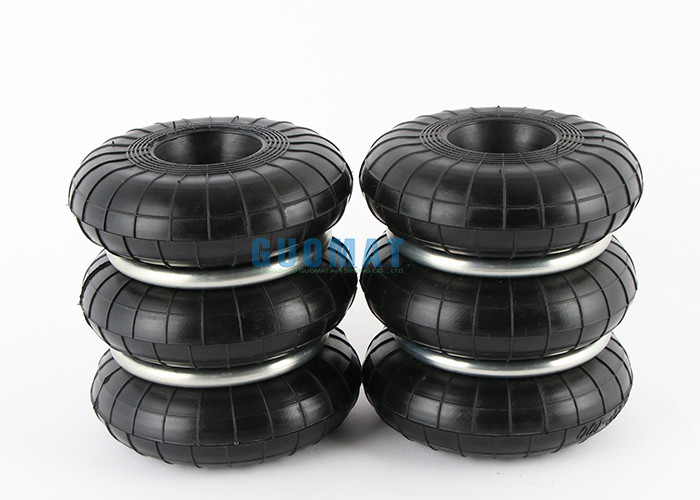

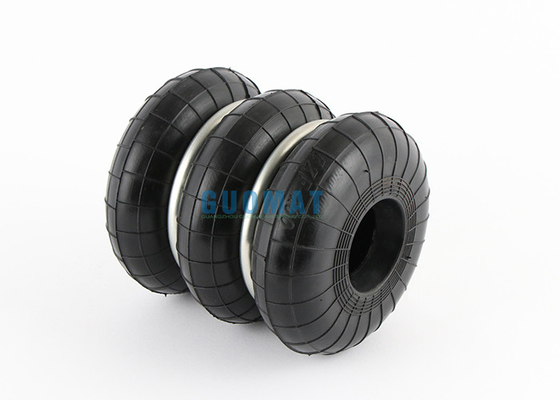

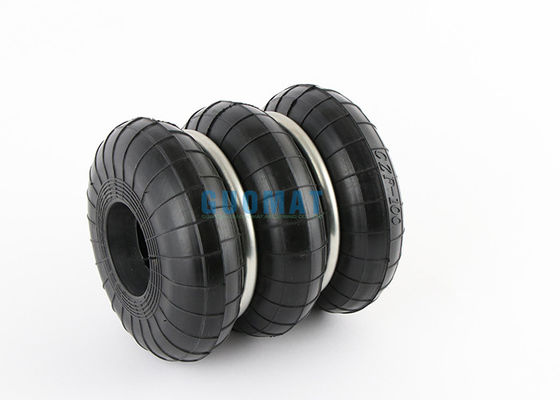

F-120-3 Rubber Air Spring S-120-3R Triple Convoluted Air Bags Design High 152mm
Introduction of F-type self-sealing air spring (for punching equipment):
Self-sealing is named for its self-sealing without external force. As shown in the figure, the rubber curved bladder:
① which is reinforced with a fiber layer is embedded with a steel (galvanized) waist ring
② that prevents expansion when in use.
③The traveler at the end of the cover plate is Under the action of pressure, the rubber mouth is deformed and in close contact with the upper and lower cover plates (galvanized)
④, thereby preventing air leakage. The upper and lower cover plates are formed by machining.
⑤ is the pipe thread intake hole for installing the intake pipe, and
⑥ is the installation standard threaded holes used.
Punch air springs are different from other types of air springs.
The punch air spring is more complex and strict in the manufacturing process; the force of the punch air spring is also different, so the bag of the punch air spring is thicker and resistant to impact.
GUOMAT F-120-3 Cross other OEM:
GUOMAT Part NO.: F-120-3
GUOMAT Bellows NO.: 120-3
Yokohama Part NO.: S-120-3R
Yokohama Part NO.: S-120-3
Yokohama Part NO.: S120-3R
Yokohama Part NO.: S120-3
F-120-3 items Detailed Parameter Table:
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) | ||
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) | ||||
| F-120-3 | S-120-3 | 152 | 227 | 82 | ±53 | 180 |
| GUOMAT NO. | Reference No. | Standard Height,Internal Pressure 0.49 M pa When The General Value | Using Maximum Internal Pressure (M pa) | Internal Pressure (M pa) | ||||
| Effective Area (Cm2) | Volume(L) | Load (K n) | Dynamic Spring Parameters (N/Min) | Vibration Frequency (Hz) | ||||
| F-120-3 | S-120-3 | 113 | 2.1 | 5.2 | 98 | 2.2 | 0.88 | 2.9-3.9 |
