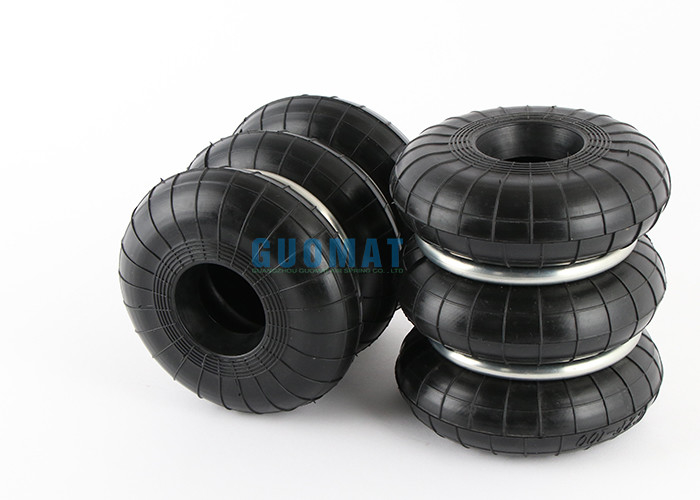

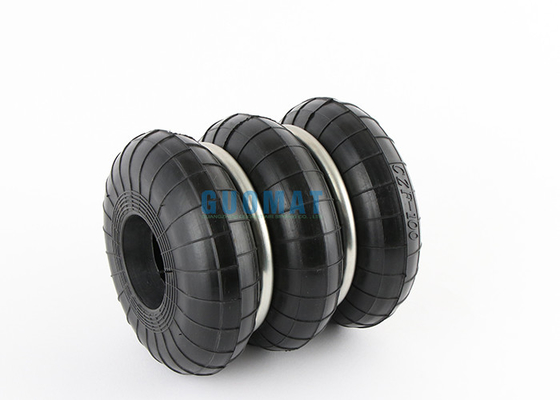

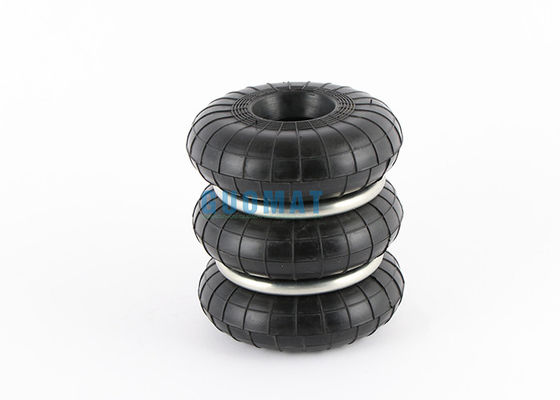

Guomat F-160-3 Press Rubber Triple Convolution Air Spring S-160-3R For CNC Punch Mahine

Guomat F-160-3 Press Rubber Triple Convolution Air Spring S-160-3R For CNC Punch Mahine

  • Guomat F-160-3 Press Rubber Triple Convolution Air Spring S-160-3R For CNC Punch Mahine
  • Guomat F-160-3 Press Rubber Triple Convolution Air Spring S-160-3R For CNC Punch Mahine
  • Guomat F-160-3 Press Rubber Triple Convolution Air Spring S-160-3R For CNC Punch Mahine
Guomat F-160-3 Press Rubber Triple Convolution Air Spring S-160-3R For CNC Punch Mahine
Product Details:
Place of Origin: Guangdong,China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: F-160-3
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union,paypal or others
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Rubber Or Stainless Steel Yokohama: S-160-3R
GUOMAT: F-160-3 Layer Number: 3 Convolutions,
Using Maximum Internal Pressure: 0.88 Mpa Vibration Frequency: 2.5 Hz
Net Weight: 2.6 KG Gross Weight: 3.5 KG
Package Size: 170mm*220mm*220mm Commonly Maximum Stroke: ±53mm
High Light:

Rubber Triple Convolution Air Spring

,

Guomat F-160-3 Convolution Air Spring

,

CNC Punch Mahine Rubber Air Spring

GUOMAT F-160-3 Press Rubber Triple Convolution Air Spring S-160-3R For CNC Punch Mahine





GUOMAT F-160-3 Cross other OEM:



GUOMAT Part NO.: F-160-3

GUOMAT Bellows NO.: 160-3

Yokohama Part NO.: S-160-3R

Yokohama Part NO.: S-160-3

Yokohama Part NO.: S160-3R

Yokohama Part NO.: S160-3





Net Weight:2.655 KG



Gross Weight:3.5 KG



Package Size:170mm*220mm*220mm





S-160 items Detailed Parameter Table:



GUOMAT NO. Reference No. Hight H(mm) Commonly Maximum Stroke(mm) The Largest Diameter When Compressed(mm)
Design High(mm) Maximum High(mm) Minimum Height(mm)

F-160-3 S-160-3 152 227 82 ±53 220




GUOMAT NO. Reference No. Standard Height,Internal Pressure 0.49 M pa When The General Value Using Maximum Internal Pressure (M pa) Internal Pressure (M pa)
Effective Area (Cm2) Volume(L) Load (K n) Dynamic Spring Parameters (N/Min) Vibration Frequency (Hz)

F-160-3 S-160-3 200 3.4 9.8 157 2 0.88 2.9-3.9






S-160-3R air spring fits below items



presses, punches, mechanical punches, pneumatic punches, hydraulic punches, high-speed mechanical punches, high-frequency punches, CNC punches, general mechanical punches, manual punches, screw punches, rack punches, connecting rod punches





Characteristics of GUOMAT Z type air springs:



1. Long service life, self-sealing type has excellent durability due to less rubber deformation during expansion and contraction.

exist

2. The maintenance is very simple, there is no friction sliding part, so there is no need to add lubricating oil.

ONLIN

3. The installation height can be reduced. Compared with other springs, the installation height can be reduced and the stroke can be effectively increased.

C

4. The elastic and soft spring parameters can be obtained, the load is large and the elasticity is soft, and the anti-vibration performance is excellent.

5. The output of bearing capacity is variable, and the bearing capacity can be changed in a wide range by changing the internal pressure.

C

6. The height can be controlled, if used together with the height adjustment valve, it can maintain a constant height for different loads.

7. It has a damping effect. If it is used together with an auxiliary air chamber and a throttle valve, an excellent damping effect can be obtained, thereby reducing the resonance amplitude.

8. Easy to install, simple structure, easy to install and dismantle.
