| Place of Origin: | China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B8-560 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Steel | Goodyear: | 1B8-560 |
|---|---|---|---|
| Warranty: | One Year | Weight: | 2.15 Kg |
| Other Names: | Air Spring Lift | Pressure Ability: | 0.2-0.8 M Pa |
| Bellow No.: | 579-913-532 | Flexmember: | 579913532 |
| High Light: | 0.8MPa Goodyear Air Spring,579-913-532 Goodyear Air Spring,Rust Resistant Goodyear Air Spring |
||

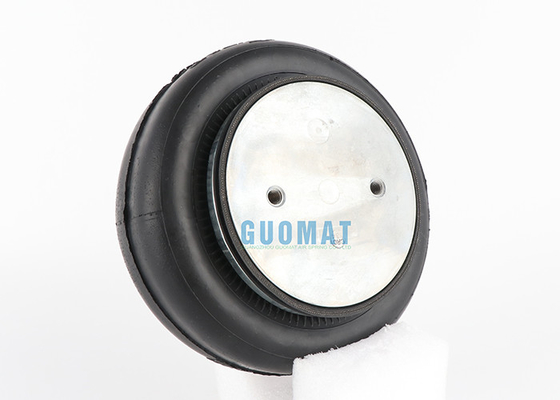

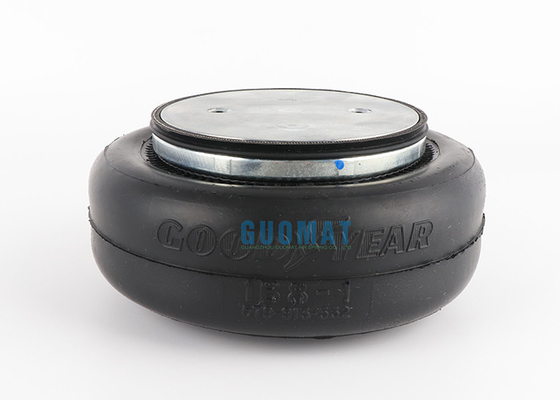

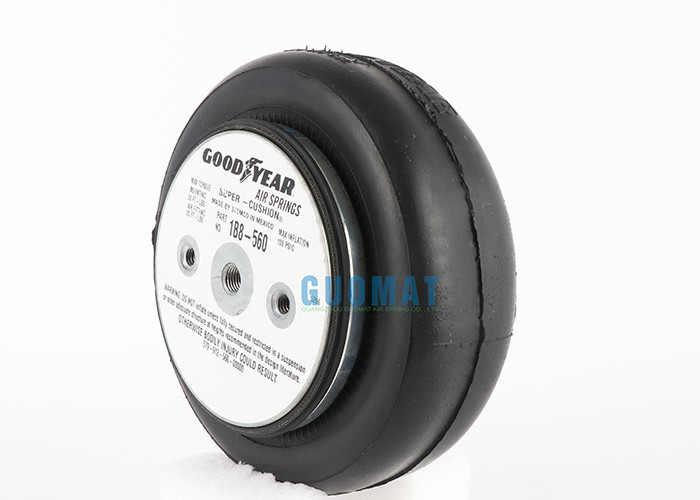

Goodyear Air Spring Flexmember 579-913-532 Complete 1B8-560 With Aluminum Plate Rust Resistant
The OEM NUMBER OF AIR SPRING:
Goodyear Part Number:1B8-560
Goodyear Part Number:1B8 560
Goodyear Part Number:1B8560
Goodyear Bellows Number:579-91-3-532
Goodyear Bellows Number:579 91 3 532
Goodyear Bellows Number:579913532
Goodyear Flexmember:579-913-532
Goodyear Flexmember:579 913 532
Goodyear Flexmember:579913532
SUPER-CUSHION® AIR SPRING ISOLATORS 1B8-560
Goodyear Part Number:1B8-157,
Goodyear Part Number:1B8-159,
Goodyear Part Number:1B8-560,
Goodyear Part Number:1B8-563
Goodyear Part Number:1B8-562
Goodyear Part Number:1B8-564
refet to Firestone Wo1-358-7598; 116B1116B-1
refet to Firestone W01-358-7598, W013587598, W01-358-7598,
refet to Contitech FS 120-12 CI 1/4 NPT
Goodyear 1B8-560 Specifications and Technical Data in Metric
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 70 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 70 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Screw Center Distance Between Gas Hole and Nut : 35 mm
❸ Cover Plate
Top Cover Plate Diameter: 135 mm
Bottom Cover Plate Diameter: 135 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 240 mm
Rubber Bellows Natural Diameter : 225 mm
The Working Stroke : MIN 60 mm to MAX 180 mm
Maximum Height : 180 mm
Minimum Height :50 mm
Stroke Height : 120mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :no One Pieces of Girdle Hoop
Goodyear 1B8-560 Specifications and Technical Data in Inch:
Airmount / Airstroke
(2) 2.75 center distance
3 / 8-16UNC, 1/4 "NPT AIR INLET
Air Springs from ITT Enidine Inc.
Single Convolute Bellow Air Spring YI-1B8-560
Maximum stroke: 3.20 inches
System natural frequency: 2.33 Hz
Height range: 4 to 6-1 / 2 inches
100 psi diameter: 9.4 inches
Spring style: single-turn curved surface type
End plate diameter: 5 inches
Force at 100 psi maximum stroke: 1600 lbs
Center distance between tapped holes: 2-3 / 4 inches
Load range at 100 psi: 1900 to 3300 pounds
Air port thread standard: UNC
Bumper Type: No
Air port thread diameter: 1/4 inch
Air port thread type: 1/4 UNC
| Part Number | Usable Stroke | Max Dia @ 100 psi In | Min Ext Height Inches | Max Ext Height Inches | Bumper | 100 psi | 80 psi | 60 psi | 40 psi | Air Fitting Size (in) |
| 1B5-500 | 2.0 | 5.7 | 1.8 | 3.8 | NO | 570 | 425 | 290 | 175 | 1/4 |
| 1B5-502 | 2.0 | 5.7 | 1.8 | 3.8 | NO | 570 | 425 | 290 | 175 | 3/4 |
| 1B5-503 | 2.0 | 5.7 | 1.8 | 3.8 | NO | 570 | 425 | 290 | 175 | 1/4 TV |
| IB5-510 | 3.0 | 6.0 | 1.8 | 4.8 | NO | 530 | 390 | 260 | 145 | 1/4 |
| IB5-512 | 3.0 | 6.0 | 1.8 | 4.8 | NO | 530 | 390 | 260 | 145 | 3/4 |
| 1B5-520 | 4.0 | 6.5 | 1.8 | 5.8 | NO | 445 | 305 | 180 | 80 | 1/4 |
| 1B5-521 | 4.0 | 6.5 | 1.8 | 5.8 | NO | 445 | 305 | 180 | 80 | 3/4 |
| 1B6-530 | 3.0 | 6.5 | 1.8 | 4.8 | NO | 880 | 635 | 440 | 235 | 1/4 |
| 1B6-531 | 3.0 | 6.5 | 1.8 | 4.8 | NO | 880 | 635 | 440 | 235 | 1/4 OS |
| 1B6-532 | 2.5 | 6.5 | 2.3 | 4.8 | YES | 880 | 635 | 440 | 235 | 1/4 OS |
| 1B6-535 | 5.3 | 7.0 | 1.8 | 7.1 | NO | 780 | 510 | 320 | 165 | 1/4 |
| 1B6-536 | 5.3 | 7.0 | 1.8 | 7.1 | NO | 780 | 510 | 320 | 165 | 1/4OS |
| 1B6-538 | 4.8 | 7.0 | 2.3 | 7.1 | YES | 780 | 510 | 320 | 165 | 1/4 OS |
| 1B7-540 | 3.8 | 7.7 | 1.8 | 5.6 | NO | 445 | 290 | 130 | 30 | 1/4 |
| 1B7-541 | 3.8 | 7.7 | 1.8 | 5.6 | NO | 445 | 290 | 130 | 30 | 1/4 OS |
| 1B7-542 | 3.3 | 7.7 | 2.3 | 5.6 | YES | 445 | 290 | 130 | 30 | 1/4 OS |
| 1B8-550 | 3.8 | 8.7 | 1.8 | 5.6 | NO | 815 | 525 | 315 | 110 | 1/4 |
| 1B8-551 | 3.8 | 8.7 | 1.8 | 5.6 | NO | 815 | 525 | 315 | 110 | 1/2 |
| 1B8-552 | 3.8 | 8.7 | 1.8 | 5.6 | NO | 815 | 525 | 315 | 110 | 3/4 |
| 1B8-553 | 3.8 | 8.7 | 1.8 | 5.6 | NO | 815 | 525 | 315 | 110 | 1/4 OS |
| 1B8-554 | 3.3 | 8.7 | 2.3 | 5.6 | YES | 815 | 525 | 315 | 110 | 1/4 OS |
| 1B8-560 | 5.5 | 9.4 | 1.8 | 7.3 | NO | 1105 | 750 | 750 | 130 | 1/4 |
| 1B8-562 | 5.5 | 9.4 | 1.8 | 7.3 | NO | 1105 | 750 | 750 | 130 | 3/4 |
| 1B8-563 | 5.5 | 9.4 | 1.8 | 7.3 | NO | 1105 | 750 | 750 | 130 | 1/4 OS |
| 1B8-564 | 5.0 | 9.4 | 2.3 | 7.3 | YES | 1105 | 750 | 750 | 130 | 1/4 OS |
| 1B9-201 | 2.7 | 11.0 | 3.2 | 5.9 | YES | 1575 | 1215 | 875 | 560 | 1/4 OS |
| 1B9-202 | 3.6 | 11.0 | 2.3 | 5.9 | N0 | 1575 | 1215 | 875 | 560 | 1/4 OS |
| 1B9-204 | 3.6 | 11.0 | 2.3 | 5.9 | N0 | 1575 | 1215 | 875 | 560 | 1/2 OS |
| 1B9-205 | 2.7 | 11.0 | 3.2 | 5.9 | YES | 1575 | 1215 | 875 | 560 | 1/2 OS |
| 1B9-207 | 3.6 | 11.0 | 2.3 | 5.9 | N0 | 1575 | 1215 | 875 | 560 | 3/4 OS |
| 1B9-208 | 2.7 | 11.0 | 3.2 | 5.9 | YES | 1575 | 1215 | 875 | 560 | 3/4 OS |
| 1B12-301 | 13.2 | 4.6 | 2.6 | 7.2 | YES | 3640 | 2710 | 1840 | 1095 | 1/4 OS |
| 1B12-30 | 13.2 | 4.9 | 2.3 | 7.2 | NO | 3640 | 2710 | 1840 | 1095 | 3/4 OS |
