| Place of Origin: | China |
| Brand Name: | Goodyear |
| Certification: | ISO/TS16949:2009 |
| Model Number: | 1B8-850 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | strong carton box or as customers need |
| Delivery Time: | 2-8 work days |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Supply Ability: | 1000pcs/week |
| Material: | Rubber Steel | Goodyear: | 1B8-850 |
|---|---|---|---|
| Warranty: | 12 Months | Weight: | 2.1 Kg |
| Other Name: | Industrial Air Actuator | Pressure Ability: | 0.2-0.8 M Pa |
| Screw: | 2pcsXM8 | Air Inlet: | G1/4 |
| High Light: | 1B8-850 Rubber Air Spring,579-913-530 Rubber Air Spring,OEM Goodyear Air Spring |
||

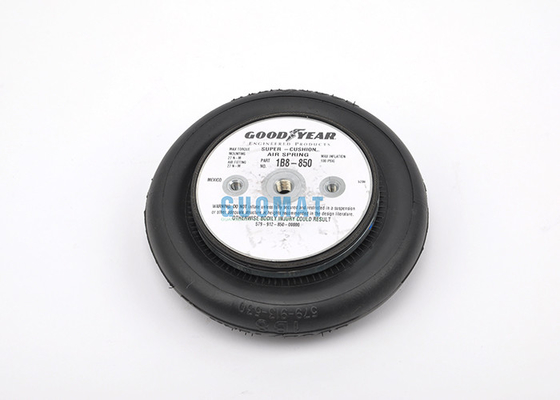

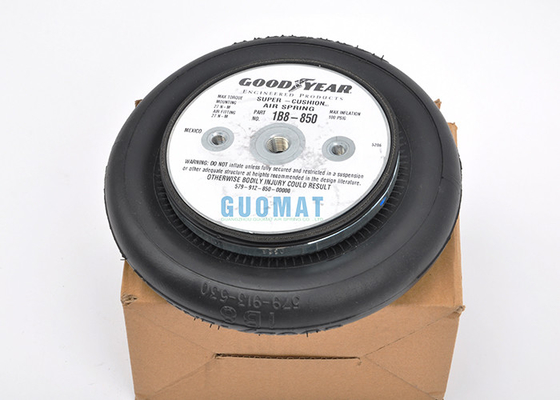

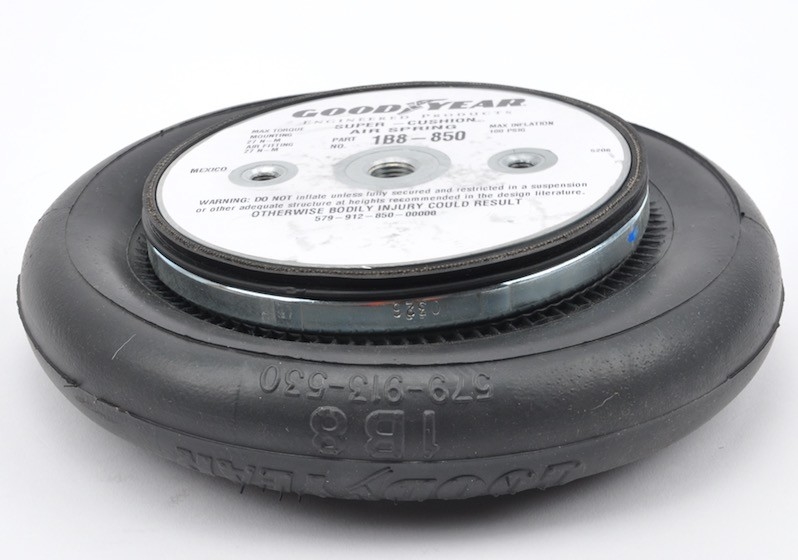

OEM Original Air Spring 1B8-850 Bellows 1B8 579-913-530 Goodyear Isolators
OEM Original Equipment Manufacturer:Goodyear 1B8-850
Goodyear Part Number:1B8-850
Goodyear Part Number:1B8 850
Goodyear Part Number:1B8850
Goodyear Bellows Number:579-91-3-530
Goodyear Bellows Number:579 91 3 530
Goodyear Bellows Number:579913530
Goodyear Flexmember:579-913-530
Goodyear Flexmember:579 913 530
Goodyear Flexmember:579913530
ASSEMBLY NUMBER
Goodyear Air Spring 1B8- 850 Made in Mexico 579-913-530 Made in Mexico
Goodyear original single vibration industrial air spring 1B8-850 air suspension system
Goodyear Complete NO.:1B8-550
Goodyear Complete NO.:1B8-552
Goodyear Complete NO.:1B8-553
Goodyear Complete NO.:1B8- 554
Goodyear Complete NO.:1B8 550
Goodyear Complete NO.:1B8 552
Goodyear Complete NO.:1B8 553
Goodyear Complete NO.:1B8 554
Cross Firestone OEM
Wo1-M58-6166 Firestone Metric Single Convolution Air Spring
Wo1-M58-6166, Wo1M586166, WO1-M58-6166, WO1M586166
Firestone actuator WO1-M58-6166, Metric 8 X 1.25 Dark Nut, 1/4 BSP
German brand airbag
ContiTech FS 120-10 CI G 1/4
ContiTech FS120-10 CI G 1/4
German ContiTech air spring
1B8-850 Goodyear Air Spring Single Airbag 579913530
Anliding air spring YI-1B8-850 YM-1B8-850 579 913 530
SUPER-CUSHION @ AIR SPRING ISOLATORS 1B8-850
ContiTech FS 120-10 CI G 1/4
ContiTech FS120-10 CI G 1/4
Goodyear 1B8-850 Product Description
Technical Data
Goodyear 1B8-850 PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES
| Force F [lbf] | |||||
| Pressure p [psi] | 40 | 60 | 80 | 100 | Vol. V [in.³] |
| H 4.50 in./114.3MM | 728 | 1130 | 1570 | 1970 | 110 |
| H 4.00 in./101.6MM | 905 | 1400 | 1940 | 2390 | 100 |
| H 3.50 in./88.9MM | 1050 | 1610 | 2240 | 2740 | 90 |
| H 3.00 in./76.2MM | 1170 | 1770 | 2450 | 3020 | 75 |
| H 2.50 in./63.5MM | 1270 | 1900 | 2630 | 3260 | 57 |
Goodyear 1B8-850 VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS
| Pressure p [psi] | 40 | 60 | 80 | 100 | 120 | Vol. V [in.³] | |
| Force (load) F [lbf] | 801 | 1,240 | 1,700 | 2,130 | 2,530 | 110 | |
| Spring rate c [lbf/in] | 709 | 949 | 1,190 | 1,430 | 1,670 | 110 | |
| Natural Frequency f0 [Hz] | 2.9 | 2.8 | 2.7 | 2.6 | 2.6 | 110 | |
| Design height H: recommended 4.33 inch, minimum 3.54 inch | |||||||
Goodyear 1B8-850 PURCHASE ORDER DATA
| Type | Air Inlet | Order No. | |
| with crimped plates |
3/4 NPT 0 in. excentrical |
75349 | |
| with crimped plates |
1/4 NPT 0 in. excentrical |
75360 | |
Goodyear 1B8-850 SERVICE INSTRUCTIONS
| Thread | max. Torque | |
| 3/8-16 UNC | 20 lbf ft | |
| 1/4 NPT | 20 lbf ft | |
| 3/4 NPT | 40 lbf ft | |
