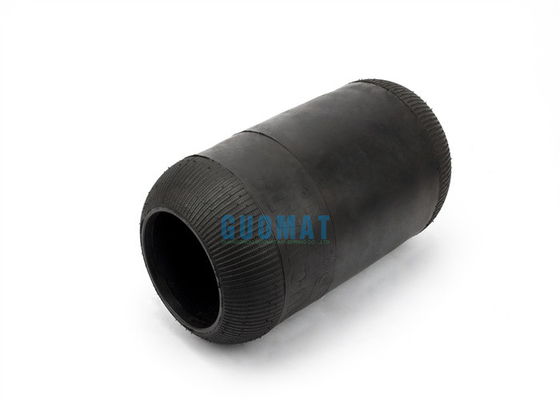

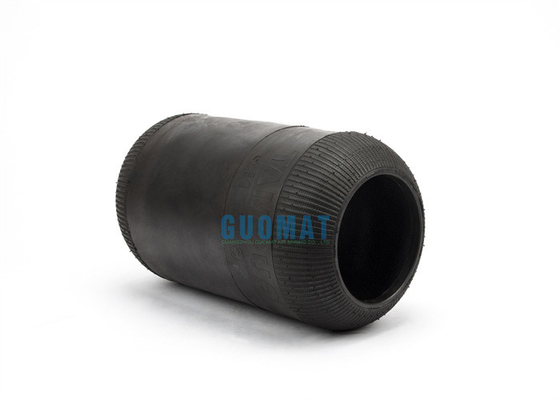

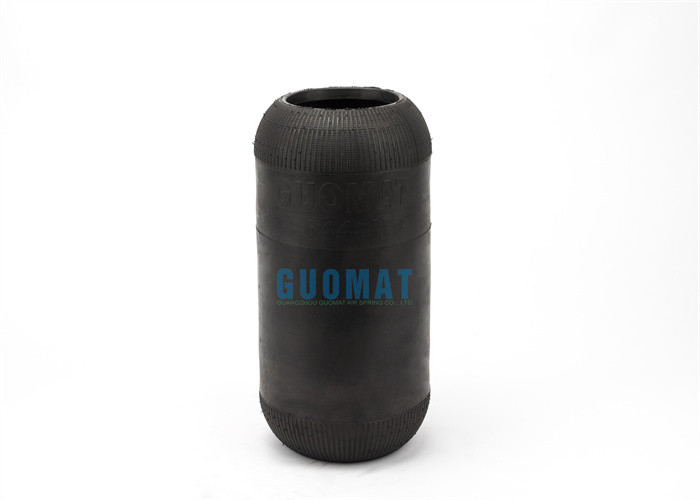

395Mm Bus Air Spring Firestone W010950118 Contitech 644N Bellow Air Shock Suspension

395Mm Bus Air Spring Firestone W010950118 Contitech 644N Bellow Air Shock Suspension

  • 395Mm Bus Air Spring Firestone W010950118 Contitech 644N Bellow Air Shock Suspension
  • 395Mm Bus Air Spring Firestone W010950118 Contitech 644N Bellow Air Shock Suspension
  • 395Mm Bus Air Spring Firestone W010950118 Contitech 644N Bellow Air Shock Suspension
  • 395Mm Bus Air Spring Firestone W010950118 Contitech 644N Bellow Air Shock Suspension
395Mm Bus Air Spring Firestone W010950118 Contitech 644N Bellow Air Shock Suspension
Product Details:
Place of Origin: GuangDong, China
Brand Name: GUOMAT
Certification: ISO/TS16949:2009
Model Number: 644
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $19-29/pc
Packaging Details: strong carton box or as customers need
Delivery Time: 2-8 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000pcs/week
Contact Now
Detailed Product Description
Material: Natural Rubber Position: Front Or Rear
Natural Outlet Diameter: 210Mm Height: 395Mm
Opening Diameter: 130.8Mm Warranty: 12 Months
Firestone: W010950118 Contitech: 644N
Highlight:

395Mm Truck Air Spring

,

W010950118 Truck Air Spring

,

Contitech 644N Truck Air Spring

Wholesale 395Mm Bus Air Spring Firestone W010950118 Contitech 644N Bellow Air Shock Suspension

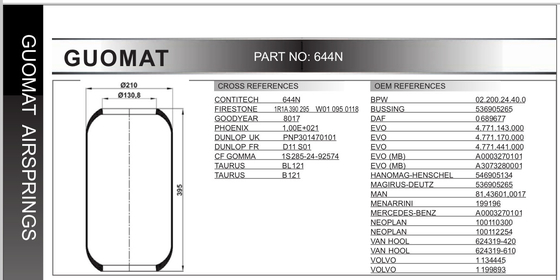

CROSS REFERENCES OEM REFERENCESCROSS REFERENCES OEM REFERENCES
CONTITECH 644NBPW 02.200.24.40.0
FIRESTONE 1R1A 390 295 W01 095 0118BUSSING 536905265
GOODYEAR 8017DAF 0 689677
PHOENIX 1,00E+021EVO 4.771.143.000
DUNLOP UK PNP301470101EVO 4.771.170.000
DUNLOP FR D11 S01EVO 4.771.441.000
CF GOMMA 1S285-24-92574EVO (MB) A0003270101
TAURUS BL121EVO (MB) A3073280001
TAURUS B121HANOMAG-HENSCHEL 546905134
　MAGIRUS-DEUTZ 536905265
　MAN 81,43601,0017
　MENARRINI 199196
　MERCEDES-BENZ A0003270101
　NEOPLAN 100110300
　NEOPLAN 100112254
　VAN HOOL 624319-420
　VAN HOOL 624319-610
　VOL-VO 1 134445
　VOL-VO 1 199893





644N Technical parameters



Minimum height / h min 155 mm



Maimum height / h ma 415 mm



Maimum diameter /d ma 300 mm



Required Space diameter / d R 325 mm



Natural height / h 275 mm



Nominal working pressure : 5.0-6.0bar


maximum working pressure : 7.0bar


space envelope diameter : 315mm


maximum height: 420mm


Assembly height: 170mm - 290mm


Minimum height: 160mm


Minimum burst pressure : 18bar


load capacity (7.0 bar): 2995kg



395Mm Bus Air Spring Firestone W010950118 Contitech 644N Bellow Air Shock Suspension 0



395Mm Bus Air Spring Firestone W010950118 Contitech 644N Bellow Air Shock Suspension 1

395Mm Bus Air Spring Firestone W010950118 Contitech 644N Bellow Air Shock Suspension 2



395Mm Bus Air Spring Firestone W010950118 Contitech 644N Bellow Air Shock Suspension 3
